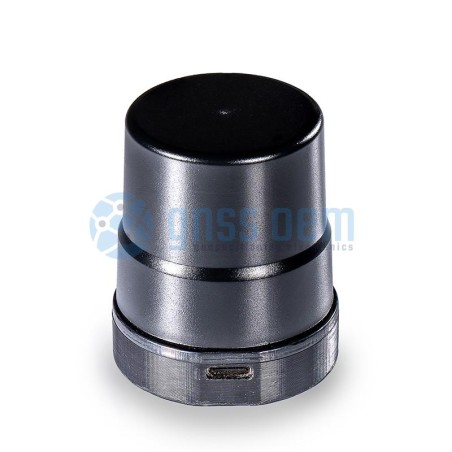

ZED-F9P GNSS smart antenna with USB C, SMA helix antenna in the IP54 BLACK plastic case.
  • ZED-F9P GNSS smart antenna with USB C, SMA helix antenna in the IP54 BLACK plastic case.
  • EAN-4751046551563 (ZED-F9P GNSS smart antenna with USB C, RFI protection, SMA helix antenna in the IP54)

ZED-F9P GNSS Smart Antenna module with USB-C, RFI protection and SMA Helix antenna. Black plastic case.

ELT0156

ZED-F9P GNSS smart antenna with USB C, RFI protection, SMA helix antenna in the IP54. Black plastic case.

VOLUME SALES PRICING

This product comes with 1 years worldwide warranty

Helix antenna
209.99 €
Tax excluded
Quantity

100% secure payments
Total Rating Total Rating:

0 1 2 3 4
0/5 - 0 reviews

View ratings
0 1 2 3 4 0
0 1 2 3 0 0
0 1 2 0 1 0
0 1 0 1 2 0
0 0 1 2 3 0

  Add Review View Reviews View Reviews
  Security policy

Security policy

  Delivery policy

Delivery policy

  Return policy

Return policy

Description

ZED-F9P four GNSS Smart Antenna module with USB C and SMA antenna connectors in IP54 black plastic case for your UAV systems, Robots, RC, FPV or other projects (With USB-C and white plastic case). Base or Rover operation. Multi-band receiver delivers centimeter-level accuracy in seconds. Ultra small and light. Designed to use together with recommended Helix antenna.

The ZED-F9P positioning module features the new u-blox F9 receiver platform, which provides multi-band GNSS to high volume industrial applications in a compact form factor. ZED-F9P is a multi-band GNSS module with integrated u-blox multi-band RTK technology for centimeter-level accuracy. The module enables precise navigation and automation of moving industrial machinery by means of a small, surface mounted module.

The ZED-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. ZED-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies.

ZED-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need. ZED-F9P comes with built-in support for standard RTCM corrections, supporting centimeter-level navigation from local base stations or from virtual reference stations (VRS) in a Network RTK setup. The module can be upgraded to support future SSR-type correction services suitable for mass market penetration.

ZED-F9P Smart Antenna module features:

  • On board low noise 3.3 V voltage regulator
  • 1 USB port
  • Time pulse LED, Power LED, RTK LED
  • Flash memory for firmware upgrade and settings inside in the module (can save settings without battery)
  • Supercapacitor for HOT module start
  • u-center ublox Evaluation Software
  • Dimensions: 45x12 mm
  • Weight: 18 gr.
  • Fully assembled, sealed and ready to use
  • Magnetic mount with waterproof 3M double sided tape
  • Waterproof 3M double sided tape for mounting

Receiver type:

  • 184-channel u-blox F9 engine
  • GPS L1C/A L2C, GLO L1OF L2OF,
  • GAL E1B/C E5b, BDS B1I B2I,
  • QZSS L1C/A L2C

Nav. update rate:

  • RTK up to 20 Hz

Position accuracy:

  • RTK 0.01 m + 1 ppm CEP
  • SPARTN Convergence time - <45sec

Convergence time:

  • RTK < 10 sec
  • Acquisition Cold starts 24 s
  • Aided starts 2 s
  • Reacquisition 2 s
  • SPARTN Horizontal pos. accuracy – 0.06m, vert -0.12m

Sensitivity:

  • Tracking & Nav –167
  • Cold starts –148 dBm
  • Hot starts –157 dBm
  • Reacquisition –160 dBm
  • AssistNow GNSS Online
  • OMA SUPL & 3GPP compliant
  • TCXO Oscillator
  • Built-In RTC crystal
  • Active CW detection and removal
  • Active and passive antennas Supported
  • Flash Memory

Board can be used for a Base or Rover operation mode!

This board sells without antenna or with selected Helix antenna!

ZED-F9P Product Summary

ZED-F9P Data Sheet

ZED-F9P Integration Manual

Product Details
ELT0156
20 Items
New

Specific References

EAN13
4751046551563
MPN
ELT0156
