ZED-F9P mPCIe socket RTK GNSS receiver with IPEX (U.FL) L1/L5
  • ZED-F9P mPCIe socket RTK GNSS receiver with IPEX (U.FL) L1/L5
  • ZED-F9P mPCIe socket RTK GNSS receiver with IPEX (U.FL) L1/L5

ZED-F9P mPCIe socket RTK GNSS receiver with IPEX (U.FL) Base or Rover

ELT0389

ZED-F9P High Precision mPCIe socket RTK GNSS receiver IPEX (U.FL) antenna connectors and IPEX (UF.L) time pulse connector. L1/L2 or L1/L5 options. Base or Rover operation.

VOLUME SALES PRICING

This product comes with 1 years worldwide warranty

GNSS module

Volume discounts

Quantity Unit discount You Save
10 10.00 € Up to 100.00 €
25 20.00 € Up to 500.00 €
500 30.00 € Up to 15,000.00 €
189.99 €
Tax excluded
Quantity

100% secure payments
Total Rating Total Rating:

0 1 2 3 4
0/5 - 0 reviews

View ratings
0 1 2 3 4 0
0 1 2 3 0 0
0 1 2 0 1 0
0 1 0 1 2 0
0 0 1 2 3 0

  Add Review View Reviews View Reviews
  Security policy

Security policy

  Delivery policy

Delivery policy

  Return policy

Return policy

Description

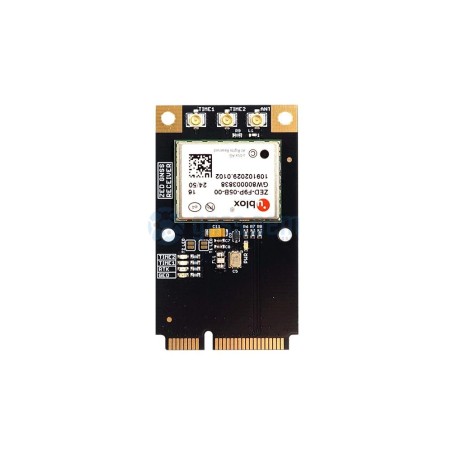

ZED-F9P mPCIe socket High Precision RTK GNSS receiver with IPEX (U.FL) antenna connectors and  IPEX (U.FL) time pulse out connector. L1/L2 or L1/L5 options. Base or Rover operation. Multi-band receiver delivers centimeter-level accuracy in seconds. Designed for easy integration in your system or robots.

The ZED-F9P positioning module features the new u-blox F9receiver platform, which provides multi-band GNSS to high volume industrial applications in a compact form factor. ZED-F9P is a multi-band GNSS module with integrated u-blox multi-band RTK technology for centimeter-level accuracy. The module enables precise navigation and automation of moving industrial machinery by means of a small, surface mounted module.

Two module options offered - with L1/L2 bands (ZED-F9P) and with L1/L5 bands (ZED-F9P-15B). L1/L5 option will work better in urban canyon and similar complex environment. Read our blog article L2 or L5? for more details. Please note, using L5 band require special configuration

The ZED-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. ZED-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies.

ZED-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need. ZED-F9P comes with built-in support for standard RTCM corrections, supporting centimeter-level navigation from local base stations or from virtual reference stations (VRS) in a Network RTK setup. The module can be upgraded to support future SSR-type correction services suitable for mass market penetration.

ZED-F9P High Precision mPCIe socket GNSS RTK receiver features:

  • Full size mini PCI express compatible
  • IPEX (U.FL) edge antenna connectors
  • IPEX (U.FL) edge time pulse connectors
  • On-board Power filter
  • u-center ublox Evaluation Software
  • Extensive visualization and evaluation features
  • Time pulse LED, GEO LED, RTK LED
  • Backup supercapacitor
  • Weight: 5.5 gr.
  • Fully assembled and ready to use

Board can be used for a Base or Rover operation mode!

ZED-F9P Features:

Receiver type:

  • 184-channel u-blox F9 engine
  • GPS L1C/A, GLO L1OF, GAL E1B/C, BDS B1I, QZSS L1C/A L1S L5, SBAS L1C/A
  • ZED-F9P-0xB:  GPS L2C, GLO L2OF, GAL E5b, BDS B2I, QZSS L2C
  • ZED-F9P-1xB:  GPS L5, GAL E5a, BDS B2a, NavIC L5

Nav. update rate:

  • RTK up to 20 Hz1

Position accuracy:

  • RTK 0.01 m + 1 ppm CEP
  • SPARTN Horizontal pos. accuracy – 0.06m, vert -0.12m

Convergence time:

  • RTK < 10 sec
  • Acquisition Cold starts 24 s.
  • Aided starts 2 s.
  • Reacquisition 2 s.
  • SPARTN Convergence time - <45sec

Sensitivity:

  • Tracking & Nav –167
  • Cold starts –148 dBm
  • Hot starts –157 dBm
  • Reacquisition –160 dBm
  • AssistNow GNSS Online
  • OMA SUPL & 3GPP compliant
  • TCXO Oscillator
  • Built-In RTC crystal
  • Active CW detection and removal
  • Active and passive antennas Supported
  • Flash Memory

Product Details
ELT0389
500 Items
New

Specific References

EAN13
4751046553895
MPN
ELT0389
