ZED-F9P High Precision GNSS receiver module with USB, I2C, UART, SPI interfaces and Multi Band L1, L2 antenna. Base or Rover operation. Multi-band receiver delivers centimeter-level accuracy in seconds. Build-in EMI protection and LIS3MDL Magnetometer.
The ZED-F9P positioning module features the new u-blox F9receiver platform, which provides multi-band GNSS to high volume industrial applications in a compact form factor. ZED-F9P is a multi-band GNSS module with integrated u-blox multi-band RTK technology for centimeter-level accuracy. The module enables precise navigation and automation of moving industrial machinery by means of a small, surface mounted module.
The ZED-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. ZED-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies.
ZED-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need. ZED-F9P comes with built-in support for standard RTCM corrections, supporting centimeter-level navigation from local base stations or from virtual reference stations (VRS) in a Network RTK setup. The module can be upgraded to support future SSR-type correction services suitable for mass market penetration.

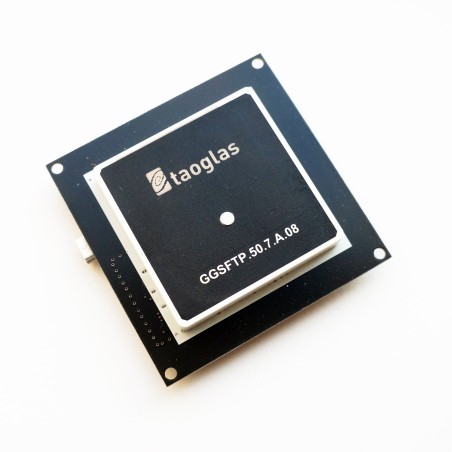

ZED-F9P receiver board features:
- On-board Ultra low noise 3.3V voltage regulator with noise 2nV/Hz
- USB, I2C (SDA, SCL), SPI and 2 UART (Tx, Rx) interface
- MultiBand L1, L2 antenna
- LIS3MDL I2C magnetometer
- u-center u-blox Evaluation Software
- Extensive visualization and evaluation features
- Time pulse LED, GEO LED, RTK LED
- Backup supercapacitor
- Dimensions: 70x70 mm
- Weight: 56 gr.
- Fully assembled and ready to use
- 12 JST SH connector and 4 pin JST for LIS3MDL magnetometr
- EMI protection
ZED-F9P Features:
Receiver type:
- 184-channel u-blox F9 engine
- GPS L1C/A L2C,
- GLO L1OF L2OF,
- GAL E1B/C E5b,
- BDS B1I B2I,
- QZSS L1C/A L2C
Nav. update rate:
Position accuracy:
- RTK 0.01 m + 1 ppm CEP
- SPARTN Horizontal pos. accuracy – 0.06m, vert -0.12m
Convergence time:
- RTK <10 sec
- SPARTN Convergence time - <45sec
- Aided starts 2 s
- Reacquisition 2 s
Sensitivity:
- Tracking & Nav –167
- Cold starts –148 dBm
- Hot starts –157 dBm
- Reacquisition –160 dBm
- AssistNow GNSS Online
- OMA SUPL & 3GPP compliant
- TCXO Oscillator
- Built-In RTC crystal
- Active CW detection and removal
- Active and passive antennas Supported
- Flash Memory
Board can be used for a Base or Rover operation mode!
