GPS, GLONASS, BDS, Galileo 35dB D43xH40 RTK antenna
  • GPS, GLONASS, BDS, Galileo 35dB D43xH40 RTK antenna
  • GPS, GLONASS, BDS, Galileo 35dB D43xH40 mm RTK antenna
  • GPS, GLONASS, BDS, Galileo 35dB D43xH40 mm RTK antenna

GPS, GLONASS, BDS, Galileo 33dB D43xH40 RTK antenna

ELT0170

Active Multiband GNSS MultiPatch Antenna with Excellent out-of-band rejection with magnet mount

VOLUME SALES PRICING

This product comes with 1 years worldwide warranty

149.99 €
Tax excluded
Quantity

100% secure payments
Total Rating Total Rating:

0 1 2 3 4
0/5 - 0 reviews

View ratings
0 1 2 3 4 0
0 1 2 3 0 0
0 1 2 0 1 0
0 1 0 1 2 0
0 0 1 2 3 0

  Add Review View Reviews View Reviews
  Security policy

Security policy

  Delivery policy

Delivery policy

  Return policy

Return policy

Description

35dB RTK antenna

Ideal for precision positioning and RTK surveying systems, this antenna provides excellent circular polarized signal reception, great multi-path and out-of-band signal rejection. The Antenna features a precision tuned, four star full frequency helical antenna. The signals from the helical antenna combined in a hybrid combiner, amplified in a wide-band Low Noise Amplifier, then band-split for narrow filtering in each band and further amplified prior to recombination at the output. The Antenna offers excellent axial ratio and a tightly grouped phase center variation. The Antenna is housed IP67 in screw mount industrial grade weather-proof enclosure, SMA connector.

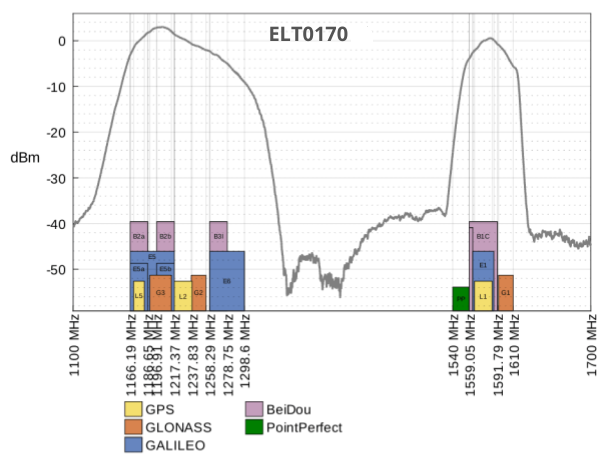

Bands Covered:

  • GPS (L1/L2/L5)
  • GLONASS (G1/G2/G3)
  • BeiDou (B1I/B1C/B2a/B2I/B2b/B3I)
  • GALILEO (E1/E5a/E5b)
  • QZSS (L1/L2/L5/L6)
  • IRNS (L5)
  • SBAS (L1/L5)
  • Dimensions: Ø43.5 x 40.8 mm
  • Weight: 29 gr.
  • RoHS & Reach Compliant

35dB RTK antenna features:

  • Low Noise Amplifier (LNA)
  • Axial ratio: ≤ 3 dB typ.
  • Tight Phase Center Variation (PCV)
  • High Gain: 33 dB typ.
  • Low current: 55 mA typ.
  • Invariant performance from: +3.3 to 5VDC
  • Antenna with SMA connector
  • Antenna with screw mount

Typical Applications Include:

  • Autonomous Driving
  • Precision Positioning for Robotics
  • Precision Agriculture
  • Inventory Management & Container tracking
  • Telematics & Asset Tracking
  • Timing Accuracy Synchronization

This MultiBand antenna is the latest addition to an ongoing product road map of high precision antennas. For RTK applications when used on the base and/or the rover, the MultiBand antenna can achieve genuine cm-level accuracy.

Product Details
ELT0170
4751046551709
ELT0170
74 Items
New
