ZED-F9P High Precision GNSS receiver EVAL module USB type C, I2C, UART, SPI with SMA antenna connectors. L1/L2 or L1/L5 options. Base or Rover operation. Multi-band receiver delivers centimeter-level accuracy in seconds.
PIN to PIN compatible with ELT0087
The u-blox F9 receiver platform incorporated in the ZED-F9P positioning module brings advanced multi-band GNSS capabilities to industrial applications. This compact module ensures centimeter-level accuracy through its integration of u-blox multi-band RTK technology. With its small form factor, the ZED-F9P module is ideal for enabling precise navigation and automation in the movement of industrial machinery. Two module options are available: ZED-F9P, which supports L1/L2 bands, and ZED-F9P-15B, which supports L1/L5 bands. The L1/L5 option is particularly effective in complex environments such as urban canyons. To learn more about choosing between L2 and L5 bands, you can read our blog article. Please note that using the L5 band requires special configuration.
Designed for easy integration and cost-effectiveness, the ZED-F9P module offers a minimal e-BOM and is suitable for mass market adoption. It stands out with its small package size, light weight, and low power consumption. To ensure the security of positioning and navigation information, the ZED-F9P module implements secure interfaces and employs advanced jamming and spoofing detection technologies.
Supporting a variety of correction services, the ZED-F9P module allows applications to optimize performance according to their specific needs. It comes with built-in support for standard RTCM corrections, enabling centimeter-level navigation using local base stations or virtual reference stations (VRS) in a Network RTK setup. Additionally, the module can be upgraded to support future correction services, such as SSR-type corrections, which are suitable for broader market adoption.

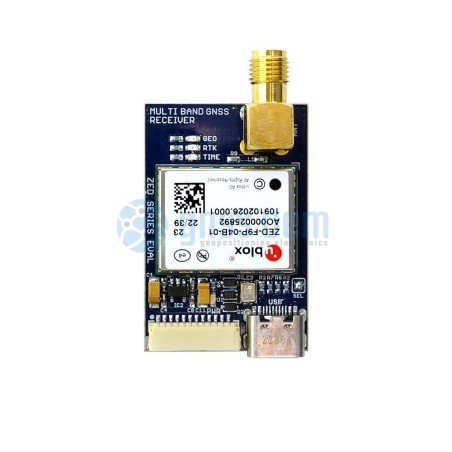

ZED-F9P breakout board features:
- On-board Ultra low noise 3.3V voltage regulator with noise 2nV/Hz
- USB type C, I2C (SDA ,SCL), SPI and 2 UART (Tx, Rx) interface
- SMA antenna connectors
- u-center ublox Evaluation Software
- Extensive visualization and evaluation features
- Time pulse LED, GEO LED, RTK LED
- Backup supercapacitor
- Dimensions: 38x22 mm
- Weight: 9 gr.
- Fully assembled and ready to use
- 12 JST SH connector
ZED-F9P Features:
Receiver type:
- 184-channel u-blox F9 engine
- GPS L1C/A, GLO L1OF, GAL E1B/C, BDS B1I, QZSS L1C/A L1S L5, SBAS L1C/A
- ZED-F9P-0xB: GPS L2C, GLO L2OF, GAL E5b, BDS B2I, QZSS L2C
- ZED-F9P-1xB: GPS L5, GAL E5a, BDS B2a, NavIC L5
Nav. update rate:
Position accuracy:
- RTK 0.01 m + 1 ppm CEP
- SPARTN Horizontal pos. accuracy – 0.06m, vert -0.12m
Convergence time:
- RTK < 10 sec
- Acquisition Cold starts 24 s
- Aided starts 2 s
- Reacquisition 2 s
- SPARTN Convergence time - <45sec
Sensitivity:
- Tracking & Nav –167
- Cold starts –148 dBm
- Hot starts –157 dBm
- Reacquisition –160 dBm
AssistNow GNSS Online
- OMA SUPL & 3GPP compliant
- TCXO Oscillator
- Built-In RTC crystal
- Active CW detection and removal
- Active and passive antennas support
- Flash Memory
Board can be used for a Base or Rover operation mode!
