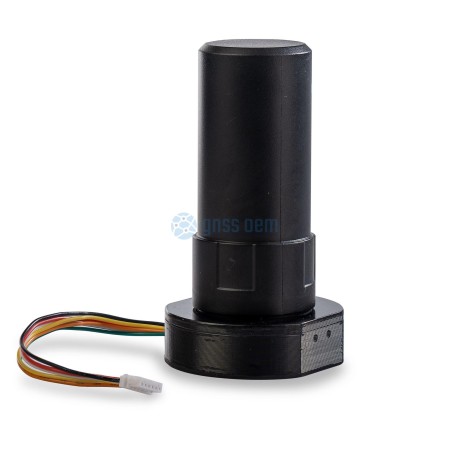

NEO-M9N four GNSS Smart Antenna module with UART/SPI and SMA antenna connectors in the black plastic case for your UAV systems, Robots, RC, FPV or other projects.
Ultra small and light. Designed to use together with recommended Helix antenna. The NEO-M9N Smart Antenna module makes evaluating the high performance of the u-blox 9 positioning engine simple. The NEO-M9N Smart Antenna module is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. It’s a fully assembled and tested module for the NEO-M9N with SMA antenna connectors.
NEO-M9N Smart Antenna module features:
- 92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F BeiDou B1I, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGANv
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator
- UART/SPI JST 6-pin connector and 10 cm cable included
- SMA antenna connector
- u-center GPS Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- 1 USB port pins on board
- Time pulse LED, Power LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Supercacacitor for HOT module start
- Dimensions: 40x12 mm
- Weight: 15 gr.
- Fully assembled and ready to use
- Magnetic mount with waterproof 3M double sided tape
- Waterproof 3M double sided tape for mounting
This board sells without antenna or with selected Helix antenna!
