NEO-M9N four GNSS receiver with EMI protection +LIS3MDL X serie
  • NEO-M9N four GNSS receiver with EMI protection +LIS3MDL X serie
  • NEO-M9N four GNSS receiver with EMI protection +LIS3MDL X serie
  • EAN-4751046551044 (NEO-M9N four GNSS receiver with EMI and RFI protection + LIS3MDL Magnetometer.)

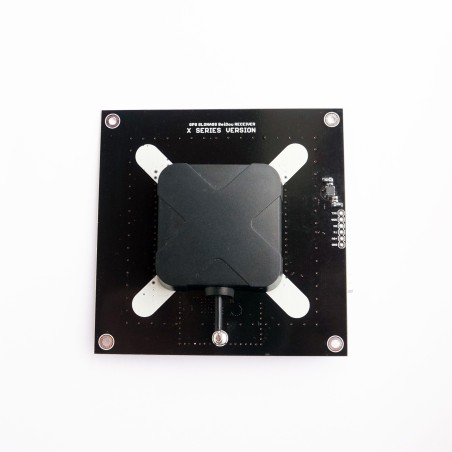

NEO-M9N four GNSS receiver with EMI and RFI protection + LIS3MDL X series

ELT0104

NEO-M9N four GNSS receiver with EMI and RFI protection + LIS3MDL Magnetometer. Double SAW and hign gain LNA X series version.

VOLUME SALES PRICING

This product comes with 1 years worldwide warranty

105.99 €
Tax excluded
Quantity

100% secure payments
Total Rating Total Rating:

0 1 2 3 4
0/5 - 0 reviews

View ratings
0 1 2 3 4 0
0 1 2 3 0 0
0 1 2 0 1 0
0 1 0 1 2 0
0 0 1 2 3 0

  Add Review View Reviews View Reviews
  Security policy

Security policy

  Delivery policy

Delivery policy

  Return policy

Return policy

Description

X series version NEO-M9N four GNSS PRO version receiver with double SAW and high gain LNA systems for high signal noise ratio build-in EMI protection and LIS3MDL Magnetometer. Ready for unwanted signal interference or multipath blocking. X series version very strong signal for good price.

This board designed for large scale drone or groud robots. Board have High Gain LNA with very low noise figure and SAW band pass filter, also include EMI and RFI protection and will be used with large current robots.

This boards ready for unwanted signal interference or multipath blocking. The NEO-M9N Evaluation board makes evaluating the high performance of the u-blox 9 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M9N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M9N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M9N with Compass

NEO-M9N breakout board features:

  • 92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F BeiDou B1I, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
  • SuperSense Indoor GPS, -167dBm
  • High Gain LNA systems with very low noise figure
  • Double Band Pass filter for noise rejection
  • On-board low noise 3.3V voltage regulator and RF filter for noise blocking
  • USB, I2C (SDA, SDL) (for LIS3MDL) and UART (Tx, Rx)
  • Triple band GPS, GLONASS, BeiDou antenna
  • u-center ublox Evaluation Software
  • LIS3MDL I2C magnetometer
  • Extensive visualization and evaluation features
  • Supports AssistNow Online and AssistNow Offline A-GPS services
  • Time pulse LED
  • Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
  • Supercapacitor for HOT module start
  • Dimensions: 100x100 mm; hole distance 90x90mm
  • Weight: 79 gr.
  • EMI and RFI protection
  • Ready for unwanted signal interference or multipath blocking
  • Fully assembled and ready to use

NEO-M9N Product Summary

NEO-M9N Data Sheet

NEO-M9N Integration Manual

u-blox M9 SPG 4.00 firmware

Product Details
ELT0104
4751046551044
ELT0104
82 Items
New
