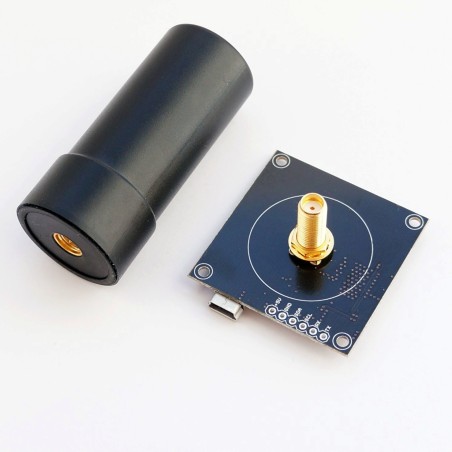

NEO-M9N four GNSS receiver board set with Helix Antenna

ELT0108

NEO-M9N four GNSS receiver EVAL module set with Helix antenna.

VOLUME SALES PRICING

This product comes with 1 years worldwide warranty

137.99 €
Tax excluded
Quantity

100% secure payments
Total Rating Total Rating:

0 1 2 3 4
0/5 - 0 reviews

View ratings
0 1 2 3 4 0
0 1 2 3 0 0
0 1 2 0 1 0
0 1 0 1 2 0
0 0 1 2 3 0

  Add Review View Reviews View Reviews
  Security policy

Security policy

  Delivery policy

Delivery policy

  Return policy

Return policy

Description

NEO-M9N four GNSS set with Helix Antenna for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light.

The NEO-M9N set makes evaluating the high performance of the u-blox 9 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M9N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M9N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M9N with Helix antenna.

NEO-M9N breakout board features:

  • 92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F BeiDou B1I, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGANv
  • SuperSense Indoor GPS, -167dBm
  • On-board low noise 3.3V voltage regulator
  • USB, I2C (SDA, SCL) and UART (Tx, Rx)
  • SMA antenna connectors.
  • u-center ublox Evaluation Software
  • Extensive visualization and evaluation features
  • Supports AssistNow Online and AssistNow Offline A-GPS services
  • Time pulse LED, Power LED
  • Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
  • Supercapacitor for HOT module start
  • Dimensions: 30x30 mm
  • Weight: 25 gr. with mounted antenna
  • Fully assembled and ready to use
  • Helix Antenna included

Helix Antenna Features:

  • Quadrifilar helix antenna
  • Concurrent GNSS reception on GPS, GLONASS, Galileo and Beidou
  • Rugged IP67 rating with SMA mount
  • Small form factor
  • Ground plane independent
  • GIS, RTK and other high accuracy GNSS applications
  • Low power consumption
  • Low phase center variation over azimuth and elevation and among different samples
  • Ultra-lightweight about 17-19 gramm
  • Dimension 55x25mm
  • Automotive grade electronics

NEO-M9N Product Summary

NEO-M9N Data Sheet

NEO-M9N Integration Manual

u-blox M9 SPG 4.00 firmware

Product Details
ELT0108
4751046551082
ELT0108
80 Items
New
