ZED-X20P M.2 socket RTK GNSS receiver
  • ZED-X20P M.2 socket RTK GNSS receiver
  • ZED-X20P M.2 socket RTK GNSS receiver

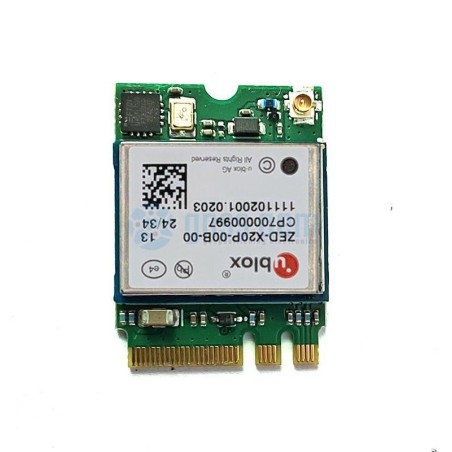

ZED-X20P M.2 socket RTK GNSS receiver

ELT0425

ZED-X20P M.2 socket All-constellation High Precision GNSS Receiver with IPEX antenna connector.

VOLUME SALES PRICING

This product comes with 1 years worldwide warranty

Volume discounts

Quantity Unit discount You Save
10 5% Up to 112.00 €
25 10% Up to 559.98 €
100 15% Up to 3,359.85 €
223.99 €
Tax excluded
Quantity
Orders will be shipped in May 2025

100% secure payments
Total Rating Total Rating:

0 1 2 3 4
0/5 - 0 reviews

View ratings
0 1 2 3 4 0
0 1 2 3 0 0
0 1 2 0 1 0
0 1 0 1 2 0
0 0 1 2 3 0

  Add Review View Reviews View Reviews
  Security policy

Security policy

  Delivery policy

Delivery policy

  Return policy

Return policy

Description

ZED-X20P M.2 socket All-Band all constellation GNSS receiver with IPEX (U.FL) antenna connector. Base or Rover operation. Multi-band receiver delivers centimeter-level accuracy in seconds. Designed for easy integration in your system or robots.

The ZED-X20P module integrates all-band GNSS with signal modernization and innovative positioning algorithms using Real-time Kinematics (RTK), PPP-RTK, and Precise Point Positioning* (PPP) technologies in a compact, energyefficient form factor. As the most reliable position sensor from the most trusted name in GNSS, ZED-X20P ensures unparalleled reliability and performance.

ZED-X20P concurrently processes signals from the GPS,  Galileo, BeiDou, QZSS, and NavIC constellations accross all GNSS bands, including L-band. The highest level of integration on a single-chip receiver enables new system architectures and creates value for industrial navigation and robotics markets in products such as unmanned autonomous vehicles (UAVs), guidance systems, and auto-steering applications. With its very high update rate, the ZED-X20P module is ideal for control applications, ensuring smooth and reliable operation. For advanced users, its pristine raw data features minimal cycle slips and exceptionally low noise in carrier range and pseudo-range measurements. ZED-X20P protects system integrity with multi-layered defenses, including a Root of Trust, jamming and spoofing detection, cryptographic authentication of navigation messages through Galileo OSNMA, and more. High-value, application-specific features such as moving baseline are also available.

ZED-X20P offers support for a range of correction services natively, striking the perfect balance between performance and data usage. It supports standard RTCM corrections for Virtual Reference Stations (VRS) in a Network RTK setup or a local base station setup. SPARTN-format SSR correction service broadcasts are also supported for mass-market applications, and direct reception of PPP global services simplifies deployments.

Board features:

  • M.2 2230 Key A+E compatible (Part of NGFF, Next Generation Form Factor)
  • Antenna input with IPEX connector
  • Only USB interface used
  • u-center ublox Evaluation Software
  • Extensive visualization and evaluation features
  • Backup supercapacitor
  • Dimensions 22x30 mm
  • Weight: 10 gr.
  • Fully assembled and ready to use

ZED-X20P Features:

Receiver type:

  • 672-channel u-blox X20 engine
  • GPS L1C/A, L2C, L5
  • GAL E1B/C, E5a, E6
  • BDS B1I, B1C, B2a, B3I
  • QZSS L1C/A, L1C/B*, L2C, L5, L6
  • NavIC L1*, L5
  • SBAS L1C/A

Nav. update rate:

  • RTK up to 25 Hz

Position accuracy:

  • RTK 0.01 m + 1 ppm CEP
  • PPP 0.10 m CEP

Convergence time:

  • RTK < 10 sec
  • PPP < 120 sec
  • Acquisition Cold starts 27 s.
  • Aided starts 2 s.
  • Reacquisition 2 s.

Sensitivity:

  • Tracking & Nav –167
  • Cold starts –148 dBm
  • Hot starts –157 dBm
  • Reacquisition –160 dBm
  • Assistance AssistNow Online
  • OMA SUPL & 3GPP compliant
  • TCXO Oscillator
  • Anti-jamming CW detection
  • Anti-spoofing Advanced anti-spoofing algorithms and OSNMA
  • Built-In RTC crystal
  • Flash Memory
  • Moving base For attitude sensing and heading applications
  • Active and passive antennas Supported
  • Flash Memory
