NEO-M8P RTK receiver Base or Rover EMI and RFI protection + LIS3MDL X series

X Series version NEO-M8P

NEO-M8P-2 Precise Point Positioning receiver X series version with SAW and high gain LNA systems for high signal noise ratio build-in EMI protection and LIS3MDL Magnetometer. Ready for RTK. Very strong signal for good price. Base or Rover operation

Board can be used for a Base or Rover operation mode! This board designed for large scale drone or groud robots. Board have high gain LNA with very low noise figure and SAW band pass filter, also include EMI and RFI protection and will be used with large current robots. The NEO-M8P modules combine the high performance u-blox M8 positioning engine with u-blox’s Real Time Kinematic (RTK) technology.

The NEO-M8P provides cm-level GNSS performance designed to meet the needs of unmanned vehicles and other machine control applications requiring accurate guidance. u-blox’s RTK technology introduces the concept of a “rover” (NEO-M8P-0) and a “base” (NEO-M8P-2) on the M8 platform for stunning cm-level accuracy in clear sky environments. The base module sends corrections via the RTCM protocol to the rover module via a communication link enabling the rover to output its position relative to the base at cm level accuracies.

The NEO-M8P is ideal for applications requiring vehicles to move faster and more accurately, operate more efficiently, and automatically return to base platforms. Such applications include UAV, unmanned vehicles (e.g. robotic lawn mowers), and Precision Agriculture guidance. The NEO-M8P modules enable the system integrator to access u-blox’s complete end-to-end RTK solution including the stationary “survey-in” functionality that is designed to reduce the setup time and increase the flexibility of the application. NEO-M8P modules are compatible with a wide range of communication technologies (Cellular, WiFi, BlueTooth, UHF) enabling the user to select the communication link best suited to their application. With u‑blox’s RTK technology, integration and software development efforts can be reduced, ensuring a minimal cost of ownership.

NEO-M8P-2 Highlights:

• Centimeter-level GNSS positioning for the mass market
• Integrated Real Time Kinematics (RTK) for fast time-to-market
• Small, light, and energy-efficient RTK module
• Complete and versatile solution due to base and rover variants
• World-leading GNSS positioning technology

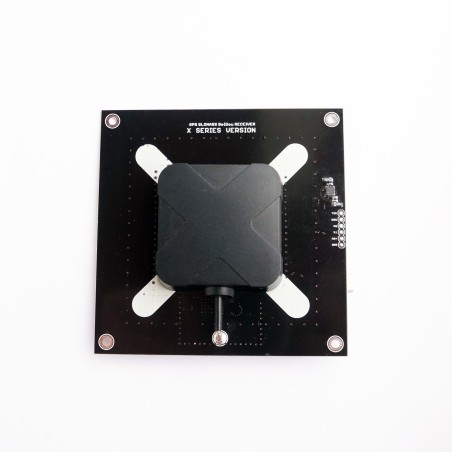

NEO-M8P-2 breakout board features:

• On-board low noise 3.3V voltage regulator
• USB, I2C (SDA,SCL) for magnetometer, UART (Tx, Rx) interface
• High Gain LNA systems with very low noise figure
• Double Band Pass filter for noise rejection
• LIS3MDL I2C magnetometer
• u-center ublox Evaluation Software
• Extensive visualization and evaluation features
• Time pulse LED, GEO LED, RTK LED
• Supercapacitor for HOT module start
• EMI and RFI protection
• Dimensions: 100x100 mm
• Weight: 79 gr.
• Fully assembled and ready to use

NEO-M8P-2 Features:

Receiver type: 72-channel u-blox M8 engine

• GPS L1 C/A,
• GLONASS L1OF,
• BeiDou B1I

Nav. update rate:

• RTK up to 8 Hz
• Carrier phase data up to 10 HzPosition accuracy:
• Standalone 2.5 m CEP
• RTK 0.025 m + 1 ppm CEP

Convergence time:

• RTK 2 min
• Acquisition Cold starts 26 s
• Aided starts 2 s
• Reacquisition 1 s

Sensitivity:

• Tracking & Nav –160 dBm 4
• Cold starts –148 dBm
• Hot starts –156 dBm
• Reacquisition –158 dBm
• AssistNow GNSS Online
• OMA SUPL & 3GPP compliant
• TCXO Oscillator
• On-chip LNA with extra LNA for lowest noise figure
• Active CW detection and removal
• Extra onboard SAW band pass filter
• Active and passive antennas Supported
• Flash Memory
• Survey-in base For generating sub-meter base station station positions

• NEO-M8P Product Summary
• NEO-M8P Data Sheet
• NEO-M8P Hardware Integration Manual
