NEO-F9P-15B USB C Multi-band L1,L5 RTK GNSS SMA antenna

ELT0302

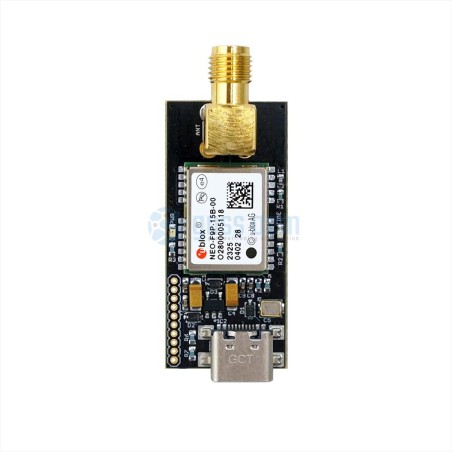

NEO-F9P-15B USB type C Multi-band L1,L5 RTK GNSS SMA antenna connector

VOLUME SALES PRICING

This product comes with 1 years worldwide warranty

Volume discounts

Quantity Unit discount You Save
11 5% Up to 107.24 €
25 10% Up to 487.48 €
100 15% Up to 2,924.85 €
194.99 €
Tax excluded
Quantity

100% secure payments
Total Rating Total Rating:

0 1 2 3 4
0/5 - 0 reviews

View ratings
0 1 2 3 4 0
0 1 2 3 0 0
0 1 2 0 1 0
0 1 0 1 2 0
0 0 1 2 3 0

  Add Review View Reviews View Reviews
  Security policy

Security policy

  Delivery policy

Delivery policy

  Return policy

Return policy

Description

NEO-F9P-15B USB Type C Multi-band L1,L5 RTK GNSS U.FL antenna connector, for your UDR systems, UAV systems, Robots, RC, FPV or other projects.

NEO-F9P High Precision GNSS breakout PCB with UF.L antenna connectors. Multi-band receiver delivers centimeter-level accuracy in seconds. The NEO-F9P positioning module features the new u-blox receiver platform, which provides multi-band GNSS to high volume industrial applications in a compact form factor. NEO-F9P is a multi-band GNSS module with integrated u-blox multi-band RTK technology for centimeter-level accuracy. The module enables precise navigation and automation of moving industrial machinery by means of a small, surface mounted module.

The NEO-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. ZED-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies.

NEO-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need.

NEO-F9P breakout pcb features:

  • 184-channel u-blox F9 engine GPS L1C/A L5, GLO L1OF, GAL E1B/C E5a, BDS B1I B2a, QZSS L1C/A L1S L5, SBAS L1C/A NavIC L5
  • On-board low noise 3.3V voltage regulator
  • USB type C connector, I2C (SDA, SCL), SPI and 2 UART (Tx, Rx) interface, EXTINT pin, RTK STAT pin.
  • Time pulse LED, Power LED
  • SMA antenna connector
  • Support active antenna
  • u-center ublox Evaluation Software
  • Extensive visualization and evaluation features
  • Backup supercapacitor
  • Dimensions: 40x18 mm
  • Weight: 8.1 gr.
  • Fully assembled and ready to use

Board can be used for a Base or Rover operation mode!

NEO-F9P Features:

Receiver type:

  • 184-channel u-blox F9 engine
  • GPS L1C/A L5, GLO L1OF
  • GAL E1B/C E5b, BDS B1I B2I
  • QZSS L1C/A L1S L5, SBAS L1C/A
  • NavIC L5

Nav. update rate:

  • RTK up to 20 Hz

Position accuracy:

  • RTK 0.01 m + 1 ppm CEP
  • SPARTN Horizontal pos. accuracy – 0.06m, vert -0.12m

Convergence time:

  • RTK < 10 sec
  • Acquisition Cold starts 27 s
  • Aided starts 3 s
  • Reacquisition 4 s

Sensitivity:
