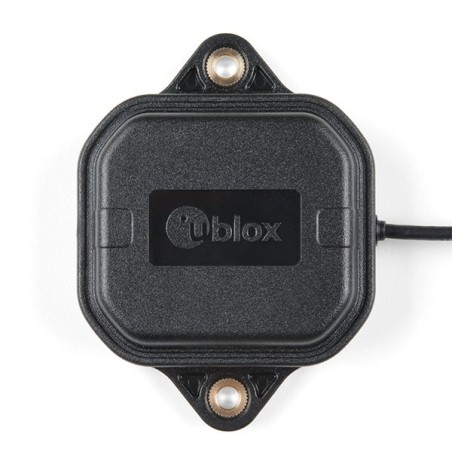

ANN-MB Multi-Band, High Precision GNSS antennas description:
The ANN-MB multi-band (L1, L2/E5b) active GNSS antennas are designed to reduce time to market for the next generation of high precision GNSS applications, which require highly accurate location abilities. The compact design, excellent price-performance ratio, and versatile mounting and connector choices provide customers with fast, easy, and reliable multi-band antenna solutions. The ANN-MB antenna is a perfect match to the latest u-blox F9 platform including the ZED-F9P module, thus providing customers with the valuable antenna solution they need to minimize design-in efforts. IP rating IP67
Signal Received:
- GPS L1/L2
- GLONASS G1/G2/G3
- GALILEO E1/E5b
- BDS B1I/B2I/B1C/B2b
- SBAS L1
- QZSS L1/L2
Highlights
- Multi-band (L1, L2/E5b) active GNSS antennas with excellent price-performance ratio 28 dB
- Supports GPS, GLONASS, Galileo, and BeiDou
- Fast and easy antenna solution for high precision applications
- Versatile mounting and connector options
- IP rating IP67
Amplifier characteristics
- Gain without cable 28 ± 3.0 dB
- LNA Noise figure Max 3.2 dB
- Axial Ratio: 2.0dB max. @Zenith
- Output VWSR Max.: 2.0
- DC Voltage: 3 - 5 V
- DC Current typ.: 15 mA
Mechanical Data
- Weight: 173 g (without cable)
- Size: 82 x 60 x 22.5 mm
- Cable lenght: 5 meters
- Connectors: SMA
- Housing color: Black
- Mounting: magnetic base, screw mount 2 x M4 distance 68 mm
