IPEX (UF.L) 25mm Two Stage 33dB GPS/Glonass Active Patch Antenna Module
  • IPEX (UF.L) 25mm Two Stage 33dB GPS/Glonass Active Patch Antenna Module
  • IPEX (UF.L) 25mm Two Stage 33dB GPS/Glonass Active Patch Antenna Module
  • EAN-4751046551808 (IPEX (U.FL) 25mm Two Stage 33dB GPS/Glonass Active Patch Antenna Module)

IPEX (U.FL) 25mm Two Stage 33dB GPS/Glonass Active Patch Antenna Module

ELT0180

IPEX (U.FL) 25mm Two Stage 33dB GPS/Glonass Active Patch Antenna Module

VOLUME SALES PRICING

This product comes with 1 years worldwide warranty

Volume discounts

Quantity Unit discount You Save
10 5% Up to 8.00 €
25 10% Up to 39.98 €
100 15% Up to 239.85 €
15.99 €
Tax excluded
Quantity

100% secure payments
Total Rating Total Rating:

0 1 2 3 4
0/5 - 0 reviews

View ratings
0 1 2 3 4 0
0 1 2 3 0 0
0 1 2 0 1 0
0 1 0 1 2 0
0 0 1 2 3 0

  Add Review View Reviews View Reviews
  Security policy

Security policy

  Delivery policy

Delivery policy

  Return policy

Return policy

Description

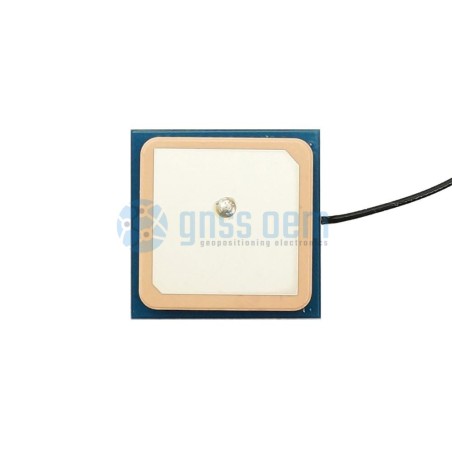

IPEX (U.FL) 25mm Two Stage 33dB GPS/Galileo/Glonass/Beidou L1/B1I/B1c/E1/G1 Active Patch Antenna Module.

The 25mm active patch antenna module has been designed specifically for embedded (inside device) integration with GPS/Glonass receiver modules. The antenna combines a 25x25mm advanced low profile ceramic patch antenna with a two stage LNA and a front-end SAW filter with ultra thin coaxial cable.

Patch antenna characteristics:

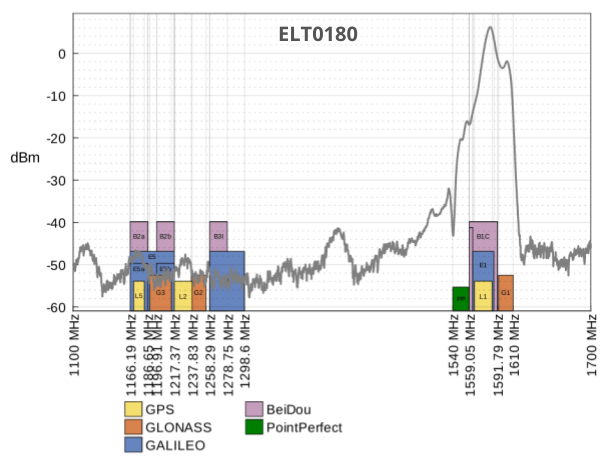

  • Frequency: L1/B1/E1 1575.42MHZ G1 1602MHz
  • Gain: 2dBi
  • VSWR: <1.5
  • Impendance: 50 Ohm
  • Polarizacion: RHCP
  • Axis Ratio: <3dB
  • Horizontal angle: 360deg

LNA Specifications:

  • LNA Gain: 33dB
  • Noise Figure: <2dB
  • Output Impendance: 50 Ohm
  • Supply Voltage: 2.8-5V
  • Supply current: <20mA

Mechanical Data:

  • Dimensions: 28x28x7mm (Ground Plane)
  • Weight: 14 gr.
  • Connector: IPEX (U.FL)
  • Cable length: 50mm Ø1.13 cable
  • Mounting:
Product Details
ELT0180
4751046551808
ELT0180
92 Items
New
