High Performance Multi band GNSS Active Quad Helix Antenna FOR RTK
  • High Performance Multi band GNSS Active Quad Helix Antenna FOR RTK

High Performance Multiband RTK GNSS Active Quad Helix Antenna White

ELT0014W

SMA High Performance Helical spiral GPS L1/L2, Glonass G1/G2/G3, Beidou B1I/B1C/B2i/B2b, Galileo E1/E5B  IP67 active Antenna WHITE color

VOLUME SALES PRICING

This product comes with 1 years worldwide warranty

Volume discounts

Quantity Unit discount You Save
25 5% Up to 112.49 €
50 10% Up to 449.95 €
100 15% Up to 1,349.85 €
89.99 €
Tax excluded
Quantity

100% secure payments
Total Rating Total Rating:

0 1 2 3 4
0/5 - 0 reviews

View ratings
0 1 2 3 4 0
0 1 2 3 0 0
0 1 2 0 1 0
0 1 0 1 2 0
0 0 1 2 3 0

  Add Review View Reviews View Reviews
  Security policy

Security policy

  Delivery policy

Delivery policy

  Return policy

Return policy

Description

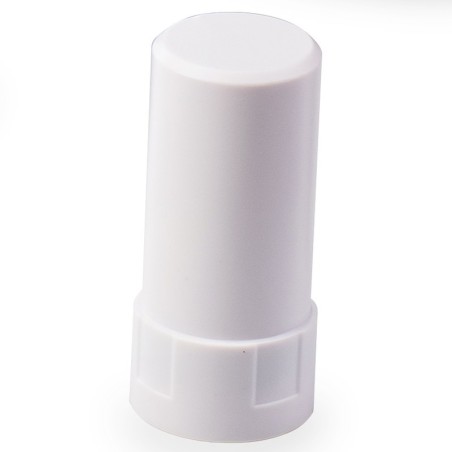

Active Quad Helix Antenna (white) description:

This is an active multi-frequency, high-accuracy, GNSS antenna for the GPS L1/L2, Glonass G1/G2/G3, Beidou B1I/B1C/B2i/B2b, Galileo E1/E5B bands. The antenna is designed for applications requiring greater accuracy than L1-only antennas can provide. The antenna is built on helical structure technology providing exceptional pattern control, polarization purity and high-efficiency in a compact form factor. It features an integrated SMA connector and rugged IP67 automotive grade components. This antenna is ideal for applications requiring minimal integration effort or for retrofitting existing products. The antenna is equipped with an O-ring. The antenna is white color.

Same antenna in black color

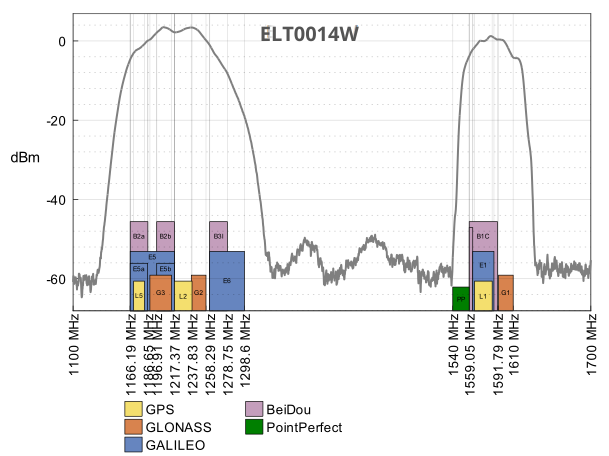

Passive Antenna Performance

Frequency:

1192-1231 MHz (L2, B2, G2, G3, E5B)

1559-1606 MHz (L1, E1, B1, B1-2, G1)
<>Peak Efficiency

46%

49%

Polarization

RHCP

RHCP

Realized Gain

1,1dB

0,5dB

Axial Ratio

Max 1.2 dB at the Zenith

Max 0.9 dB at the Zenith

VSWR

Max 2:1

Max 2:1

Beamwidth

135˚

125˚

Horizontal Coverage

360˚

360˚

Phase Center Variation

  • In azimuth plane: Max 10mm
  • As low as 40 degree elevation: Max 10mm
  • Between samples: Max 5mm
  • Over frequency band: Max 10mm

RF Specifications

  • 30 dBic @ 1227 MHz (typical)
  • 28 dBic @ 1575 MHz (typical)
  • 28 dBic @ 1602 MHz (typical)
  • LNA Gain: 32 dB
  • Noise Figure: 1.5 dB typical, 2 dB max
  • Axial Ratio: ≤ 3 dB
  • Voltage: 3.0 to 18 V
  • Current: 45 mA max
  • Out of Band Rejection: 40 dBc
  • Group Delay Variation: Less than 5ns over GNSS bands
  • EMI Immunity Out of Band: 30 V/m
  • ESD Circuit Protection: 15 kv human body model air discharge

Active Quad Helix Antenna features:

  • Quadrifilar helix antenna
  • Concurrent GNSS reception on GPS, GLONASS, Galileo and Beidou
  • Rugged IP67 rating with SMA mount
  • Small form factor
  • Ground plane independent
  • GIS, RTK and other high accuracy GNSS applications
  • Low power consumption
  • Low phase center variation over azimuth and elevation and among different samples
  • Ultra-lightweight about: 20 gr.
  • Dimension: 58.6 x 27.3mm
  • Mounting: SMA mount
  • Automotive grade electronics
Product Details
ELT0014W
ELT0014W
138 Items
New
Accessories
16 other products in the same category:
