L1 Ultralight GPS Helix Antenna

ELT0240

L1 Ultralight Miniature GPS Helix Antenna 1575.42MHZ

VOLUME SALES PRICING

This product comes with 1 years worldwide warranty

Volume discounts

Quantity Unit discount You Save
10 5% Up to 10.00 €
25 10% Up to 49.98 €
100 15% Up to 299.85 €
19.99 €
Tax excluded
Quantity

100% secure payments
Total Rating Total Rating:

0 1 2 3 4
0/5 - 0 reviews

View ratings
0 1 2 3 4 0
0 1 2 3 0 0
0 1 2 0 1 0
0 1 0 1 2 0
0 0 1 2 3 0

  Add Review View Reviews View Reviews
  Security policy

Security policy

  Delivery policy

Delivery policy

  Return policy

Return policy

Description

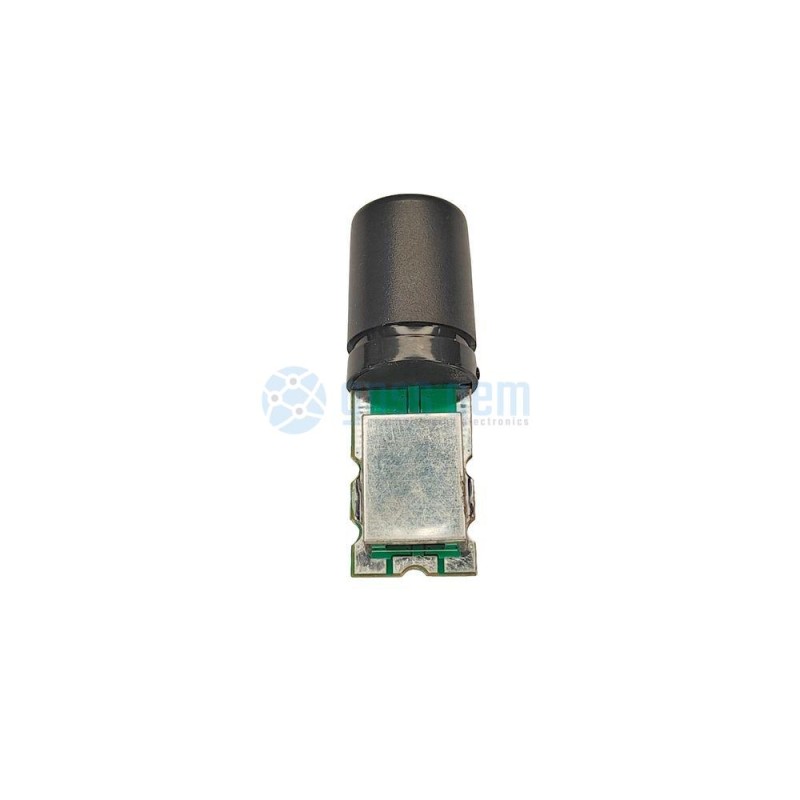

L1 Ultralight GPS Helix Antenna

The ELT0240 antenna is a balanced design, providing galvanic isolation from the host device and effectively rejecting common-mode noise on the system ground. Its dielectric-loaded structure tightly confines the near-field region, making it highly tolerant to nearby materials — detuning effects are negligible, and the antenna maintains consistent radiation pattern and efficiency even under dielectric loading.
A high-performance integrated SAW filter attenuates unwanted signals from common GSM and ISM bands by up to 30 dB, often eliminating the need for additional external filtering.
While the ELT0240 can be used as an external stub-style antenna, its isolation characteristics also make it well-suited for embedded applications.

Patch antenna characteristics:

  • Frequency: L1 1575.42MHZ
  • VSWR: <2
  • Impendance: 50 Ohm
  • Polarizacion: RHCP
  • Axis Ratio: <3dB

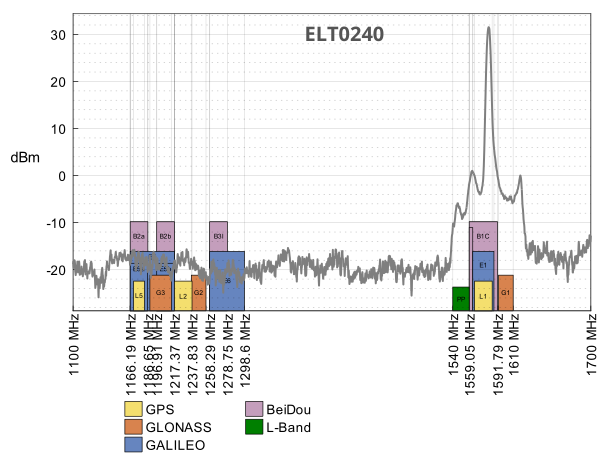

Signal Received:

  • GPS L1

LNA Specifications:

  • LNA Gain: 25dB
  • Noise Figure: <1.2dB
  • Output Impendance: 50 Ohm
  • Supply Voltage: 2.8-3.6V
  • Supply current: <15mA

Mechanical Data:

  • Dimensions: 13(dia) x 15(width) x 48(length)
  • Weight: 4 gr.
Product Details
ELT0240
ELT0240
200 Items
New
