IPEX (U.FL) 45mm Two Stage 28dB Multi GNSS Band dual pin Active Patch Antenna Module
  • IPEX (U.FL) 45mm Two Stage 28dB Multi GNSS Band dual pin Active Patch Antenna Module
  • IPEX (U.FL) 45mm Two Stage 28dB Multi GNSS Band dual pin Active Patch Antenna Module
  • EAN-4751046551822 (IPEX (U.FL) 45mm Two Stage 28dB Multi GNSS Band dual pin Active Patch Antenna Module)

IPEX (U.FL) 45mm Two Stage 28dB Multi GNSS Band dual pin Active Patch Antenna Module

ELT0182

IPEX (U.FL) 45mm Two Stage 28dB Multi GNSS Band dual pin Active Patch Antenna Module

VOLUME SALES PRICING

This product comes with 1 years worldwide warranty

Volume discounts

Quantity Unit discount You Save
10 5% Up to 35.00 €
25 10% Up to 174.98 €
100 15% Up to 1,049.85 €
69.99 €
Tax excluded
Quantity

100% secure payments
Total Rating Total Rating:

0 1 2 3 4
0/5 - 0 reviews

View ratings
0 1 2 3 4 0
0 1 2 3 0 0
0 1 2 0 1 0
0 1 0 1 2 0
0 0 1 2 3 0

  Add Review View Reviews View Reviews
  Security policy

Security policy

  Delivery policy

Delivery policy

  Return policy

Return policy

Description

IPEX (U.FL) 45mm Two Stage 28dB Multi GNSS Band dual pin Active Patch Antenna Module

The 45mm active patch antenna module has been designed specifically for embedded (inside device) integration with GPS/Glonass receiver modules. The antenna combines a 45x45mm advanced low profile ceramic patch antenna with a two stage LNA and a front-end SAW filter with ultra thin coaxial cable. This antenna designed for high jamming immunity.

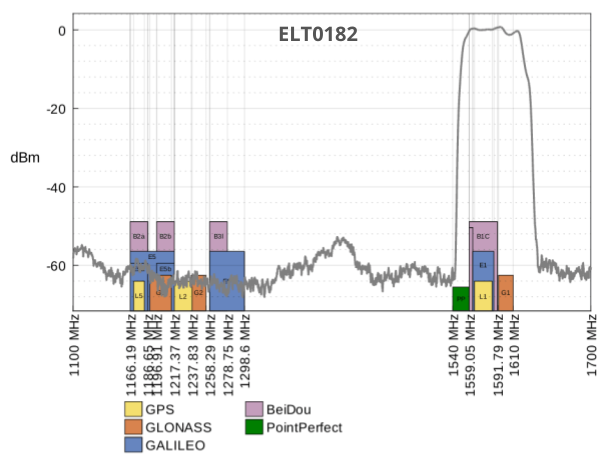

Patch antenna characteristics:

Frequency:

  • GPS - 1575.42MHZ
  • Glonass - 1602MHz
  • BDS - 1561 MHz
  • Galileo - 1575.42 MHz

  • Gain - 2dBi
  • VSWR-  <1.5
  • Impendance - 50 Ohm
  • Polarizacion - RHCP
  • Axis Ratio - <3dB
  • Horizontal angle - 60deg

LNA Specifications:

  • LNA Gain - 28dB
  • Noise Figure - <2dB
  • Output Impendance - 50 Ohm
  • Supply Voltage - 3.3-12V
  • Supply current - <20mA
  • Wide Input Voltage 2.8V to 5.5V
  • Low Power Consumption
  • High jamming immunity.
  • RoHS & Reach compliant

Mechanical Data:

  • Dimensions: Ø56 x 7.7 mm (Ground Plane)
  • Weight: 34 gr.
  • Connector: IPEX (U.FL)
  • Cable length: 50mm Ø1.13 cable
  • Mounting:
Product Details
ELT0182
4751046551822
ELT0182
98 Items
New
