ZED-F9T high accuracy timing EVAL module USB, I2C, UART, SPI with SMA antenna connectors. Designed for 5G Network Synchronization. Two time pulse out.
NEW pin to pin compatible version with USB type C connector available ELT0413
The ZED-F9T timing module provides nanosecond-level timing accuracy to the most demanding infrastructure applications. ZED-F9T is designed to meet the most stringent timing synchronization requirements in 5G mobile networks on a global scale. By significantly reducing the time error of the primary source of cellular network synchronization, the ZED-F9T will help operators maximize the performance of their networks and so optimize the return on their investment in 5G communications.
The timing module’s multi-band capability reduces the timing error under clear skies to less than 5 ns without the need for an external GNSS correction service. To further improve accuracy locally, the ZED-F9T features differential timing modes that exchange correction data with other neighboring GNSS timing receivers via a communication network. Multi-band access to all four satellite constellations strengthens the receiver’s capability for delivering more reliable performance. ZED-F9T includes advanced security features such as secure boot, secure interfaces, and T-RAIM to provide the highest level timing integrity. The module has a single RF input for all the GNSS bands and dual SAW filters for exceptional signal selectivity and out-ofband attenuation.

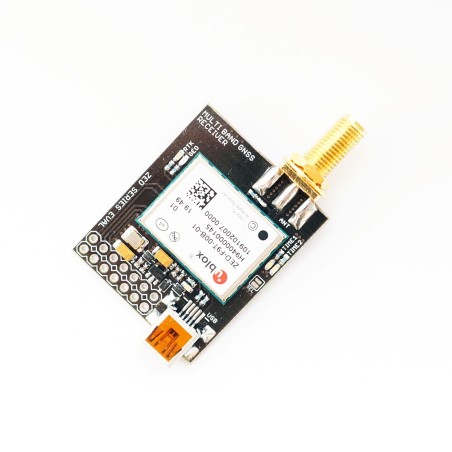

ZED-F9T breakout board features:
- On-board low noise 3.3V voltage regulator
- USB, I2C (SDA, SCL), SPI and 2 UART (Tx, Rx) interface, Two time pulse out
- SMA antenna connectors
- u-center u-blox Evaluation Software
- Extensive visualization and evaluation features
- Time pulse LED1, LED1, GEO LED
- Backup supercapacitor
- Dimensions: 36x30 mm without SMA
- Weight: 11 gr.
- Fully assembled and ready to use
- 14 pin holes connector
- Mini USB connector
ZED-F9T Features:
Receiver type: 184-channel u-blox F9 engine GPS L1C/A L2C, GLO L1OF L2OF, GAL E1B/C E5b, BDS B1I B2I, QZSS L1C/A L2C SBAS L1C/A: WAAS, EGNOS, MSAS, GAGAN
Nav. update rate: up to 20 Hz
Position accuracy: Standalone 2.0 m CEP
Sensitivity
- Tracking & Nav. -166 dBm
- Reacquisition -160 dBm
- Hot starts -157 dBm
- Cold starts -148 dBm
Acquisition
- Cold starts 26 s
- Aided starts 2 s
- Reacquisition 1 s
Assistance: AssistNow Online OMA SUPL & 3GPP compliant
Oscillator: TCXO
RTC crystal: Built-In
Anti-jamming
- Active CW detection and removal
- Dual onboard band pass filters
Anti-spoofing: Advanced anti-spoofing algorithms
Security
- Secure boot
- Secure firmware update
Memory: Flash
Supported antennas: Active
ZED-F9T Features - Timing::
Timing accuracy
- <5 ns (1-sigma, clear sky, absolute mode)
- <2.5 ns (1-sigma, clear sky, differential mode)
Time pulse frequency: 0.25Hz – 25 MHz
Time pulse jitter: ±4 ns
Time mark resolution: 8 ns
Integrity reports
- T-RAIM active, phase uncertainty
- Time pulse rate/duty-cycle, inter-constellation biases
Survey-in period: Configurable
ZED-F9T Product Summary
ZED-F9T Data Sheet
ZED-F9T Integration Manual
USB BreakOut board for easy start
