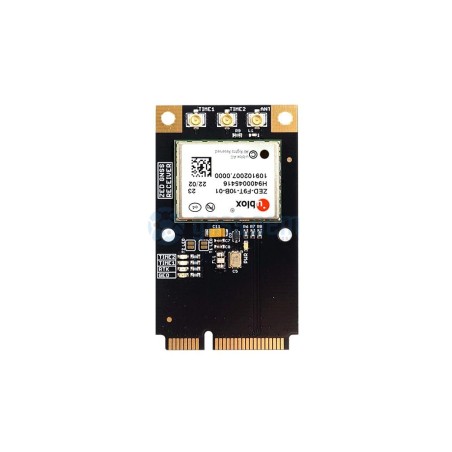

ZED-F9T-10B L1/L5/E5a mPCIe socket high accuracy timing receiver with IPEX (U.FL) antenna connectors and two IPEX (U.FL) time pulse out connector. Designed for 5G Network Synchronization. Two time pulse out.
The ZED-F9T-10B L1/L5/E5a timing module provides nanosecond-level timing accuracy to the most demanding infrastructure applications. ZED-F9T-10B L1/L5/E5a is designed to meet the most stringent timing synchronization requirements in 5G mobile networks on a global scale. By significantly reducing the time error of the primary source of cellular network synchronization, the ZED-F9T-10B L1/L5/E5a will help operators maximize the performance of their networks and so optimize the return on their investment in 5G communications.
The timing module’s multi-band capability reduces the timing error under clear skies to less than 5 ns without the need for an external GNSS correction service. To further improve accuracy locally, the ZED-F9T-10B L1/L5/E5a features differential timing modes that exchange correction data with other neighboring GNSS timing receivers via a communication network. Multi-band access to all four satellite constellations strengthens the receiver’s capability for delivering more reliable performance. ZED-F9T-10B L1/L5/E5a includes advanced security features such as secure boot, secure interfaces, and T-RAIM to provide the highest level timing integrity. The module has a single RF input for all the GNSS bands and dual SAW filters for exceptional signal selectivity and out-ofband attenuation.
ZED-F9T-10B L1/L5/E5a mPCIe socket receiver features:
- Full size mini PCI express compatible
- IPEX (U.FL) edge antenna connectors
- IPEX (U.FL) edge time 1 pulse connectors
- IPEX (U.FL) edge time 2 pulse connectors
- Two time pulse out by IPEX (UF.L)
- u-center ublox Evaluation Software
- Extensive visualization and evaluation features
- Time pulse LED1, LED1, GEO LED
- Backup supercapacitor
- Weight: 5,5 gr.
- Fully assembled and ready to use
ZED-F9T-10B L1/L5/E5a Features:
Receiver type: 184-channel u-blox F9 engine GPS L1C/A L5, GLO L1OF, GAL E1B/C E5a, BDS B1I, B1C, B2a, QZSS L1C/A L5 SBAS L1C/A: WAAS, EGNOS, MSAS, GAGAN
Nav. update rate: up to 20 Hz
Position accuracy: Standalone 2.0 m CEP
Sensitivity
- Tracking & Nav. -166 dBm
- Reacquisition -160 dBm
- Hot starts -157 dBm
- Cold starts -148 dBm
Acquisition
- Cold starts 26 s
- Aided starts 2 s
- Reacquisition 1 s
Assistance: AssistNow Online OMA SUPL & 3GPP compliant
Oscillator: TCXO
RTC crystal: Built-In
Anti-jamming
- Active CW detection and removal
- Dual onboard band pass filters
Anti-spoofing: Advanced anti-spoofing algorithms
Security
- Secure boot
- Secure firmware update
Memory: Flash
Supported antennas: Active
ZED-F9T-10B L1/L5/E5a Features - Timing:
Timing accuracy
- <5 ns (1-sigma, clear sky, absolute mode)
- <2.5 ns (1-sigma, clear sky, differential mode)
Time pulse frequency: 0.25Hz – 25 MHz
Time pulse jitter: ±4 ns
Time mark resolution: 8 ns
Integrity reports
- T-RAIM active, phase uncertainty
- Time pulse rate/duty-cycle, inter-constellation biases
Survey-in period: Configurable
