ZED-F9H mPCIe socket GNSS Receiver for heading applications with IPEX (U.FL)
  • ZED-F9H mPCIe socket GNSS Receiver for heading applications with IPEX (U.FL)
  • ZED-F9H mPCIe socket GNSS Receiver for heading applications with IPEX (U.FL)

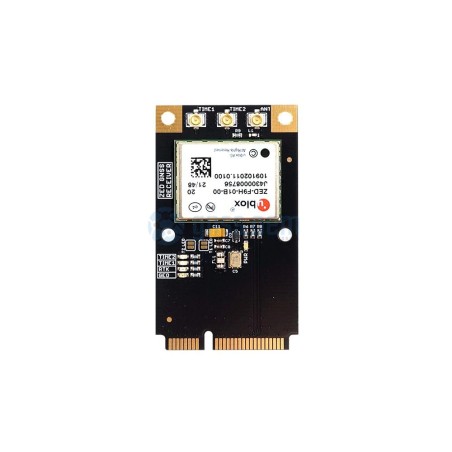

ZED-F9H mPCIe socket GNSS Receiver for heading applications with IPEX (U.FL)

ELT0391

ZED-F9H mPCIe socket high precision GNSS receiver for heading applications with IPEX (U.FL) antenna connectors and IPEX (UF.L) time pulse connector.

VOLUME SALES PRICING

This product comes with 1 years worldwide warranty

Volume discounts

Quantity Unit discount You Save
10 10.00 € Up to 100.00 €
25 20.00 € Up to 500.00 €
174.99 €
Tax excluded
Quantity

100% secure payments
Total Rating Total Rating:

0 1 2 3 4
0/5 - 0 reviews

View ratings
0 1 2 3 4 0
0 1 2 3 0 0
0 1 2 0 1 0
0 1 0 1 2 0
0 0 1 2 3 0

  Add Review View Reviews View Reviews
  Security policy

Security policy

  Delivery policy

Delivery policy

  Return policy

Return policy

Description

ZED-F9H mPCIe socket High Precision GNSS receiver with IPEX (U.FL) antenna connectors and  IPEX (U.FL) time pulse out connector, designed for heading applications. Designed for easy integration in your system or robots.

The ZED-F9H module is designed to provide best possible heading information to applications where precise attitude is of greatest importance. The ZED-F9H acts as an accompanying module, and requires a ZED-F9P module to be mounted on the same vehicle. In this setup, ZED-F9P provides the precise GNSS position, and at the same time acts as a moving base to the ZED-F9H module, which in turn outputs the precise attitude information.

As the heading information is based on GNSS it does not require pre-calibration, thus ensuring easy production, integration and operation. The precise heading information is always available, even in stand-still situations.

ZED-F9H is designed to lower the system cost for a heading application and comes with minimal e-BOM. Thanks to its small package size, light weight, and low power consumption it is well-suited for mass market adoption.

ZED-F9H mPCIe socket receiver features:

  • Full size mini PCI express compatible
  • IPEX (U.FL) edge antenna connectors
  • IPEX (U.FL) edge time pulse connectors
  • On-board Power filter
  • u-center u-blox Evaluation Software
  • Extensive visualization and evaluation features
  • Time pulse LED, GEO LED, RTK LED (PIN for each LED)
  • Backup supercapacitor
  • Weight: 5,5 gr.
  • Fully assembled and ready to use

ZED-F9H Features:

Receiver type:

  • 184-channel u-blox F9 engine
  • GPS L1C/A L2C, GLO L1OF L2OF,
  • GAL E1B/C E5b, BDS B1I B2I,
  • QZSS L1C/A L2C

Heading update rate:

  • Up to 10 Hz

Heading accuracy:

  • 0.4 degrees

Position accuracy:

  • RTK 0.01 m + 1 ppm CEP

Convergence time:

  • RTK < 10 sec
  • Acquisition Cold starts 24 s
  • Aided starts 2 s
  • Reacquisition 2 s

Sensitivity:

  • Tracking & Nav –167
  • Cold starts –148 dBm
  • Hot starts –157 dBm
  • Reacquisition –160 dBm
  • AssistNow GNSS Online
  • OMA SUPL & 3GPP compliant
  • TCXO Oscillator
  • Built-In RTC crystal
  • Active CW detection and removal
  • Active and passive antennas Supported
  • Flash Memory
