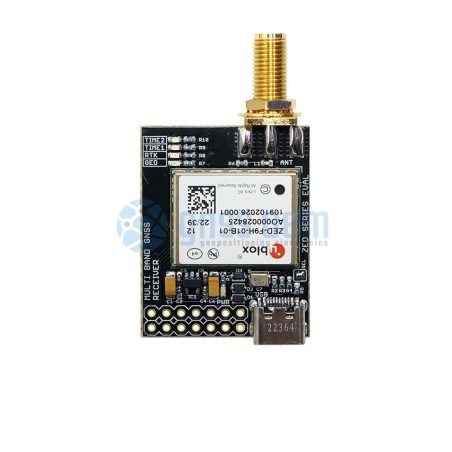

ZED-F9H High Precision GNSS receiver EVAL module USB, I2C, UART, SPI with SMA antenna connectors designed for heading applications. Designed for easy integration in your system or robots.

The ZED-F9H module is designed to provide best possible heading information to applications where precise attitude is of greatest importance. The ZED-F9H acts as an accompanying module, and requires a ZED-F9P module to be mounted on the same vehicle. In this setup, ZED-F9P provides the precise GNSS position, and at the same time acts as a moving base to the ZED-F9H module, which in turn outputs the precise attitude information.
As the heading information is based on GNSS it does not require pre-calibration, thus ensuring easy production, integration and operation. The precise heading information is always available, even in stand-still situations.
ZED-F9H is designed to lower the system cost for a heading application and comes with minimal e-BOM. Thanks to its small package size, light weight, and low power consumption it is well-suited for mass market adoption.

ZED-F9H breakout board features:

  • On-board low noise 3.3V voltage regulator with noise 2nV/Hz
  • USB C connector , I2C (SDA, SCL), SPI and 2 UART (Tx, Rx) interfaces
  • SMA edge antenna connectors
  • u-center ublox Evaluation Software
  • Extensive visualization and evaluation features
  • Time pulse LED, GEO LED, RTK LED
  • Backup supercapacitor
  • Dimensions: 36x30 mm without SMA
  • Weight: 7,9 gr
  • Fully assembled and ready to use
  • 14 Holes with pitch 2.54mm
  • USB type C connector

ZED-F9H Features:

Receiver type:

  • 184-channel u-blox F9 engine
  • GPS L1C/A L2C, GLO L1OF L2OF
  • QZSS L1C/A L2C

Heading update rate:</strong

  • Up to 10 Hz

Heading accuracy:

  • <0.4 degrees

Position accuracy:

  • RTK 0.01 m + 1 ppm CEP

Convergence time:

  • RTK < 10 sec
  • Acquisition Cold starts 24 s
  • Aided starts 2 s
  • Reacquisition 2 s

Sensitivity:

  • Tracking & Nav –167
  • Cold starts –148 dBm
  • Hot starts –157 dBm
  • Reacquisition –160 dBm
  • AssistNow GNSS Online
  • OMA SUPL & 3GPP compliant
  • TCXO Oscillator
  • Built-In RTC crystal
  • Active CW detection and removal
  • Active and passive antennas Supported
  • Flash Memory

Ultra Light Helix Antenna for drone

ZED-F9H Product Summary

ZED-F9H Data Sheet

ZED-F9H Integration Manual

ZED-F9H Interface Description
