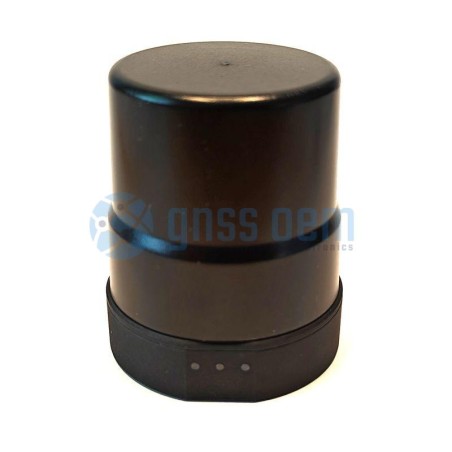

UM980 GNSS Smart Antenna module with USB-C, RFI protection and SMA Helix antenna in Metal case.

ELT0228

UM980 GNSS Smart Antenna module with USB-C, RFI protection and SMA Helix antenna in Metal case.

VOLUME SALES PRICING

This product comes with 1 years worldwide warranty

Antenna
229.99 €
Tax excluded
Quantity

100% secure payments
Total Rating Total Rating:

0 1 2 3 4
5,00/5 - 1 review

View ratings
0 1 2 3 4 1
0 1 2 3 0 0
0 1 2 0 1 0
0 1 0 1 2 0
0 0 1 2 3 0

  Add Review View Reviews View Reviews
  Security policy

Security policy

  Delivery policy

Delivery policy

  Return policy

Return policy

Description

UM980 GNSS Smart Antenna module with USB-C, RFI protection and SMA Helix antenna in Metal case.

UM980 is Unicore’s new-generation proprietary high-precision RTK positioning module based on the Nebulas IV SoC which integrates RF, baseband and high-precision algorithm. The built-in multi-frequency anti-jamming technology enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as city blocks and tree shades. Relying on the excellent performance, UM980 is well suited for high-precision navigation and positioning applications such as precision agriculture, surveying and mapping and so on. Board can be used for a Base or Rover operation mode!

Module features:

  • Antenna input with SMA connectorr
  • On-board low-noise 3.3V voltage regulator
  • USB port with USB C connector
  • Time pulse LED, Power LED, RTK LED
  • UPrecise Unicore Evaluation Software
  • Extensive visualization and evaluation features
  • Backup supercapacitor
  • Dimensions 45x12 mm
  • Weight: 28 gr.
  • Fully assembled, sealed and ready to use
  • Magnetic mount with waterproof 3M double sided tape
  • Waterproof 3M double sided tape for mounting

UM980 module features:

  • Based on the new generation GNSS SoC - NebulasIV, which integrates RF, baseband, and high precision algorithm
  • 17.0 x 22.0 x 2.6 mm LGA package
  • Supports on-chip RTK positioning calculation on all systems and multiple frequencies
  • All-system multi-frequency RTK engine and advanced RTK technology
  • Independent tracking of different frequencies and 60dB narrowband anti-jamming technology

Performance Specifications:

  • Channels: 1408 channels, based on NebulasIV

Frequency

  • GPS L1C/A/L1C/L2P(Y)/L2C/L5
  • BDS B1I/B2I/B3I/B1C/B2a/B2b
  • GLONASS G1/G2/G3
  • Galileo E1/E5a/E5b/E6
  • QZSS L1C/A/L1C/L2C/L5
  • NavIC L5
  • SBAS L1C/A

Single point positioning (RMS):

  • Horizontal: 1.5 m
  • Time Accuracy(RMS) - 20 ns
  • Vertical: 2.5 m
  • Velocity Accuracy (RMS) - 0.03 m/s

DGPS (RMS):

  • Horizontal: 0.4 m
  • Cold start < 12 s
  • Vertcal: 0.8 m
  • Initialization Time < 5 s (typical)

RTK (RMS):

  • Horizontal: 0.8 cm + 1 ppm
  • Initialization Reliability > 99.9%
  • Vertical: 1.5cm + 1 ppm
  • Data Update Rate 50 Hz* Positioning

Observation accuracy (RMS)

 BDS GPS GLONASS Galileo
B1I/L1 C/A/G1/E1 Code  10 cm 10 cm 10 cm 10 cm
B1I/L1C/A/G1/E1 Carrier Phase  1 mm 1 mm 1 mm 1 mm
B2I/L5/E5a/E5b Code  10 cm 10 cm 10 cm 10 cm
B2I/L5/E5a/E5b Carrier Phase  1 mm 1 mm 1 mm 1 mm
B3I/L2P(Y)/L2C/G2 Code  10 cm 10 cm 10 cm 10 cm
B3I/L2P(Y)/L2C/G2 Carrier Phase  1 mm 1 mm 1 mm 1 mm

  • Differential Data - RTCM V3.X
  • Data Format - NMEA-0183, Unicore

Physical Characteristics:

  • Packaging: 54 pin LGA
  • Dimension: 17.0 × 22.0 × 2.6 mm
  • Weight: 1.88 ± 0.03 g

Environmental Specifications:

  • Working temperature: -40 °C ~ +85 °C
  • Storage temperature: -55 °C ~ +95°C
  • Humidity: 95% No condensation
  • Vibration: MIL-STD-810F
  • Shock: MIL-STD-810F

Communication Interfaces:

  • 3 × UART (LVTTL)
  • 1 × I2C*
  • 1 × SPI* (slave)
  • 1 × CAN* (shared with UART3)

Note: Items marked with (*) are only supported by specific firmware.
