NEO-M8L InCase series ADR RAW receiver with 3D sensors

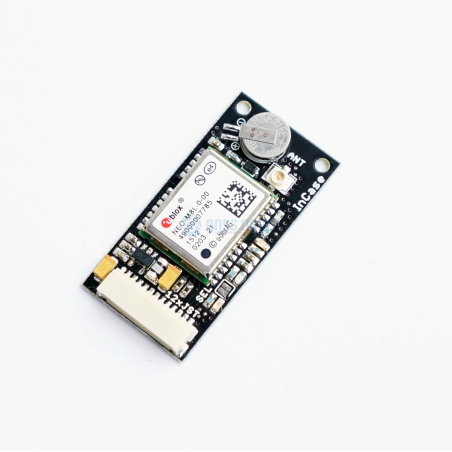

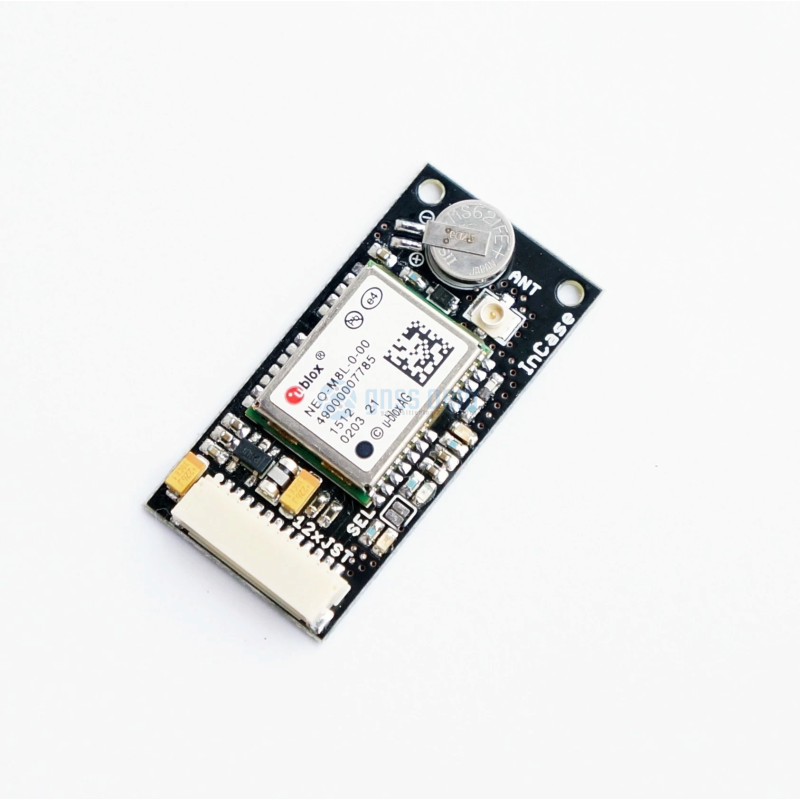

InCase series NEO-M8L Reference Board with UF.L antenna connectors, including 3D sensors, for your ADR systems, UAV systems, Robots, RC, FPV or other projects. Designed for easy integration in your system.

The NEO-M8L 3D Automotive Dead Reckoning (ADR) modules combine GNSS, inertial sensing, and speed information from the vehicle to provide continuous and accurate 3D positioning for road vehicles.

Incorporating u-blox’s latest advancements in multi-GNSS signal processing (now including Galileo), the latest version of NEO-M8L delivers the ideal solution where navigation perfor­mance is the priority, regardless of GNSS signal quality or avail­ability. In addition to the on-board sensors, NEO-M8L further eases installation with automatic configuration of speed or wheel-tick inputs, and compensation for in-vehicle antennas.

The intelligent combination of GNSS and sensor measurements enables accurate, real-time positioning, speed and heading information at rates up to 20 Hz, as essential for smooth and re­sponsive interactive display. Access to native, high rate sensor data enables host applications to make full use of the receiver’s assets.

The NEO-M8L includes u-blox’s latest generation GNSS tech­nology which adds Galileo to the multi-constellation reception that already includes GPS, GLONASS, BeiDou and QZSS. The module provides high sensitivity and fast GNSS signal acquisi­tion and tracking. UART, USB, DDC (I2C compliant) and SPI interface options provide flexible connectivity and enable simple integration with most u-blox cellular modules.

NEO-M8L breakout board features:

• 72-channel u-blox M8 engine  GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1I, Galileo E1B/C  SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
• SuperSense Indoor GPS, -167dBm
• On-board low noise 3.3V voltage regulator and RF filter for noise blocking
• USB, I2C, SPI and UART (Tx, Rx) WheelTick, RAW data out
• Support active antenna
• u-center Evaluation Software
• Extensive visualization and evaluation features
• Supports AssistNow Online and AssistNow Offline A-GPS services,  OMA SUPL & 3GPP compliant
• Time pulse LED 1
• WheelTick Out
• Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
• Supercapacitor for HOT module start
• Dimensions: 36x18mm
• Weight: 3.3 gr.
• Fully assembled and ready to use
• Can be easy mounted in your case by double sided tape
• 12 pin JST SH connector
• Output avail for use Time Pulse 1, WheelTick, Interupt 0, Interuprt 1, all pins for SPI, UART, USB, I2C interfaces

NEO-M8L features:

• 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1I, Galileo E1B/C  SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
• Nav. update rate Concurrent GNSS: up to 20 Hz
• Position accuracy 2 m CEP
• ADR position error  (Estimated) 2 % of distance travelled  without GNSS
• Acquisition
• Cold starts: 26 s
• Aided cold starts: 3 s
• Reacquisition: 1 s
• Data logger  for position, velocity, time, and odometer
• Sensitivity Tracking & Nav: –160 dBm
• Cold starts (aided): –148 dBm
• Hot starts: –157 dBm
• Assistance AssistNow GNSS Online
• AssistNow GNSS Offline (up to 35 days)
• AssistNow Autonomous (up to 6 days)
• OMA SUPL & 3GPP compliant
• Crystall Oscillator
• Built-In RTC crystal
• Onboard 3D accelerometer and 3D gyroscope sensosors
• RAW data out
• Position, speed, acceleration, heading, heading rate, attitude, time output
• Active and passive Supported antennas

NEO-M8L Accessories:

• 12 pin JST Cable
• USB BreakOut board for easy start

NEO-M8L Product Summary

NEO-M8L-05B Data Sheet

NEO-M8L-06B Data Sheet

NEO-M8L Hardware Integration Manual

u-blox 8 / u-blox M8 Receiver Description, Protocol Specification
