NEO-M8L ADR RAW receiver with 3D sensors, EMI protection + LIS3MDL and Tallysman ANT

NEO-M8L ADR RAW receiver with 3D sensors GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS receiver with Tallysman active antenna, EMI protection and LIS3MDL Magnetometer.

The NEO-M8L 3D Automotive Dead Reckoning (ADR) modules combine GNSS, inertial sensing, and speed information from the vehicle to provide continuous and accurate 3D positioning for road vehicles.

Incorporating u-blox’s latest advancements in multi-GNSS signal processing (now including Galileo), the latest version of NEO-M8L delivers the ideal solution where navigation perfor­mance is the priority, regardless of GNSS signal quality or avail­ability. In addition to the on-board sensors, NEO-M8L further eases installation with automatic configuration of speed or wheel-tick inputs, and compensation for in-vehicle antennas.

The intelligent combination of GNSS and sensor measurements enables accurate, real-time positioning, speed and heading information at rates up to 20 Hz, as essential for smooth and re­sponsive interactive display. Access to native, high rate sensor data enables host applications to make full use of the receiver’s assets.

The NEO-M8L includes u-blox’s latest generation GNSS tech­nology which adds Galileo to the multi-constellation reception that already includes GPS, GLONASS, BeiDou and QZSS. The module provides high sensitivity and fast GNSS signal acquisi­tion and tracking. UART, USB, DDC (I2C compliant) and SPI interface options provide flexible connectivity and enable simple integration with most u-blox cellular modules.

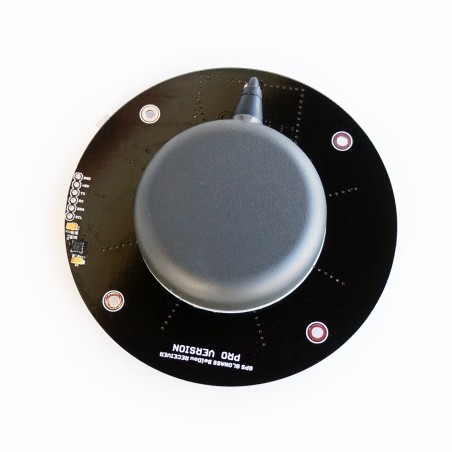

NEO-M8L breakout board features:

• 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C
• SuperSense Indoor GPS, -167dBm
• On-board low noise 3.3V voltage regulator and RF filter for noise blocking
• USB and UART (Tx, Rx) RAW data out available
• Dual band GPS, GLONASS, BeiDou antenna
• LIS3MDL I2C magnetometr
• u-center ublox Evaluation Software
• Extensive visualization and evaluation features
• Supports AssistNow Online and AssistNow Offline A-GPS services
• Time pulse LED
• Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
• Supercapacitor for HOT module start
• Dimensions: Round 100 mm; hole distance 60x60 mm
• Weight: 113 gr.
• EMI protection
• Fully assembled and ready to use
• Tallysman antenna

NEO-M8L features:

• 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1I, Galileo E1B/C  SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
• Nav. update rate Concurrent GNSS: up to 20 Hz
• Position accuracy 2 m CEP
• ADR position error  (Estimated) 2 % of distance travelled  without GNSS
• Acquisition
• Cold starts: 26 s
• Aided cold starts: 3 s
• Reacquisition: 1 s
• Data logger  for position, velocity, time, and odometer
• Sensitivity Tracking & Nav: –160 dBm
• Cold starts (aided): –148 dBm
• Hot starts: –157 dBm
• Assistance AssistNow GNSS Online
• AssistNow GNSS Offline (up to 35 days)
• AssistNow Autonomous (up to 6 days)
• OMA SUPL & 3GPP compliant
• Crystall Oscillator
• Built-In RTC crystal
• Onboard 3D accelerometer and 3D gyroscope sensosors
• RAW data out
• Position, speed, acceleration, heading, heading rate, attitude, time output
• Active and passive Supported antennas

Board Applications:

• High Accuracy & Mission Critical GNSS
• Precision Agriculture, Mining & Construction
• Military & Security
• Avionics
• Law Enforcement & Public Safety
• Fleet Management & Asset Tracking

NEO-M8L Product Summary

NEO-M8L-05B Data Sheet

NEO-M8L-06B Data Sheet

NEO-M8L Hardware Integration Manual

u-blox 8 / u-blox M8 Receiver Description, Protocol Specification
