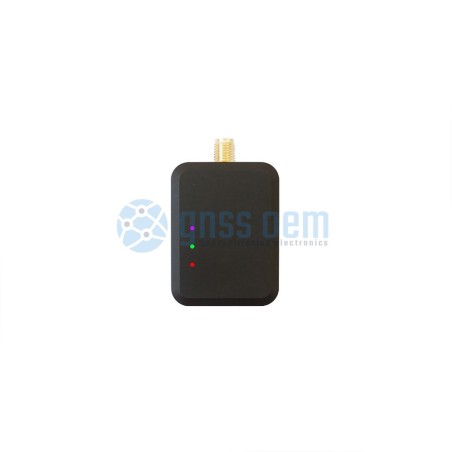

NEO-M9V GNSS IP67 USB C dongle receiver with UDR and ADR

ELT0192

NEO-M9V GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS UDR and ADR IP67 dongle receiver USB C with SMA antenna connectors.

VOLUME SALES PRICING

This product comes with 1 years worldwide warranty

94.99 €
Tax excluded
Quantity

100% secure payments
Total Rating Total Rating:

0 1 2 3 4
5,00/5 - 1 review

View ratings
0 1 2 3 4 1
0 1 2 3 0 0
0 1 2 0 1 0
0 1 0 1 2 0
0 0 1 2 3 0

  Add Review View Reviews View Reviews
  Security policy

Security policy

  Delivery policy

Delivery policy

  Return policy

Return policy

Description

NEO-M9V USB C IP67 dongle receiver with SMA antenna connectors, for your UDR systems, UAV systems, Robots, RC, FPV or other projects. 7075 Aluminium IP67 case.

The NEO-M9V module Based on the ultra-robust M9 platform, NEO-M9V is the first u-blox module to include both UDR and ADR options integrated into one receiver. The module also includes various dynamic models for after-market vehicles, motorcycles, and micromobility applications. All the components needed are on the module, including IMU. This makes the dead reckoning technology accessible and easy to use. Furthermore, the whole solution runs on the module which means that it is not necessary to run external libraries on the host.

This NEO-M9V GNSS module with dead reckoning technology delivers three times better accuracy than GNSS-only receivers, enabling a smooth urban navigation or tracking experience. In challenging environments, GNSS-only receivers typically have many outliers. In such conditions, statistical accuracy can easily exceed 10 meters. With NEO-M9V, there are few or no outliers. In typical urban scenarios, NEO-M9V offers sub-5-meter accuracy.

Maximum position availability is guaranteed, thanks to the concurrent reception of four global navigation satellite systems (GPS, Galileo, GLONASS, and BeiDou) and dead reckoning technology.

UDR enables fast time to market, and ADR improves the accuracy performance if there are long GNSS outages. Excellent RF interference mitigation thanks to SAW/LNA enables simple and fast RF designs  including considerable cost savings from reduced design efforts.

NEO-M9V USB dongle features:

  • 92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L1OF BeiDou B1I (1561.098 MHz) only, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
  • On-board low noise 3.3V voltage regulator and RF filter for noise blocking
  • USB interface type C connector
  • Support active antenna
  • SMA antenna connectors
  • Power LED
  • Time pulse LED
  • Can be easy mounted in your case by double sided tape
  • Supercapacitor for HOT module start
  • Dimensions without connectors: 40x30x18 mm
  • Weight: 43 gr.
  • Fully assembled and ready to use
  • 7075 T6 Aluminium case with IP 67 protection

NEO-M9V features:

  • 92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L1OF BeiDou B1I (1561.098 MHz) only, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
  • Nav. update rate Up to 50 Hz (4 concurrent GNSS)
  • Position accuracy 1.5 m CEP (with SBAS) or 2.0 m CEP (without SBAS)
  • UDR position error 10% of distance traveled without GNSS (duration < 60 s)
  • ADR position error 2% of distance traveled without GNSS
  • Acquisition
  • Cold starts: 24 s
  • Aided cold starts: 2 s
  • Reacquisition: 2 s
  • Sensitivity Tracking & Nav: –160 dBm
  • Reacquisition –159 dBm
  • Cold starts (aided): –148 dBm
  • Hot starts: –158 dBm
  • Geofencing Up to 4 circular areas Software message or GPIO for waking up the host CPU
  • RF interference and jamming detection and reporting
  • Active GNSS in-band filtering
  • Active GNSS in-band filtering Spoofing detection and reporting (consistency checks based on GNSS and sensors)
  • Device integrity Secure boot of firmware Receiver configuration lock by command
  • Secure interface Signed UBX messages (SHA-256) JTAG debug interface port locked
  • Assistance GNSS AssistNow Online
  • Active and passive Supported antennas

NEO-M9V Product Summary

NEO-M9V Data Sheet

NEO-M9V Hardware Integration Manual

Product Details
ELT0192
4751046551921
ELT0192
92 Items
New
16 other products in the same category:
ZED-F9P RTK InCase PIN GNSS receiver board with SMA and USB C Quick view

Reference: ELT0412

Brand: ELTEHS

ZED-F9P RTK InCase PIN GNSS receiver board with SMA and USB C

0 1 2 3 4 0 Review(s)

ZED-F9P High Precision GNSS receiver InCase PIN EVAL module USB type C, I2C, UART, SPI with SMA antenna connectors and USB C for direct connect to PC. L1/L2 or L1/L5 options. Base or Rover operation. VOLUME SALES PRICING This product comes with 1 years worldwide warranty

Price 189.99 €
More
In stock
ZED-F9P RTK receiver board with MultiBand antenna L1 L2 L5 +LIS3MDL Quick view

Reference: ELT0146

Brand: ELTEHS

ZED-F9T-10B L1/L5/E5a timing board with L1 L2 L5 antenna, EMI protection and LIS3MDL

0 1 2 3 4 0 Review(s)

ZED-F9T-10B L1/L5/E5a high accuracy timing module GNSS receiver USB, I2C, UART, SPI with GPS L1, GPS L2 and GPS L5 band, GLONASS, Galileo and BeiDou Operation antenna, Base or Rover operation, EMI protection. LIS3MDL magnetometer VOLUME SALES PRICING This product comes with 1 years worldwide warranty

Price 269.99 €
More
In stock

Related articles

Reviews Reviews (1)

Write a Review
Based on 1 review - 0 1 2 3 4 5,00/5
Filter:
0 1 2 3 4 (1)
0 1 2 3 0 (0)
0 1 2 0 1 (0)
0 1 0 1 2 (0)
0 0 1 2 3 (0)
Sort by:

0 1 2 3 4
(5/5)
By Roland Trebor on 26/03/2024 NEO-M9V GNSS IP67 USB C dongle receiver with UDR and ADR 0 of 0 people found the following review helpful
Total Rating: 0 1 2 3 4

Hi Team
Just a quick question: I am happy with this device, just wanted to understand the meaning of all three LEDs.


Shop owner reply (26/03/2024):
Hi Roland,
LEDs are Power, Time Pulse and RTK mode. Power is alway on, if the module is powered. Time Pulse start blinking, when GNSS signal received by the module. And the last one means RTK mode.
