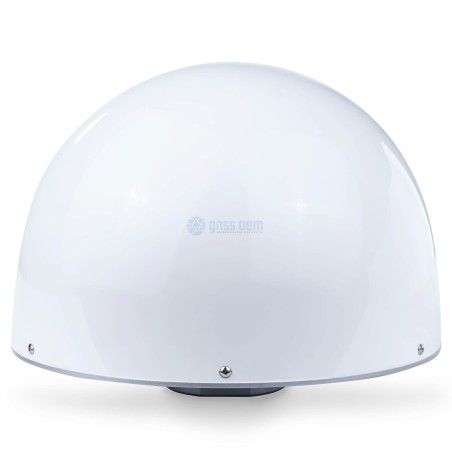

Choke Ring 3D High Performance Multiband RTK GNSS Antenna with TNC antenna connector
  • Choke Ring 3D High Performance Multiband RTK GNSS Antenna with TNC antenna connector
  • Choke Ring 3D High Performance Multiband RTK GNSS Antenna with TNC antenna connector
  • Choke Ring 3D High Performance Multiband RTK GNSS Antenna with TNC antenna connector

AllBand+ Choke Ring 3D High Performance Multiband RTK GNSS Antenna with TNC connector

ELT0314

Choke Ring Full Band Reference High Quality IP67 GNSS antenna with TNC connector

This product comes with 1 years worldwide warranty

2,899.00 €
Tax excluded
Quantity
Last items in stock

100% secure payments
  Security policy

Security policy

  Delivery policy

Delivery policy

  Return policy

Return policy

Description

AllBand+ Choke Ring full band Antenna description:

This is four star full frequency reference station antenna with high gain and high precision. Multi systems compatibility and high reliability. Antenna can be used as a geodetic surveying, mapping and for precision agriculture.

Signal Received:

  • GPS L1/L2/L5
  • GLONASS G1/G2/G3
  • GALILEO E1/E5a/E5b/E6
  • BDS B1I/B2I/B3I/B1C/B2a/B2b
  • SBAS L1/L5
  • QZSS L1/L2/L5/L6
  • IRNSS I5
  • L-band

Choke Ring 3D High Performance Multiband RTK GNSS Antenna with TNC antenna connector

RF Specifications

  • LNA Gain: 50 dB
  • Noise Figure: 1.5 dB typical, 2 dB max
  • Axial Ratio: ≤ 3 dB
  • Phase center error: +/- 2mm
  • Voltage: 3.3 to 12 V
  • Current: 50 mA max
  • Flatness in Band: +/-2dB
  • Differential delay: +/- 2nS

Choke Ring full ban Antenna features:

  • Concurrent GNSS reception on GPS, GLONASS, Galileo and Beidou
  • Rugged IP67 rating with TNC-K mount for surveying pole
  • Dome form factor
  • GIS, RTK and other high accuracy GNSS applications
  • Low power consumption
  • Low phase center variation over azimuth and elevation and among different samples
  • TNC-K to SMA 5m cable included
  • Dimension: Ø379.50*296.5 mm
  • Weight: 9.6 kg
  • Mounting: 5/8" threaded survey pin mount
Product Details
ELT0314
4751046553147
ELT0314
1 Item
New
