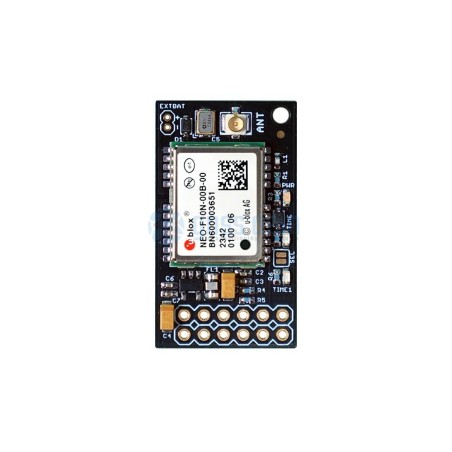

NEO-F10N InCase PIN series L1/L5 dual-band GNSS receiver board with UF.L antenna connector

InCase PIN series NEO-F10N Reference Board with UF.L antenna connectors for your UAV systems, Robots, RC, FPV or other projects. Designed for easy integration in your system.

The NEO-F10N Evaluation board makes evaluating the high performance of the u-blox 10 positioning engine simple. The NEO-F10N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-F10N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-F10N with SMA antenna connectors.

The NEO-F10N is built on the u-blox F10 dual-band GNSS technology using L1/L5 GNSS bands, which provides solid meter-level position accuracy in urban areas. With its proprietary dual-band multipath mitigation technology, u-blox F10 uses the best signals from the L1/L5 bands to achieve a significantly better position accuracy in urban environments than with the L1 band only. Applications like vehicle tracking and micromobility benefit significantly. NEO-F10N offers a single antenna input. Two SAW filters in series with an LNA between them provide high robustness against RF interference from co-located cellular modems. The firmware is upgradeable and is highly configurable to support many different use cases.

NEO-F10N breakout board features:

• u-blox F10 engine GPS L1C/A, L5 GALILEO E1B/C, E5a BDS B1C, B2a QZSS L1C/A, L1S, L1Sb, L5 NavIC L5  SBAS L1C/A: EGNOS, GAGAN, MSAS, and WAAS
• SuperSense Indoor -167dBm
• On-board low noise 3.3V voltage regulator and RF filter for noise blocking
• UART (Tx, Rx)
• Support active antenna
• u-center Evaluation Software
• Extensive visualization and evaluation features
• Supports AssistNow Online and AssistNow Offline A-GPS services
• Time pulse LED
• Supercapacitor for HOT module star
• Wire Pad for external backup battery
• Dimensions 32x19 mm
• Weight: 2.5 gr.
• Fully assembled and ready to use
• 12 pin 6x2 row 2.54mm connector
• Output avail for use Time Pulse, Interrupt, all pins for UART interface

NEO-F10N features:

• u-blox F10 engine GPS L1C/A, L5 GALILEO E1B/C, E5a BDS B1C, B2a QZSS L1C/A, L1S, L1Sb, L5 NavIC L5  SBAS L1C/A: EGNOS, GAGAN, MSAS, and WAAS
• Position accuracy 1.0 m CEP
• Acquisition
  • Cold starts: 26 s
  • Aided starts: 2 s
  • Reacquisition: 2 s
• Sensitivity
  • Tracking & Nav: –167 dBm
  • Cold starts: –148 dBm
  • Hot starts: –159 dBm
• Nav. update rate up to 10 Hz
• Oscillator TCXO
• RTC crystal Built-In
• Assistance AssistNow GNSS Online
• AssistNow GNSS Offline (up to 35 days)
• AssistNow Autonomous (up to 6 days)
• OMA SUPL & 3GPP compliant
• RF interference & jamming detection and reporting
• Spoofing detection and reporting
• Secure boot of firmware downloaded from host or flash
• Real-time online A-GNSS service with assured global availability
• Supported antennas Active and passive
• Odometer Travelled distance
