mosaic-G5 P6 UltraLight GNSS Smart Antenna for precision and RTK positioning
Lightweight, powerful, and dependable — the mosaic-G5 P6 ultraLight RTK GNSS Smart Antenna is the ideal choice for next-generation UAVs, autonomous systems, and precision applications that demand uncompromised performance in a compact form factor.
mosaic-G5 P6 ultraLight RTK GNSS Smart Antenna is a next-generation, ultra-lightweight RTK GNSS solution built around the powerful mosaic-G5 P6 module, integrated with a high-precision RM3100 compass and a compact helical antenna. It is purpose-designed for weight-sensitive UAVs, robotics, and mobile applications where every gram matters.
Achieve uncompromising accuracy for your most demanding projects with centimeter-level advanced RTK positioning and Galileo HAS corrections. Built for maximum responsiveness, the system delivers raw measurements with ultra-low latency and an exceptional 100 Hz update rate, while the dual-antenna configuration guarantees highly reliable heading data. To secure your operations in challenging RF environments, the receiver integrates AIM+ Premium—part of the advanced GNSS+ algorithm suite—providing superior protection against signal jamming and spoofing. All of this robust performance is delivered with industry-leading ultra-low power consumption, maximizing your equipment's autonomy in the field.
Auf Lager (>10 Stk.)
1 Jahr eingeschränkte Garantie
14 Tage Rückgaberecht
Lebenslanger technischer Support
Ihre Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben keinen Zugriff auf Ihre Kreditkarteninformationen.
Abholverfügbarkeit konnte nicht geladen werden
Produktmerkmale
Produktmerkmale
Overview
With its advanced multi-band RF front-end, the mosaic-G5 P6 ultraLight Smart Antenna is capable of simultaneously tracking all major GNSS constellations — ensuring robust positioning and centimeter-level accuracy when combined with correction data.
Engineered for flexibility, it supports concurrent reception of GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS, delivering a high-performance navigation solution even in challenging environments.
Device Features:
- Based on Septentrio mosaic-G5 P6 module with integrated multi-band RF front-end and high-precision positioning engine
- Advanced multi-frequency RTK engine for robust centimeter-level accuracy worldwide, supports positioning across all major constellations and frequencies
- AIM+ technology providing interference suppression, anti-jamming, and anti-spoofing
- Independent tracking of concurrent signals with built-in anti-jamming and interference mitigation
- Low Noise Amplifier (LNA) integrated with the compact helical antenna
- High Gain: 28 dB typ. from antenna
- Axial ratio: 3 dB max.
- Tight Phase Center Variation (PCV)
- Power supply: 5 VDC
- One optional UART with hardware flow control or one optional UART + USB
- Integrated 3-axis digital compass sensor RM3100 for accurate heading and orientation
WARNING: RX and CTS inputs shall not be driven while input supply not present.
Physical Characteristics:
- Dimension: Ø50x41 mm
- Weight: 34 gr.
- Water and Dust Resistance: IP55
- Operating Temperature: -10 °C ~ +60 °C
- Connector type: JST SH 1 mm 6 pin, JST GH 1.25 mm 6 pin
- Mounting Options: Waterproof 3M double-sided tape, Screw mount
- RoHS & Reach Compliant
- Fully assembled, tested, sealed, and ready for use

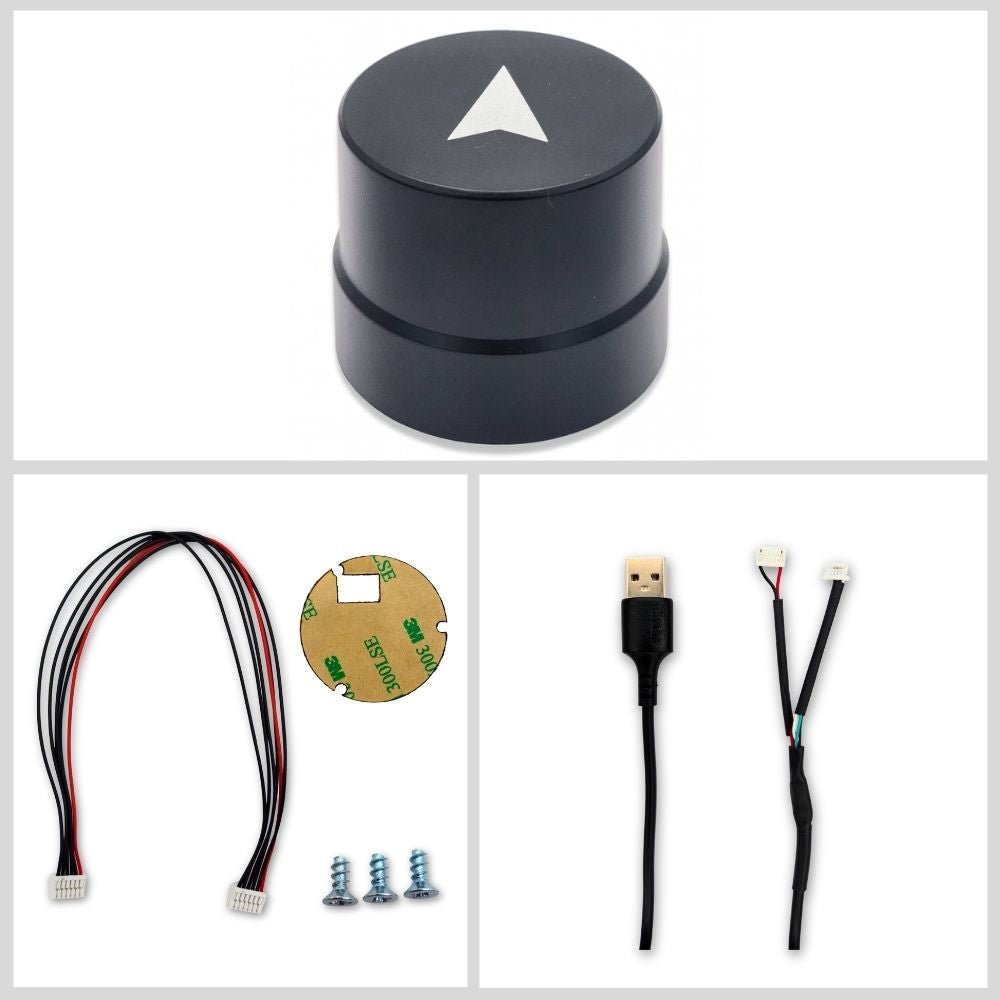

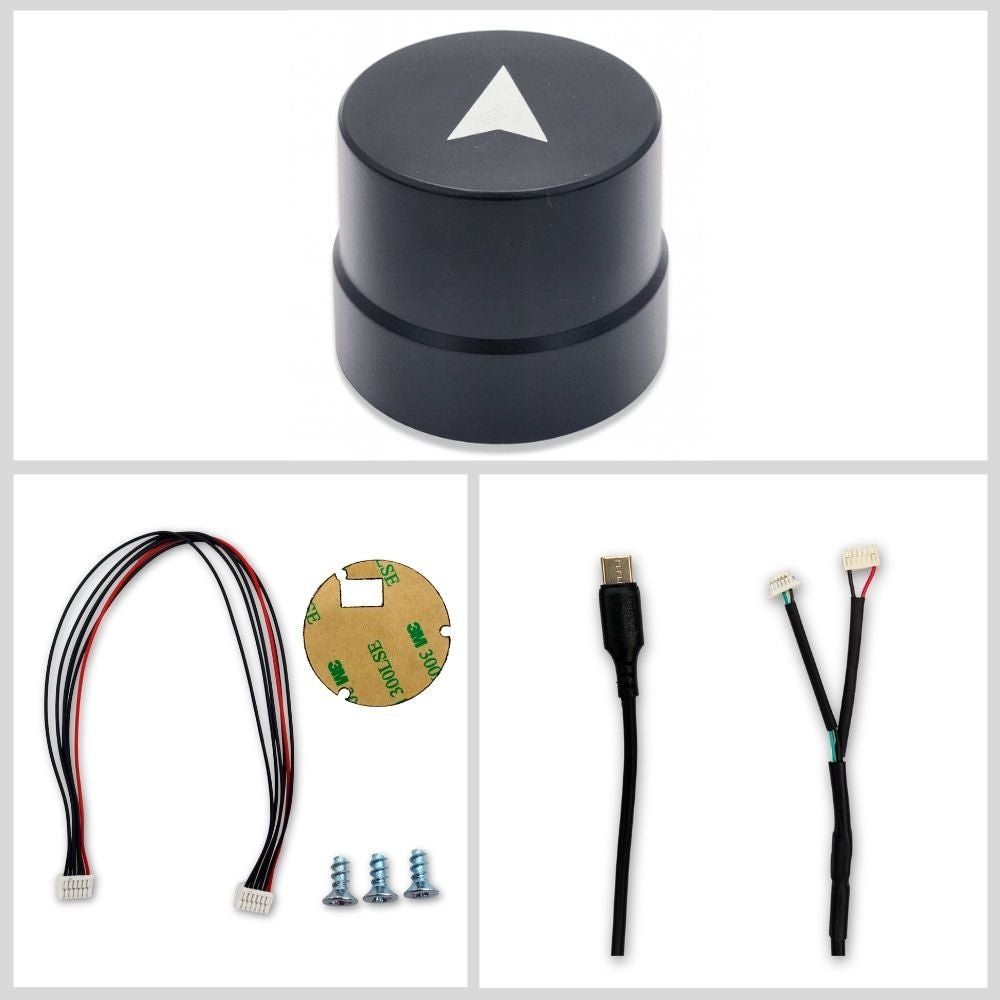

Kit included:
- Smart antenna – 1 piece
- Cable 200mm JST GH male 6 pin to 6 pin compatible with Pixhawk – 1 piece
- Cable 100 mm JST SH 1.0 mm 6 pin to 6 pin – 1 piece
- Waterproof 3M double-sided tape – 1 piece
- Screws 2.5x6 – 3 pieces
