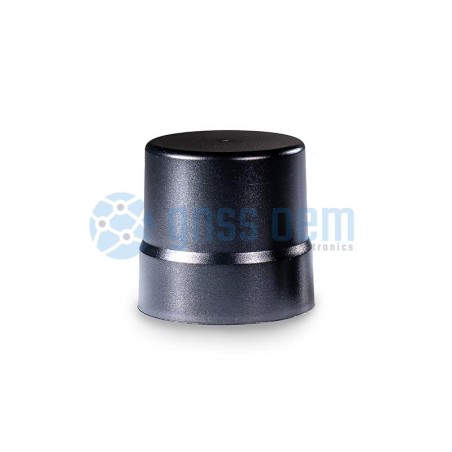

35dB RTK antenna
Ideal for precision positioning and RTK surveying systems, this antenna provides excellent circular polarized signal reception, great multi-path and out-of-band signal rejection. The Antenna features a precision tuned, four star full frequency helical antenna. The signals from the helical antenna combined in a hybrid combiner, amplified in a wide-band Low Noise Amplifier, then band-split for narrow filtering in each band and further amplified prior to recombination at the output. The Antenna offers excellent axial ratio and a tightly grouped phase center variation. The Antenna is housed IP67 in screw mount industrial grade weather-proof enclosure, SMA connector.
Same antenna in WHITE color
Signal Received:
- GPS (L1/L2/L5)
- GLONASS (G1/G2/G3)
- BeiDou (B1I/B1C/B2a/B2I/B2b/B3I)
- GALILEO (E1/E5a/E5b/E6)
- QZSS (L1/L2/L5/L6)
- IRNS (L5)
- SBAS (L1/L5)
35dB RTK antenna features:
- Low Noise Amplifier (LNA)
- Axial ratio: ≤ 3 dB typ.
- Tight Phase Center Variation (PCV)
- High Gain: 33 dB typ.
- Low current: 55 mA typ.
- Invariant performance from: +3.3 to 5VDC
- Antenna with SMA connector
- Antenna with screw mount
Typical Applications Include:
- Autonomous Driving
- Precision Positioning for Robotics
- Precision Agriculture
- Inventory Management & Container tracking
- Telematics & Asset Tracking
- Timing Accuracy Synchronization
Physical Characteristics:
- Dimensions: Ø43.5 x 40.8 mm
- Weight: 29 gr.
- RoHS & Reach Compliant
- Mounting: SMA or screw mount
This MultiBand antenna is the latest addition to an ongoing product road map of high precision antennas. For RTK applications when used on the base and/or the rover, the MultiBand antenna can achieve genuine cm-level accuracy.
