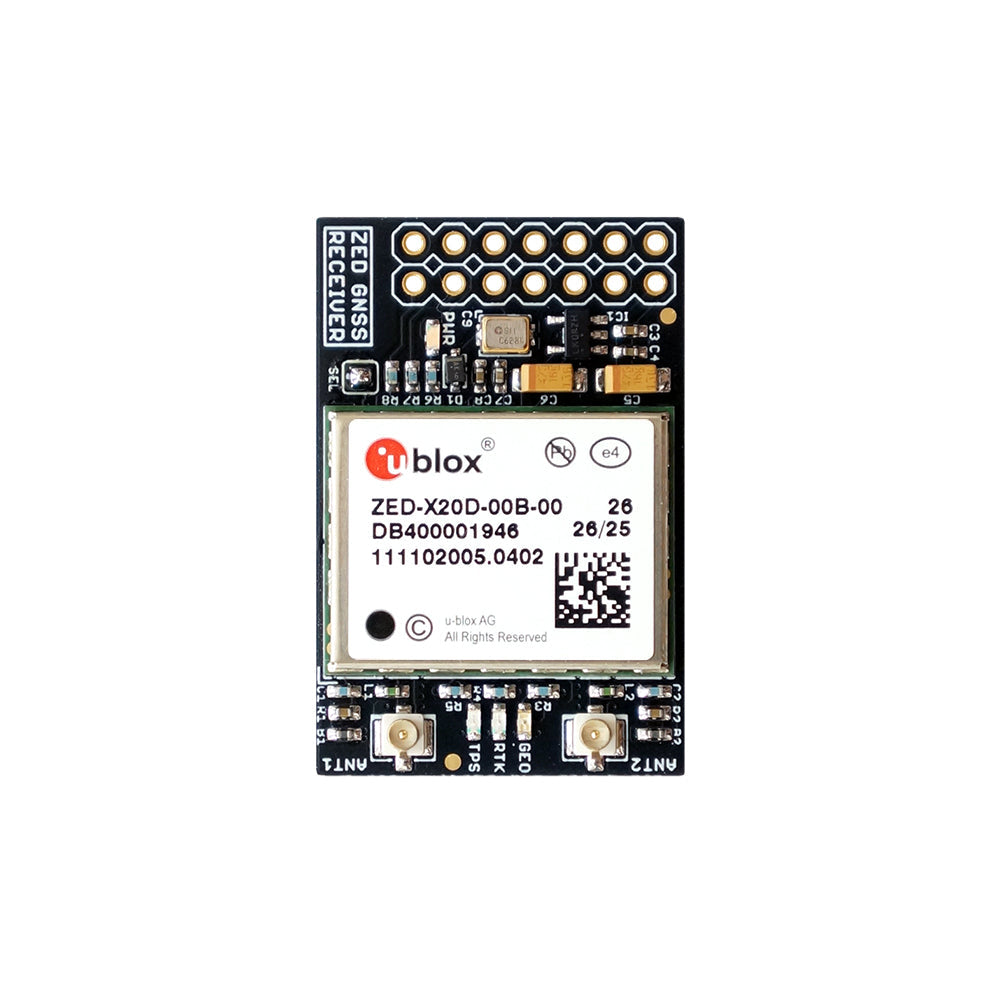

ZED-X20D all-band high precision GNSS module InCase PIN GNSS receiver board with IPEX (U.FL)
ZED-X20D all-band high precision GNSS module InCase PIN GNSS receiver board with IPEX (U.FL)
B2B-Großhandelspreise verfügbar
Registrieren Sie sich als Großhandelskunde, um Sonderpreise und Mengenrabatte für viele Produkte zu erhalten.
B2B-Beratung anfordernexkl. MwSt.
ZED-X20D all-band high-precision GNSS receiver board with dual-antenna GNSS heading capability for precise positioning and accurate orientation information. Supporting Base and Rover operation, the multi-band, multi-constellation receiver delivers centimeter-level RTK positioning accuracy in seconds and provides reliable GNSS-based heading using a dual-antenna baseline solution. Designed for easy integration into advanced navigation systems, autonomous robots, UAVs, and industrial applications requiring high-precision positioning and orientation.
Based on the u-blox X20 all-band high-precision technology, the ZED-X20D module is designed for dual-antenna applications requiring robust RTK positioning and precise heading information. It supports all major GNSS systems for maximum position availability, ensuring reliable positioning and heading performance even in challenging GNSS environments.
Auf Lager (>10 Stk.)
1 Jahr eingeschränkte Garantie
14 Tage Rückgaberecht
Lebenslanger technischer Support
Ihre Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben keinen Zugriff auf Ihre Kreditkarteninformationen.
Abholverfügbarkeit konnte nicht geladen werden
Produktmerkmale
Produktmerkmale
The ZED-X20D integrates an all-band GNSS engine with innovative positioning algorithms using real-time kinematics (RTK), precise point positioning (PPP) and PPP-RTK technologies in a compact form factor. For advanced users, its pristine raw data features minimal cycle slips and exceptionally low noise in carrier range and pseudo-range measurements.
ZED-X20D protects system integrity with multi-layered measures, including Root of Trust, jamming and spoofing detection, and cryptographic authentication of navigation messages through Galileo OSNMA. It offers support for a range of correction services, striking the perfect balance between performance and data usage.
Thanks to the compact design, robust RF architecture, and integration-friendly heading solution, ZED-X20D is ideally suited for precision agriculture (including heavy machinery), unmanned autonomous vehicles (UAVs), and other industrial applications requiring robust positioning and accurate GNSSbased heading. Furthermore, customers benefit from a trusted western supply chain, minimizing risk and securing long-term availability.
With ZED-X20D, customers have a secure, reliable, and readyto-use all-band heading solution that minimizes design efforts and accelerates mass adoption.
- On-board low noise 3.3V voltage regulator
- I2C (SDA, SCL), SPI and 2 UART (Tx, Rx) interface
- Two antenna inputs with IPEX (U.FL) connectors
- u-center2 ublox Evaluation Software
- Extensive visualization and evaluation features
- Time pulse LED, GEO LED, RTK LED (PIN for each LED)
- Backup supercapacitor
- Dimensions: 36x24 mm
- Weight: 4 gr.
- Fully assembled and ready to use
- 14 Holes with pitch 2.54mm
Board can be used for a Base or Rover operation mode!
