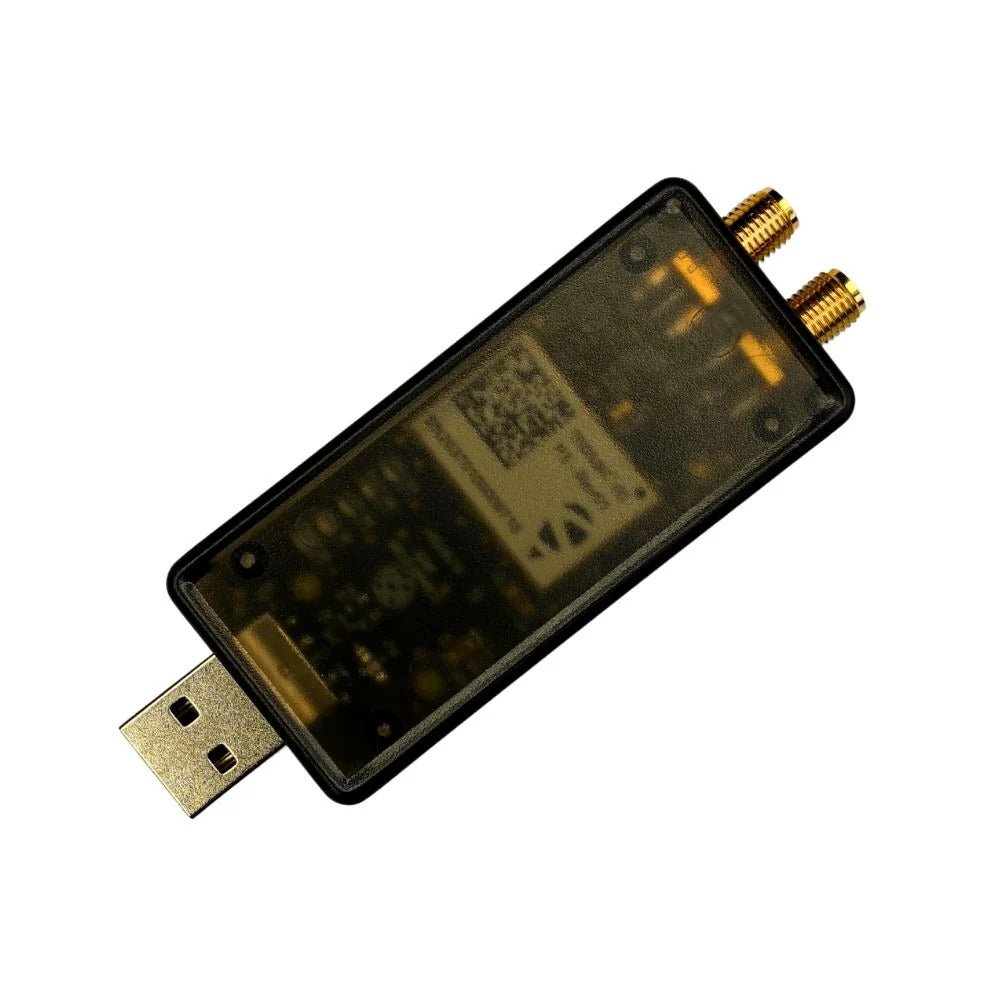

mosaic-G5T GNSS timing dongle
mosaic-G5T GNSS timing dongle
Regulärer Preis
€339,99
Verkaufspreis
€339,99
Regulärer Preis
Tax excluded
Key Features:
- PPS resolution: 1.4 ns
- Event accuracy: < 3 ns
- All-constellation, multi-frequency GNSS timing
- Advanced interference and spoofing protection (AIM+ Premium)
- High integrity and reliability under challenging conditions (RAIM+ & IONO+)
- Ultra-compact, low-power design for high-volume integration
Please log in to download the datasheet.
Available in stock (>10 pcs)
Related categories
Abholverfügbarkeit konnte nicht geladen werden
Spezifikationen
Spezifikationen
mosaic-G5T all-constellation multi-frequency top-performance high-precision timing GNSS receiver
mosaic-G5T is an ultra-compact, low-power GNSS timing receiver module engineered for resilient, high-precision time and frequency synchronization in critical infrastructure and other environments where dependable timing is essential. Built on the latest mosaic-G5 technology, mosaic-G5T delivers the performance and robustness expected from Septentrio timing solutions while optimizing size, weight, and power for high-volume applications.
With dedicated inputs for clock and frequency synchronization and support for all available GNSS constellations and frequencies, mosaic-G5T ensures maximum uptime and timing continuity even under challenging conditions such as interference or signal degradation. It supports precise timing with nanosecond-level accuracy and provides reliable PPS pulses for high-resolution synchronization. Optional AtomiChron services enable navigation message authentication (NMA) across multiple GNSS constellations, delivering superior anti-spoofing resilience and sub-nanosecond timing precision when integrated with global timing infrastructures.
AIM+ Premium (Advanced Interference Monitoring and Mitigation) offers robust protection against intentional and unintentional jamming and spoofing using an advanced system of interference detection and mitigation mechanisms. This ensures faster acquisition, continuous operation, and resilience against RF interference in dense electronic environments.
Advanced Receiver Autonomous Integrity Monitoring (RAIM+) continuously checks receiver measurements, quality control, and navigation algorithms. Faulty measurements caused by high multipath or ionospheric disturbances are identified and excluded, enhancing reliability.
IONO+ provides industry-leading protection against ionospheric disturbances, minimizing the impact of ionosphere-induced signal corruption and maintaining consistent GNSS timing performance across varied environments.
- Antenna input with SMA connector
- PPS output with SMA connector
- USB A connector
- Time pulse LED: Green, Power LED: Purple, LED (GPIO1): Red, LED (GPIO2): Orange
- RxTools Control and Analysis Software
- Extensive visualization and evaluation features
- Dimensions 85x30x15 mm
- Weight: 20 g
- Fully assembled, tested and ready to use
Produktdetails
Produktdetails
Produktvergleich
| Beschreibung |
| Preis |
| Verkäufer |
| Typ |
| Produktvarianten |
| Key Features:
mosaic-G5T all-constellation multi-frequency top-performance high-precision timing GNSS receivermosaic-G5T is an ultra-compact, low-power GNSS timing receiver module engineered for resilient, high-precision time and frequency synchronization in critical infrastructure and other environments where dependable timing is essential. Built on the latest mosaic-G5 technology, mosaic-G5T delivers the performance and robustness expected from Septentrio timing solutions while optimizing size, weight, and power for high-volume applications. With dedicated inputs for clock and frequency synchronization and support for all available GNSS constellations and frequencies, mosaic-G5T ensures maximum uptime and timing continuity even under challenging conditions such as interference or signal degradation. It supports precise timing with nanosecond-level accuracy and provides reliable PPS pulses for high-resolution synchronization. Optional AtomiChron services enable navigation message authentication (NMA) across multiple GNSS constellations, delivering superior anti-spoofing resilience and sub-nanosecond timing precision when integrated with global timing infrastructures.
AIM+ Premium (Advanced Interference Monitoring and Mitigation) offers robust protection against intentional and unintentional jamming and spoofing using an advanced system of interference detection and mitigation mechanisms. This ensures faster acquisition, continuous operation, and resilience against RF interference in dense electronic environments.
Advanced Receiver Autonomous Integrity Monitoring (RAIM+) continuously checks receiver measurements, quality control, and navigation algorithms. Faulty measurements caused by high multipath or ionospheric disturbances are identified and excluded, enhancing reliability.
IONO+ provides industry-leading protection against ionospheric disturbances, minimizing the impact of ionosphere-induced signal corruption and maintaining consistent GNSS timing performance across varied environments.
| Regulärer Preis
€339,99
Verkaufspreis
€339,99
Regulärer Preis
| GNSS Store |
Wählen Sie Ihre Option
New
mosaic-G5T GNSS timing dongle
mosaic-G5T GNSS timing dongle
Regulärer Preis
€339,99
Verkaufspreis
€339,99
Regulärer Preis
Tax excluded
Available in stock (>10 pcs)
Key Features:
- PPS resolution: 1.4 ns
- Event accuracy: < 3 ns
- All-constellation, multi-frequency GNSS timing
- Advanced interference and spoofing protection (AIM+ Premium)
- High integrity and reliability under challenging conditions (RAIM+ & IONO+)
- Ultra-compact, low-power design for high-volume integration
mosaic-G5T all-constellation multi-frequency top-performance high-precision timing GNSS receiver
mosaic-G5T is an ultra-compact, low-power GNSS timing receiver module engineered for resilient, high-precision time and frequency synchronization in critical infrastructure and other environments where dependable timing is essential. Built on the latest mosaic-G5 technology, mosaic-G5T delivers the performance and robustness expected from Septentrio timing solutions while optimizing size, weight, and power for high-volume applications.
With dedicated inputs for clock and frequency synchronization and support for all available GNSS constellations and frequencies, mosaic-G5T ensures maximum uptime and timing continuity even under challenging conditions such as interference or signal degradation. It supports precise timing with nanosecond-level accuracy and provides reliable PPS pulses for high-resolution synchronization. Optional AtomiChron services enable navigation message authentication (NMA) across multiple GNSS constellations, delivering superior anti-spoofing resilience and sub-nanosecond timing precision when integrated with global timing infrastructures.
AIM+ Premium (Advanced Interference Monitoring and Mitigation) offers robust protection against intentional and unintentional jamming and spoofing using an advanced system of interference detection and mitigation mechanisms. This ensures faster acquisition, continuous operation, and resilience against RF interference in dense electronic environments.
Advanced Receiver Autonomous Integrity Monitoring (RAIM+) continuously checks receiver measurements, quality control, and navigation algorithms. Faulty measurements caused by high multipath or ionospheric disturbances are identified and excluded, enhancing reliability.
IONO+ provides industry-leading protection against ionospheric disturbances, minimizing the impact of ionosphere-induced signal corruption and maintaining consistent GNSS timing performance across varied environments.
- Antenna input with SMA connector
- PPS output with SMA connector
- USB A connector
- Time pulse LED: Green, Power LED: Purple, LED (GPIO1): Red, LED (GPIO2): Orange
- RxTools Control and Analysis Software
- Extensive visualization and evaluation features
- Dimensions 85x30x15 mm
- Weight: 20 g
- Fully assembled, tested and ready to use
