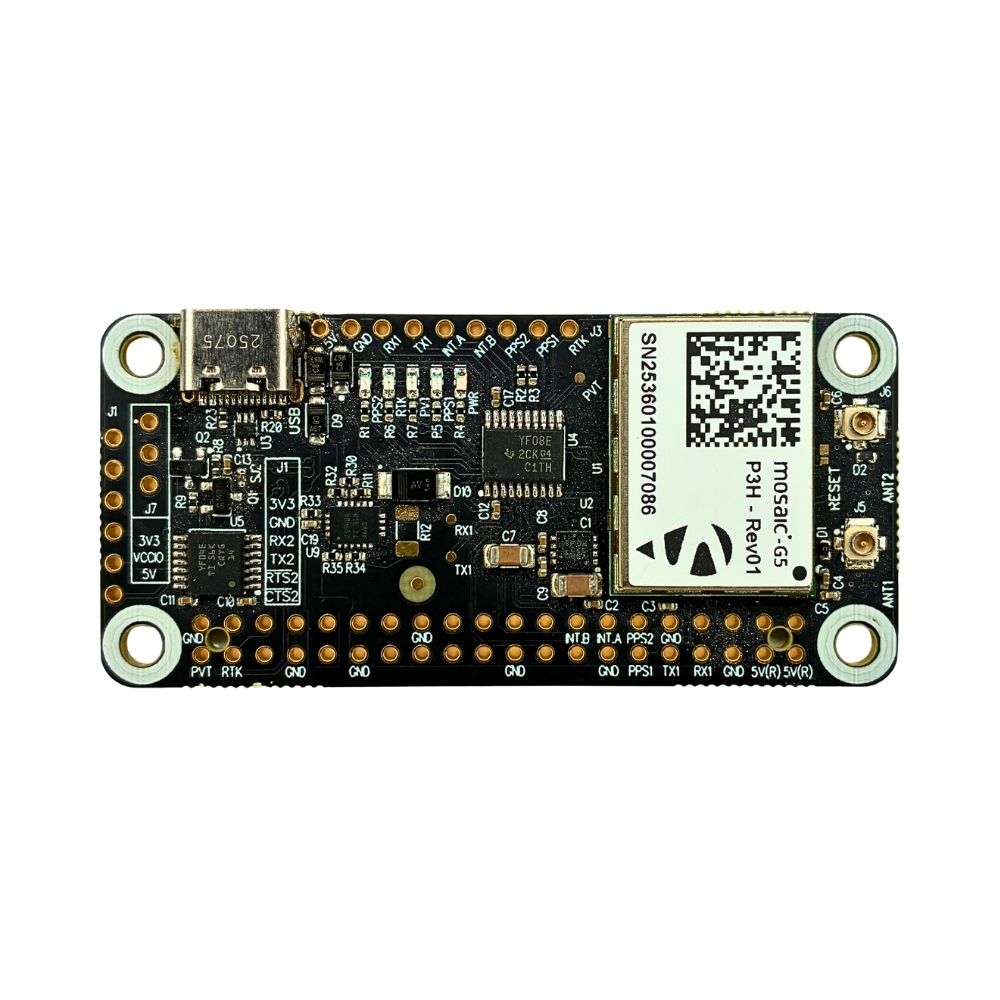

mosaic-G5 P3H Dual Channel RTK GNSS Raspberry PI HAT - ELT0779 - 1

mosaic-G5 P3H Dual Channel RTK GNSS Raspberry PI HAT - ELT0779 - 2

mosaic-G5 P3H Dual Channel RTK GNSS Raspberry PI HAT - ELT0779 - 3

Image is for illustrative purposes only. Please refer to product description.

Product Features

Raspberry PI 40 pin extension header, supports all Raspberry PI compatible boards and Jetson Nano

USB C connector

Two antenna inputs with IPEX connectors

On board low noise 3.3 V voltage regulator

On board voltage level translators for 5V compatibility

Time pulse LED: Green, Power LED: Purple, PVT LED (GPIO2): Red, RTK LED (GPIO1): Orange

ELT_RtkBase full-featured software

RxTools Control and Analysis Software

Extensive visualization and evaluation features

Supports onboard battery holder for ML1220 rechargeable cell for long backup applications

Dimensions 65x30.5x10 mm

Fully assembled and ready to use

ELT_RTKBase User Guide

mosaic-G5 P3H Module Specifications

General Description:

789 hardware channels for simultaneous tracking of all visible supported satellite signals
5 constellations RTK engine (rover) and advanced RTK technology
Galileo High Accuracy Service (HAS)
AIM+: Industry leading Anti-jamming, Anti-spoofing Interference Monitoring and Mitigation
IONO+: Advanced protection against ionospheric disturbances to GNSS signals
APME+: a posteriori multipath estimator for code and phase multipath mitigation
LOCK+: superior tracking robustness under heavy mechanical shocks or vibration
RAIM+: Advanced Receiver Autonomous Integrity Monitoring

Frequency:

GPS: L1C/A, L1C, L2C, L2P(Y), L5
GLONASS: LICA, L2CA, L2P, L3 CDMA
Beidou: B1I, B1C, B2a, B2I, B2b, B3I
Galileo: E1, E5a, E5b, E6
QZSS: L1C/A, L1C/B, L2C, L5, L6

Single point positioning (RMS):

Horizontal: 1.2 m
Vertical: 1.9 m
Time Precision(xPPS out) - 1.4 ns
Event accuracy < 3 ns
Cold start < 35 s
Data Update Rate: 20 Hz

DGPS (RMS):

Horizontal: 0.4 m
Vertical: 0.7 m
Data Update Rate: 20 Hz
Differential Data - RTCM V2.X

RTK (RMS):

Horizontal: 0.6 cm + 0.5 ppm
Vertical: 1cm + 1 ppm
Initialization Time: 7 s
Data Update Rate: 20 Hz
Differential Data - RTCM V3.X (MSM included)
Data Format - NMEA-0183, v2.3, v3.03, v4.0, RINEX v2.x, v3.x, Septentrio Binary Format (SBF), RTCM V3.X (MSM included)

GNSS attitude accuracy (RMS)

Antenna Separation / Heading / Pitch/Roll
1m / 0.15° / 0.25°
5m / 0.03° / 0.05°
Improved accuracy with longer antenna baseline
Data Update Rate: 20 Hz

Galileo High Accuracy Service (RMS):

HAS: 0.25 m / 0.4 m (now)
HAS: 0.1 m / 0.2 m (Once the HAS service reaches SL1)

Environmental Speciﬁcations:

Working temperature: -40 °C ~ +85 °C
Storage temperature: -55 °C ~ +85°C
Humidity: 5% ~ 95% No condensation
Vibration: IEC 60721-3-5 Profile 5M3, MIL-STD-810H 514.8 Category 4, MIL-STD-810H 516.8 Procedure 1

Communication Interfaces:

2 × UART (LVTTL, up to 4Mbps, one with hardware flow control)
1 × USB (2.0, HS up to 480Mbps)
2 x Event inputs
2 x GPIO
2 x PPS out
1 x SD memory card

Downloads

NDAA statement

Please log in to download the NDAA statement.

mosaic-G5 P3H Dual Channel RTK GNSS Raspberry PI HAT

Name: mosaic-G5 P3H Dual Channel RTK GNSS Raspberry PI HAT
Brand: Septentrio
Price: 409.99 EUR
Availability: InStock

SKU: ELT0779

EAN: 4751046557794

Brand: Septentrio

Made in EU

€409,99

Tax excluded

mosaic-G5 P3H dual channel all-constellation multi-frequency top-performance high precision RTK Raspberry Pi HAT

mosaic-G5 P3H high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.

AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation
APME+ a posteriori multipath estimator for code and phase multipath mitigation
LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations
IONO+ provides advanced protection against ionospheric disturbances
RAIM+ receiver autonomous integrity monitoring

Available in stock (>10 pcs)
