AllBand+ GPS, GLONASS, BDS, Galileo 28dB D50xH43 RTK antenna
Ideal for precision positioning and RTK surveying systems, this antenna provides excellent circular polarized signal reception, great multi-path and out-of-band signal rejection. The Antenna features a precision tuned, four star full frequency helical antenna. The signals from the helical antenna combined in a hybrid combiner, amplified in a wide-band Low Noise Amplifier, then band-split for narrow filtering in each band and further amplified prior to recombination at the output. The Antenna offers excellent axial ratio and a tightly grouped phase center variation. The Antenna is housed IP65 in screw mount industrial grade weather-proof enclosure, SMA connector.
Available in stock (>100 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
Signal Received:
- GPS L1/L2/L5
- GLONASS G1/G2
- GALILEO E1/E5a/E5b/E6
- BDS B1I/B2I/B3I/B1C/B2a/B2b
- SBAS L1/L5
- QZSS L1/L2/L5/L6
- IRNSS I5
- L-band
Antenna features:
- Low Noise Amplifier (LNA)
- Axial ratio: ≤ 3 dB typ.
- Tight Phase Center Variation (PCV)
- High Gain: 28 dB typ.
- Low current: 15 mA typ.
- Invariant performance from: +3 to 16VDC
- Antenna with SMA connector
- Antenna with screw mount
Typical Applications Include:
- Autonomous Driving
- Precision Positioning for Robotics
- Precision Agriculture
- Inventory Management & Container tracking
- Telematics & Asset Tracking
- Timing Accuracy Synchronization
- UAV

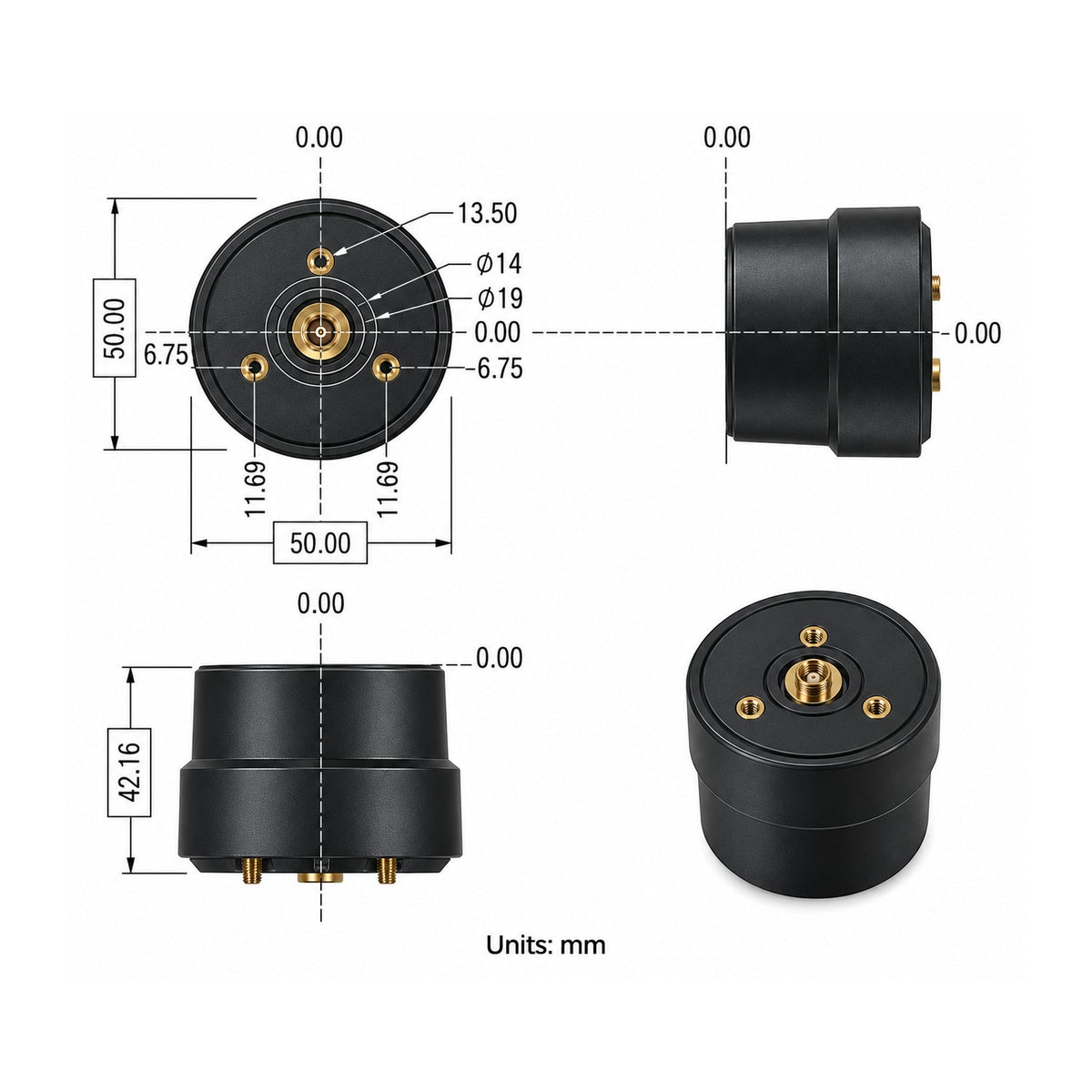

Physical Characteristics:
- Operating Temperature Range: -40 +85 ℃
- Dimensions: Ø50x42.16 mm
- Weight: 25 g
- Ingress Protection Rating: IP65
- RoHS & Reach Compliant
- Mounting: SMA or screw mount
This MultiBand antenna is the latest addition to an ongoing product road map of high precision antennas. For RTK applications when used on the base and/or the rover, the MultiBand antenna can achieve genuine cm-level accuracy.
