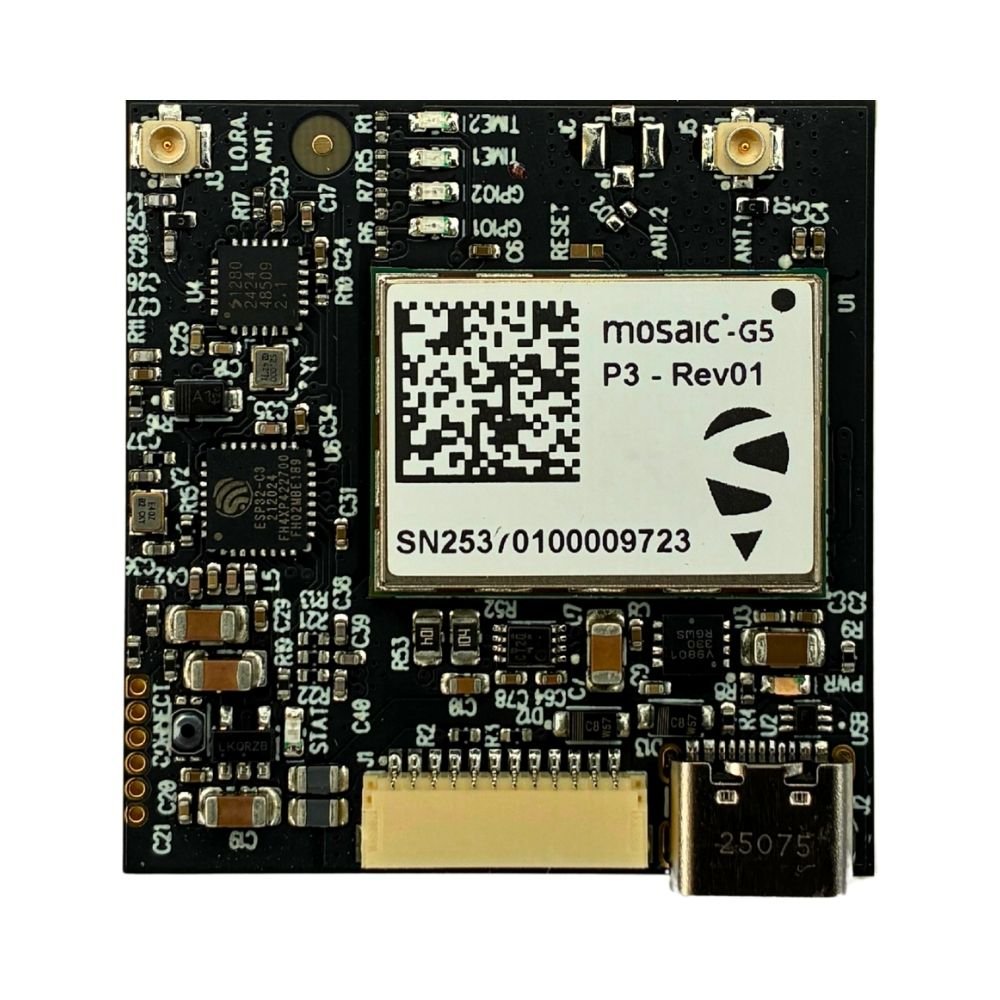

mosaic-G5 RTK whith LoRa technology GNSS receiver board, USB-C / JST connectors
mosaic-G5 RTK whith LoRa technology GNSS receiver board, USB-C / JST connectors
Tax excluded
mosaic-G5 all-constellation multi-frequency top-performance high precision RTK GNSS receiver with LoRa RTK corrections receiver
mosaic-G5 RTK GNSS with integrated LoRa delivers reliable centimeter-level accuracy — perfect for surveying, agriculture, construction, drones, and even multi-drone swarms, all without relying on mobile networks.
mosaic-G5 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.
AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation.
APME+ a posteriori multipath estimator for code and phase multipath mitigation.
LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations
IONO+ provides advanced protection against ionospheric disturbances
RAIM+ receiver autonomous integrity monitoring
Available in stock (>10 pcs)
Couldn't load pickup availability
Product Features
Product Features
An RTK GNSS receiver with integrated LoRa is ideal for applications where centimeter-level accuracy is required in areas with limited or no internet access. The LoRa link provides a low-power, long-range channel for receiving RTCM corrections directly from a local base station.
This makes it especially suitable for:
-
Surveying and construction – reliable corrections without mobile networks.
-
Precision agriculture – cost-effective guidance for tractors and field equipment.
-
Drones and UAVs – lightweight, power-efficient correction channel.
-
Drone swarms and multi-drone operations – one base station can serve many drones simultaneously, ensuring synchronized, high-precision positioning.
-
Autonomous robots and vehicles – dependable local infrastructure for navigation.
In short: RTK + LoRa offers simple, efficient, and scalable centimeter-level positioning for both single devices and coordinated fleets.
- GNSS antenna input with IPEX connector
- LoRa antenna input with IPEX connector
- LoRa configuration switch
- USB C connector

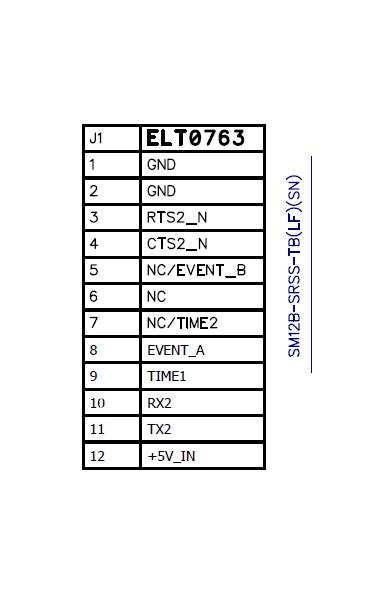

- 12-pin JST SH connector
- USB and one UART with hardware flow control interface
- Technological MCU programming 6-pin connector
- EVENTA, EVENTB: 3.3V LVTTL, 5V-tolerant, protected, high-impedance external event inputs
- PPS output (3.3V)
- Time pulse LED: Green, Power LED: Purple, PVT LED (GPIO2): Red, RTK LED (GPIO1): Orange
- RxTools Control and Analysis Software
- Extensive visualization and evaluation features
- Dimensions 37x39 mm
- Weight: 10 gr.
- Fully assembled, tested and ready to use
WARNING: RX and CTS inputs shall not be driven while input supply not present.
mosaic-G5 Module Specifications
mosaic-G5 Module Specifications
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| mosaic-G5 all-constellation multi-frequency top-performance high precision RTK GNSS receiver with LoRa RTK corrections receiver mosaic-G5 RTK GNSS with integrated LoRa delivers reliable centimeter-level accuracy — perfect for surveying, agriculture, construction, drones, and even multi-drone swarms, all without relying on mobile networks. mosaic-G5 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals. AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation. APME+ a posteriori multipath estimator for code and phase multipath mitigation. LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations IONO+ provides advanced protection against ionospheric disturbances RAIM+ receiver autonomous integrity monitoring An RTK GNSS receiver with integrated LoRa is ideal for applications where centimeter-level accuracy is required in areas with limited or no internet access. The LoRa link provides a low-power, long-range channel for receiving RTCM corrections directly from a local base station. This makes it especially suitable for:
In short: RTK + LoRa offers simple, efficient, and scalable centimeter-level positioning for both single devices and coordinated fleets.
WARNING: RX and CTS inputs shall not be driven while input supply not present. | Regular price
€369,99
Sale price
€369,99
Regular price
| ELTEHS |
Choose your option
mosaic-G5 RTK whith LoRa technology GNSS receiver board, USB-C / JST connectors
mosaic-G5 RTK whith LoRa technology GNSS receiver board, USB-C / JST connectors
Tax excluded
Available in stock (>10 pcs)
mosaic-G5 all-constellation multi-frequency top-performance high precision RTK GNSS receiver with LoRa RTK corrections receiver
mosaic-G5 RTK GNSS with integrated LoRa delivers reliable centimeter-level accuracy — perfect for surveying, agriculture, construction, drones, and even multi-drone swarms, all without relying on mobile networks.
mosaic-G5 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.
AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation.
APME+ a posteriori multipath estimator for code and phase multipath mitigation.
LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations
IONO+ provides advanced protection against ionospheric disturbances
RAIM+ receiver autonomous integrity monitoring
An RTK GNSS receiver with integrated LoRa is ideal for applications where centimeter-level accuracy is required in areas with limited or no internet access. The LoRa link provides a low-power, long-range channel for receiving RTCM corrections directly from a local base station.
This makes it especially suitable for:
-
Surveying and construction – reliable corrections without mobile networks.
-
Precision agriculture – cost-effective guidance for tractors and field equipment.
-
Drones and UAVs – lightweight, power-efficient correction channel.
-
Drone swarms and multi-drone operations – one base station can serve many drones simultaneously, ensuring synchronized, high-precision positioning.
-
Autonomous robots and vehicles – dependable local infrastructure for navigation.
In short: RTK + LoRa offers simple, efficient, and scalable centimeter-level positioning for both single devices and coordinated fleets.
- GNSS antenna input with IPEX connector
- LoRa antenna input with IPEX connector
- LoRa configuration switch
- USB C connector
- 12-pin JST SH connector
- USB and one UART with hardware flow control interface
- Technological MCU programming 6-pin connector
- EVENTA, EVENTB: 3.3V LVTTL, 5V-tolerant, protected, high-impedance external event inputs
- PPS output (3.3V)
- Time pulse LED: Green, Power LED: Purple, PVT LED (GPIO2): Red, RTK LED (GPIO1): Orange
- RxTools Control and Analysis Software
- Extensive visualization and evaluation features
- Dimensions 37x39 mm
- Weight: 10 gr.
- Fully assembled, tested and ready to use
WARNING: RX and CTS inputs shall not be driven while input supply not present.
