Product Features

Lightweight, powerful, and dependable — the mosaic-G5 ultraLight RTK GNSS Smart Antenna is the ideal choice for next-generation UAVs, autonomous systems, and precision applications that demand uncompromised performance in a compact form factor.

Device Features:

Based on Septentrio mosaic-G5 module with integrated multi-band RF front-end and high-precision positioning engine
Advanced multi-frequency RTK engine for robust centimeter-level accuracy worldwide, supports positioning across all major constellations and frequencies
AIM+ technology providing interference suppression, anti-jamming, and anti-spoofing
Independent tracking of concurrent signals with built-in anti-jamming and interference mitigation
Low Noise Amplifier (LNA) integrated with the compact helical antenna
High Gain: 28 dB typ. from antenna
Axial ratio: 3 dB max.
Tight Phase Center Variation (PCV)
Power supply: 5 VDC
Integrated 3-axis digital compass sensor RM3100 for accurate heading and orientation

Physical Characteristics:

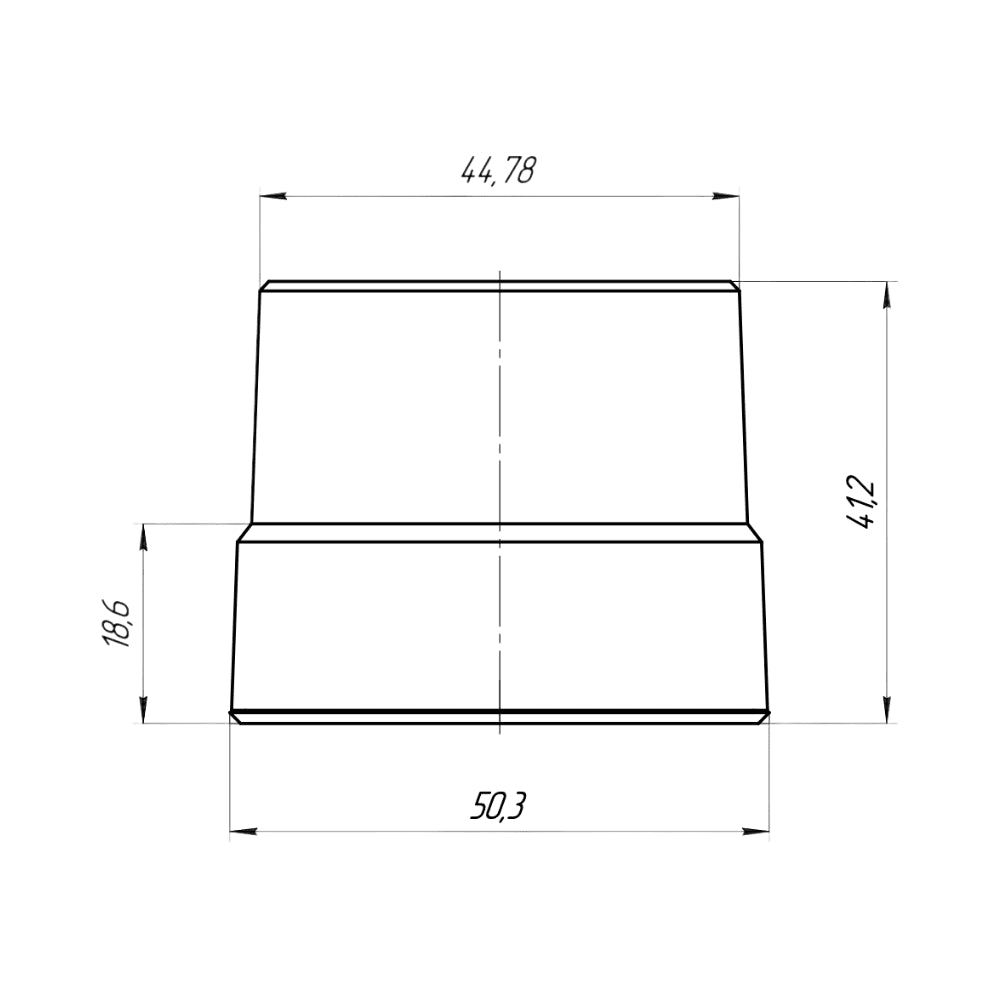

Dimension: Ø50x41 mm
Weight: 34 gr.
Water and Dust Resistance: IP55
Operating Temperature: -10 °C ~ +60 °C

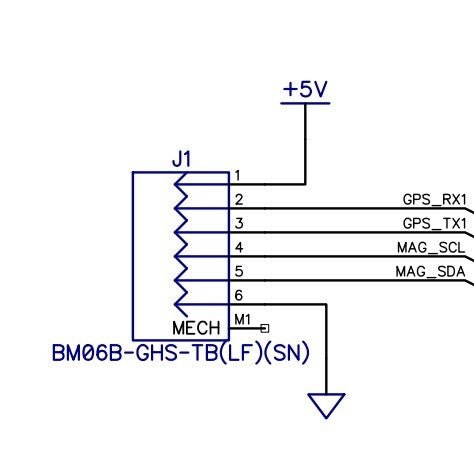

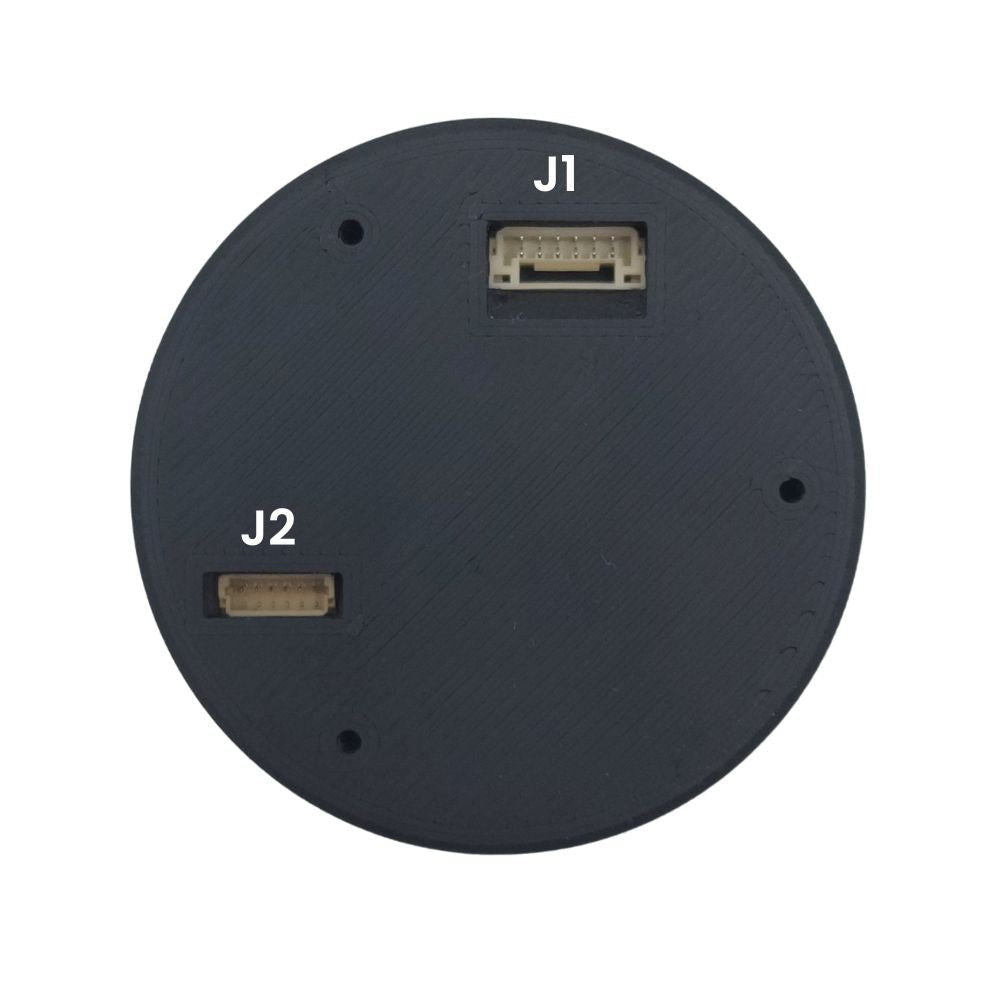

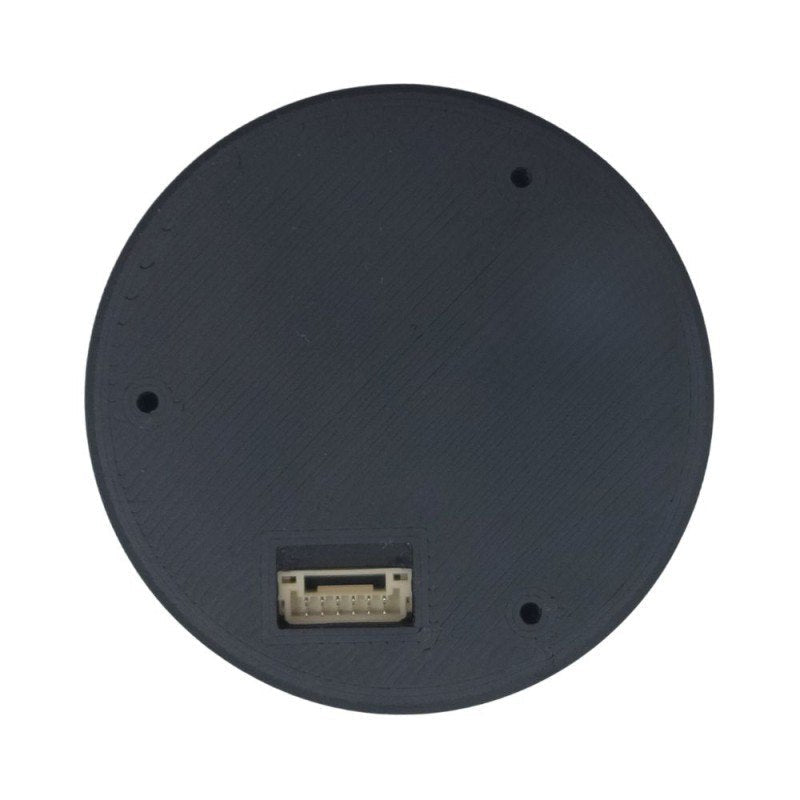

Connector type: JST SH 1 mm 6 pin, JST GH 1.25 mm 6 pin

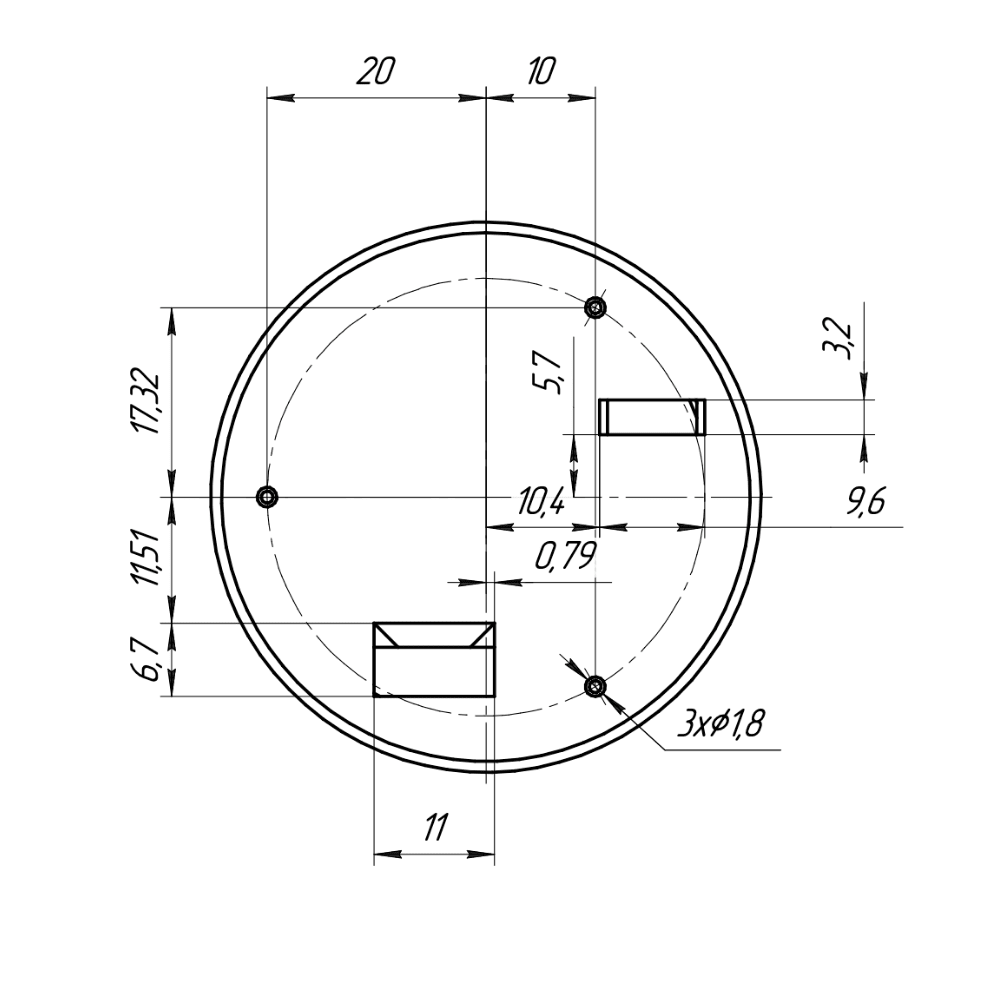

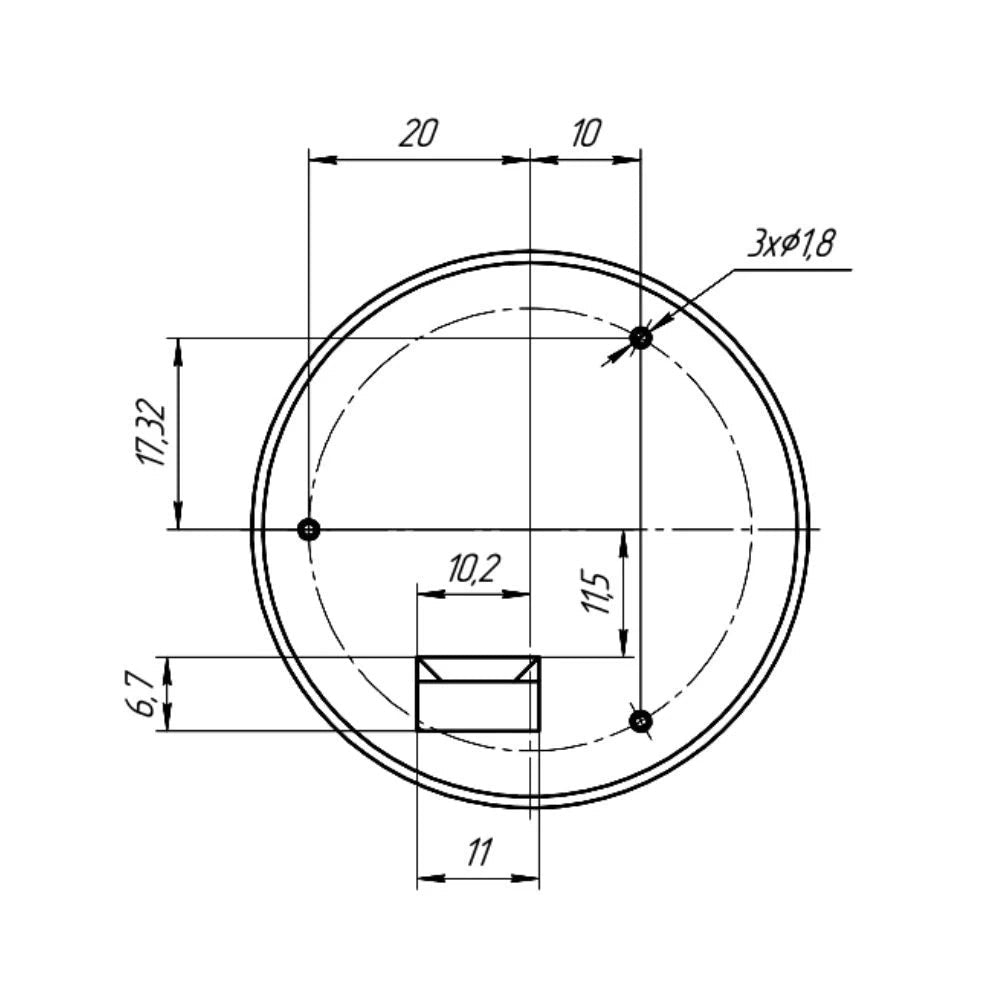

Mounting Options: Waterproof 3M double-sided tape, Screw mount
RoHS & Reach Compliant
Fully assembled, tested, sealed, and ready for use

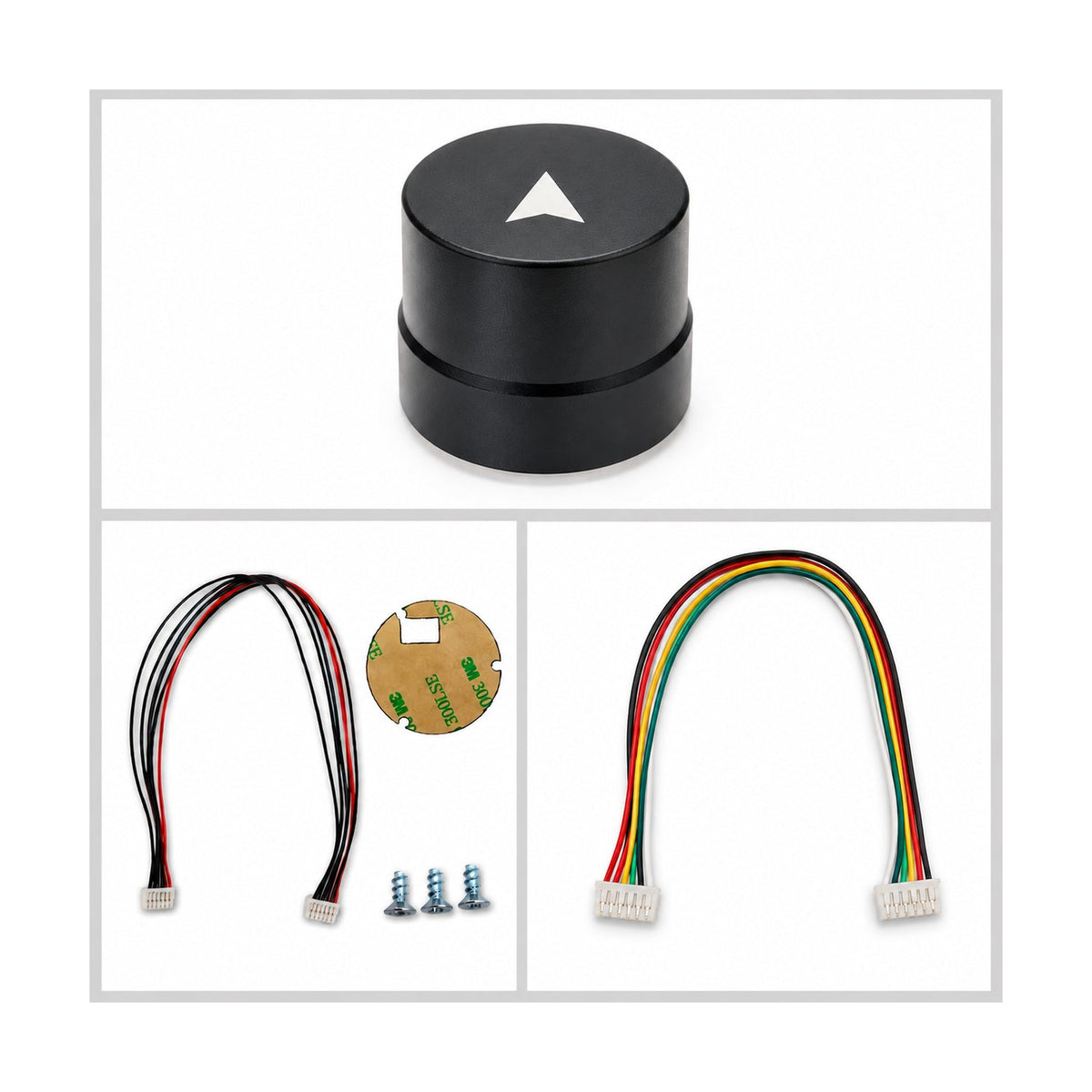

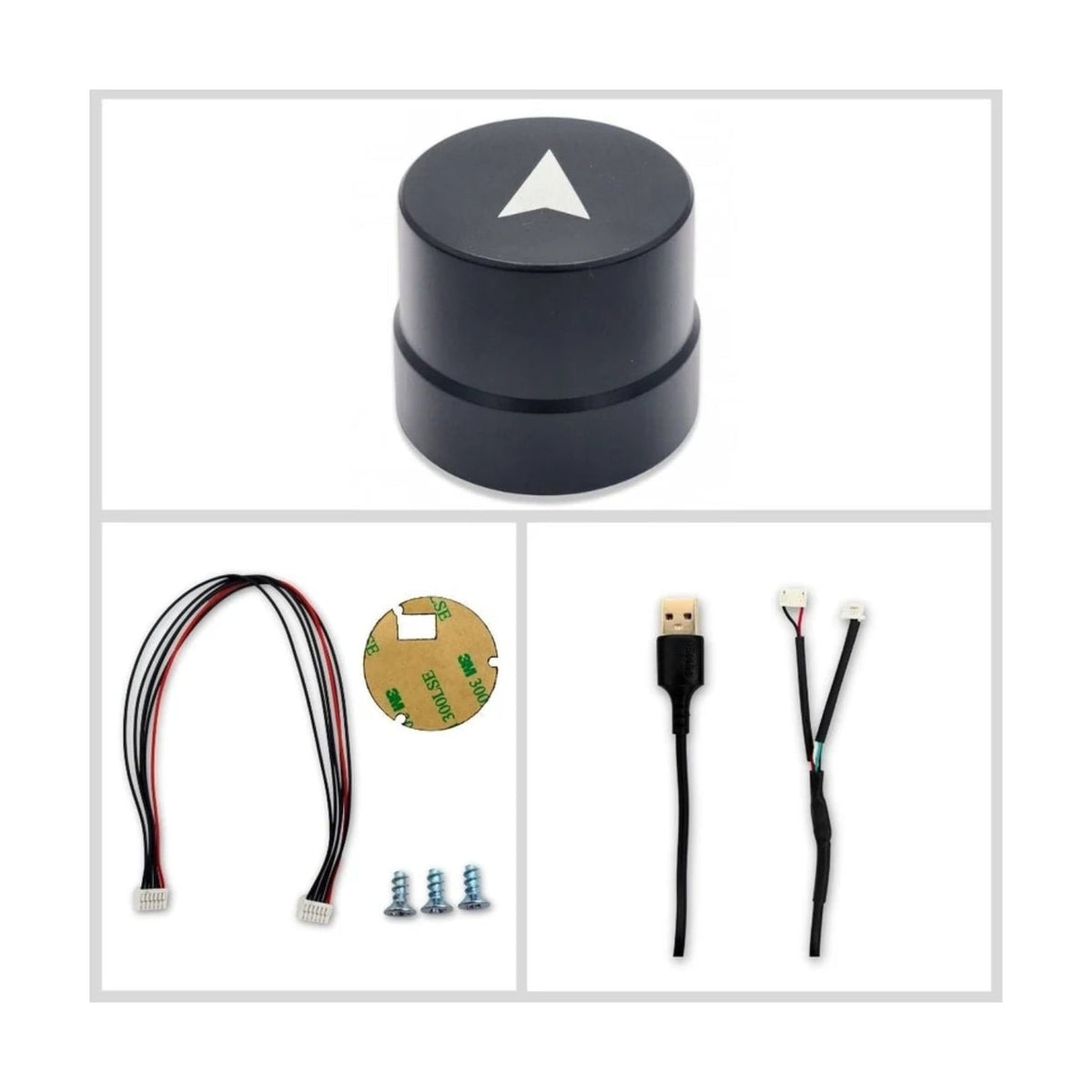

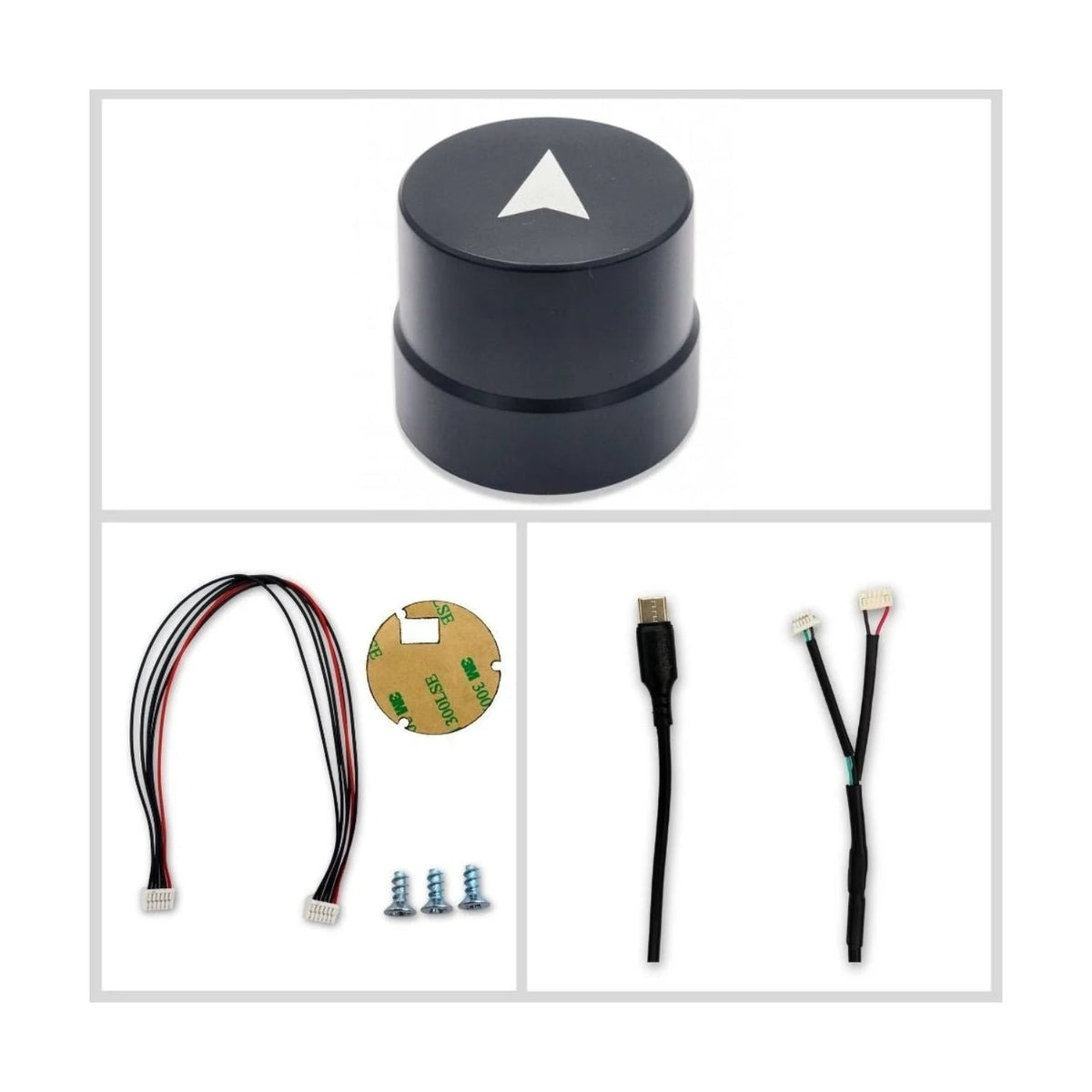

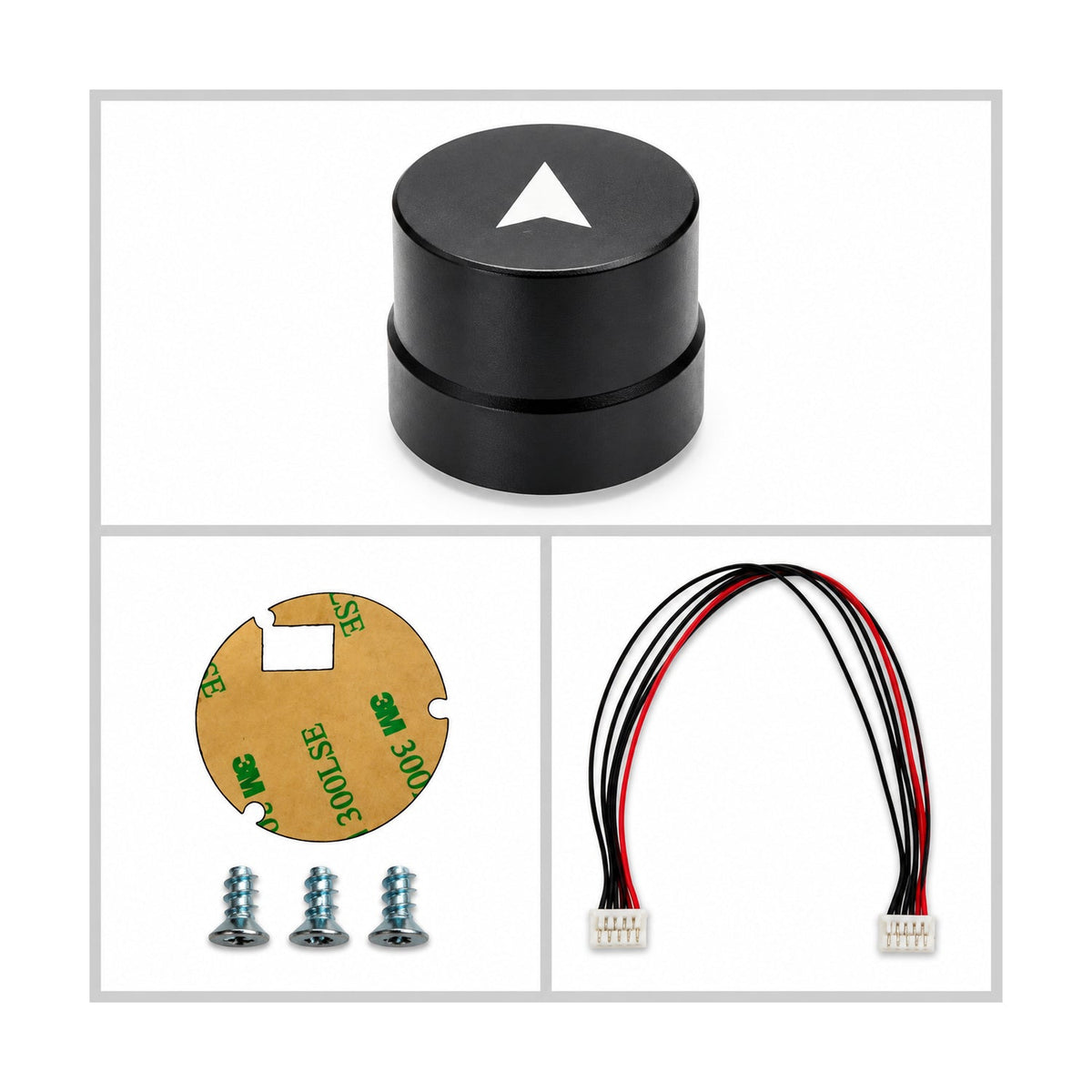

Kit included:

Smart antenna – 1 piece
Cable 200mm JST GH male 6 pin to 6 pin compatible with Pixhawk – 1 piece
Cable 100 mm JST SH 1.0 mm 6 pin to 6 pin – 1 piece
Waterproof 3M double-sided tape – 1 piece
Screws 2.5x6 – 3 pieces

mosaic-G5 Module Specifications

789 hardware channels for simultaneous tracking of all visible supported satellite signals
5 constellations RTK engine (rover) and advanced RTK technology
Full raw measurement data
AIM+: Industry leading Anti-jamming, Anti-spoofing Interference Monitoring and Mitigation
IONO+: Advanced protection against ionospheric disturbances to GNSS signals
APME+: a posteriori multipath estimator for code and phase multipath mitigation
LOCK+: superior tracking robustness under heavy mechanical shocks or vibration
RAIM+: Advanced Receiver Autonomous Integrity Monitoring
22.8 x 16.4 x 2.4 mm LGA package

Performance Specifications:

Frequency

GPS: L1C/A, L1C, L2C, L2P(Y), L5
GLONASS: LICA, L2CA, L2P, L3 CDMA
Beidou: B1I, B1C, B2a, B2I, B2b, B3I
Galileo: E1, E5a, E5b, E6
QZSS: L1C/A, L1C/B, L2C, L5, L6*

(*) L6 support and Galileo HAS support will be rolled out via software update

Single point positioning (RMS):

Horizontal: 1.2 m
Vertical: 1.9 m
Time Precision(xPPS out) - 1.4 ns
Event accuracy < 3 ns
Cold start < 35 s
Data Update Rate: 20 Hz

DGPS (RMS):

Horizontal: 0.4 m
Vertical: 0.7 m
Data Update Rate: 20 Hz
Differential Data - RTCM V2.X

RTK (RMS):

Horizontal: 0.6 cm + 0.5 ppm
Vertical: 1cm + 1 ppm
Initialization Time: 7 s
Data Update Rate: 20 Hz
Differential Data - RTCM V3.X (MSM included)
Data Format - NMEA-0183, v2.3, v3.03, v4.0, RINEX v2.x, v3.x, Septentrio Binary Format (SBF), RTCM V3.X (MSM included)

Physical Characteristics:

Packaging: 94 pin LGA
Dimension: 22.8 × 16.4 × 2.4 mm
Weight: 2.2g

Environmental Speciﬁcations:

Working temperature: -40 °C ~ +85 °C
Storage temperature: -55 °C ~ +85°C
Humidity: 5% ~ 95% No condensation
Vibration: IEC 60721-3-5 Profile 5M3, MIL-STD-810H 514.8 Category 4, MIL-STD-810H 516.8 Procedure 1

Communication Interfaces:

2 × UART (LVTTL, up to 4Mbps, one with hardware flow control)
1 × USB (2.0, HS up to 480Mbps)
2 x Event inputs
2 x GPIO
2 x PPS out

* Will be rolled out via software updates

Downloads

mosaic-G5 ultraLight RTK GNSS Smart Antenna

Name: mosaic-G5 ultraLight RTK GNSS Smart Antenna
Brand: ELTEHS
SKU: ELT0757
Price: 449.00 EUR
Availability: InStock

SKU: ELT0757

EAN: 4751046557572

€449,00

Tax excluded

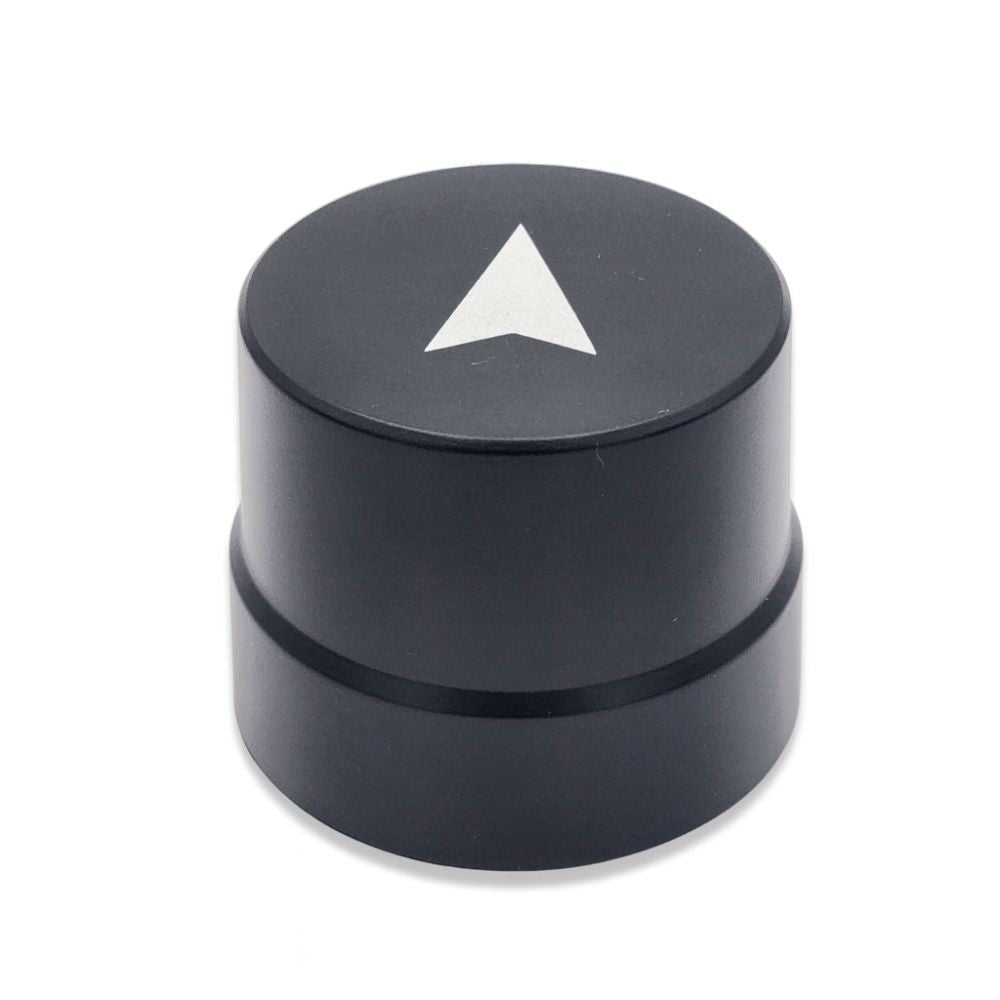

mosaic-G5 UltraLight GNSS Smart Antenna for precision and RTK positioning

mosaic-G5 ultraLight RTK GNSS Smart Antenna is a next-generation, ultra-lightweight RTK GNSS solution built around the powerful mosaic-G5 module, integrated with a high-precision RM3100 compass and a compact helical antenna. It is purpose-designed for weight-sensitive UAVs, robotics, and mobile applications where every gram matters.

With its advanced multi-band RF front-end, the mosaic-G5 ultraLight Smart Antenna is capable of simultaneously tracking all major GNSS constellations — ensuring robust positioning and centimeter-level accuracy when combined with correction data.

Engineered for flexibility, it supports concurrent reception of GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS, delivering a high-performance navigation solution even in challenging environments. Septentrio’s AIM+ advanced anti-jamming and anti-spoofing technology, the mosaic-G5 provides reliable, high-precision positioning where traditional receivers struggle.

Available in stock (>10 pcs)
