UM980 ultraLight RTK GNSS Smart Antenna
UM980 ultraLight RTK GNSS Smart Antenna
Tax excluded
UM980 ultraLight GNSS Smart Antenna for precision and RTK positioning
UM980 ultraLight RTK GNSS Smart Antenna is a next-generation, ultra-lightweight RTK GNSS solution built around the powerful Unicore UM980 module, integrated with a high-precision RM3100 compass and a compact helical antenna. It is purpose-designed for weight-sensitive UAVs, robotics, and mobile applications where every gram matters.
With its advanced multi-band RF front-end, the UM980 ultraLight Smart Antenna is capable of simultaneously tracking all four major GNSS constellations — ensuring robust positioning and centimeter-level accuracy when combined with correction data.
Engineered for flexibility, it supports concurrent reception of GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS, delivering a high-performance navigation solution even in challenging environments. Thanks to its exceptional sensitivity, fast acquisition times, and built-in interference suppression, the UM980 ultraLight provides reliable, high-precision positioning where traditional receivers struggle.
Lightweight, powerful, and dependable — the UM980 ultraLight RTK GNSS Smart Antenna is the ideal choice for next-generation UAVs, autonomous systems, and precision applications that demand top-tier performance without compromise.
Available in stock (>100 pcs)
Couldn't load pickup availability
Product Features
Product Features
Device Features:
- Based on NebulasIV GNSS SoC with integrated RF, base band, and high precision algorithm
- Supports robust high-precision positioning via RTK, PPP, and Galileo HAS correction services.
- All-system multi-frequency RTK engine and advanced RTK technology
- Independent tracking of different frequencies and 60dB narrow band anti-jamming technology
- Low Noise Amplifier (LNA) integrated in antenna
- High Gain: 28 dB typ. from antenna
- Axial ratio: 3 dB max.
- Tight Phase Center Variation (PCV)
- Power supply: 5 VDC
- Two optional UART
- Integrated 3-axis digital compass sensor RM3100 for accurate heading and orientation
Physical Characteristics:
- Dimension: Ø50x41 mm
- Weight: 34 gr.
- IP Rating: IP55
- Operating Temperature: -10 °C ~ +60 °C

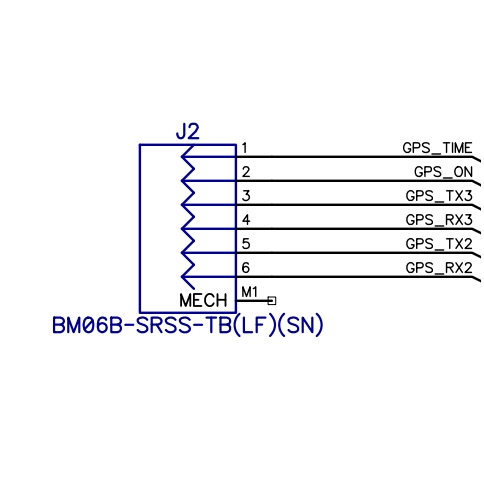

- Connector type: JST SH 6 pin, JST GH 6 pin
- Mounting Options: Waterproof 3M double-sided tape, Screw mount
- RoHS & Reach Compliant
- Fully assembled, tested, sealed, and ready for use
Kit included:
- Smart antenna – 1 piece
- Cable JST GH 1.25 6 pin to 6 pin 200mm – 1 piece
- Cable JST SH 1.0 6 pin to 6 pin 100 mm – 1 piece
- Waterproof 3M double-sided tape – 1 piece
- Screws 2.5x6 – 3 pieces
UM980 Module Specifications
UM980 Module Specifications
Accessories
Cable 200 mm / 400 mm JST GH male 6 pin to 6 pin compatible with Pixhawk
SKU: ELT0480-200Choose your option
Cable 100 mm JST SH male 6 pin to 6 pin, pitch 1 mm
SKU: ELT0481Choose your option
Extender for ultraLight Smart Antennas
SKU: ELT0490-50-200Choose your option
