SAM-M10Q, MAX-M8Q, SAM-M8Q GNSS modules

High-performance u-blox SAM-M10Q, MAX-M8Q, and SAM-M8Q GNSS modules designed for modern space-limited applications. Explore our stock of ultra-low-power receiver boards and patch antenna modules engineered for FPV drones, autonomous UAV flight control, compact asset trackers, and industrial IoT. EU wholesale pricing and fast shipping.

Compare (0/5)

11 products

MAX-M8Q Mic GPS GNSS LIS3MDL SAW LNA Triple Band ANT - ELT0024 - 1

MAX-M8Q Mic GPS GNSS LIS3MDL SAW LNA Triple Band ANT

SKU: ELT0024
€66,99
€66,99
SAM-M10Q GNSS antenna module receiver - ELT0169 - 1

SAM-M10Q GNSS antenna module receiver

SKU: ELT0169
€28,99
€28,99
MAX-M8Q GPS GLONASS BeiDou 18Hz NANO receiver with UF.L connector - ELT0021 - 1

MAX-M8Q GPS GLONASS BeiDou 18Hz NANO receiver with UF.L connector

SKU: ELT0021
€49,99
€49,99
MAX-F10S L1/L5 dual-band GNSS receiver for sub meter-level accuracy with SMA connector - ELT0322 - 1

MAX-F10S L1/L5 dual-band GNSS receiver for sub meter-level accuracy with SMA connector

SKU: ELT0322
€49,99
€49,99
MAX-M10S Ultra Low Power GNSS receiver with SMA connector - ELT0151 - 1

MAX-M10S Ultra Low Power GNSS receiver with SMA connector

SKU: ELT0151
€46,99
€46,99

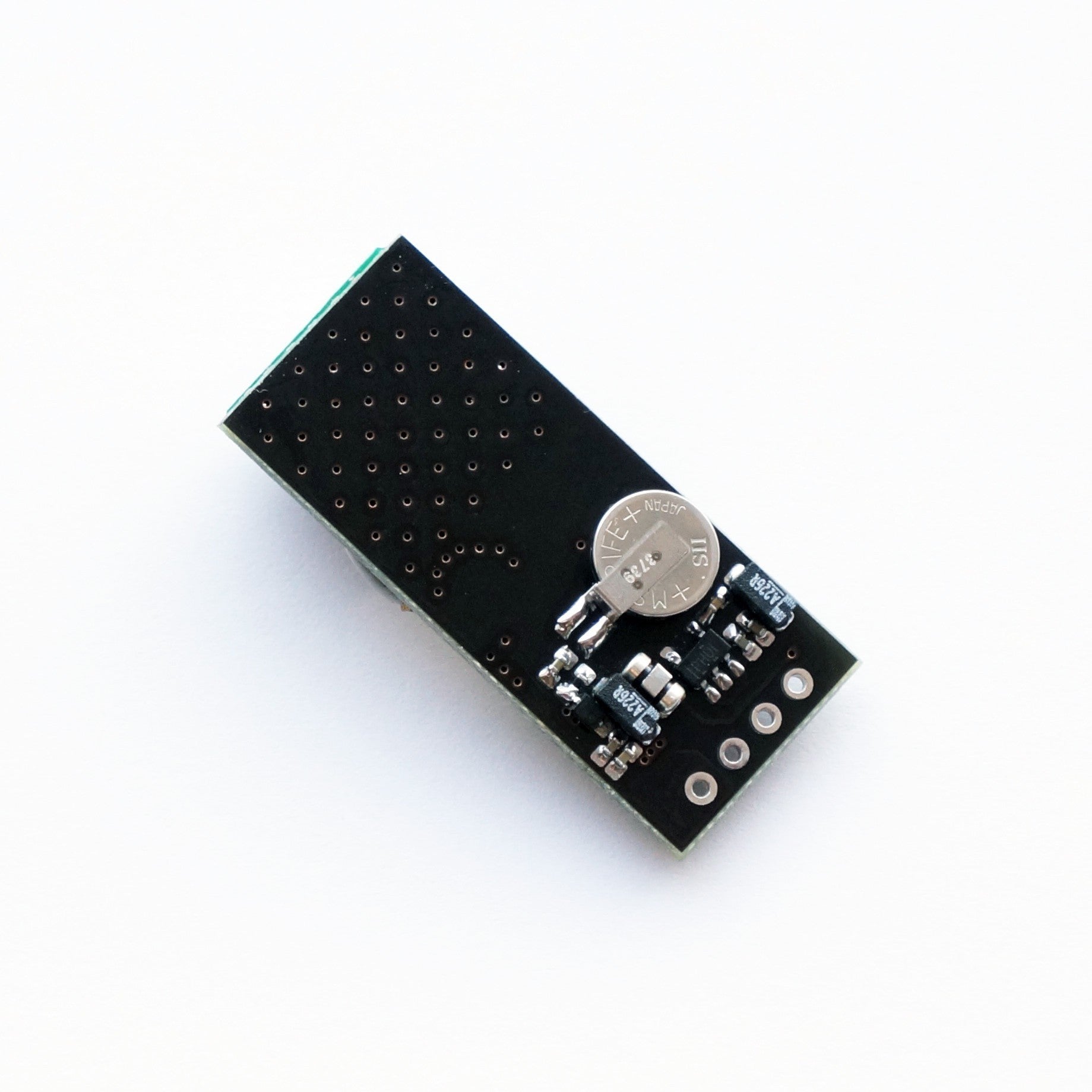

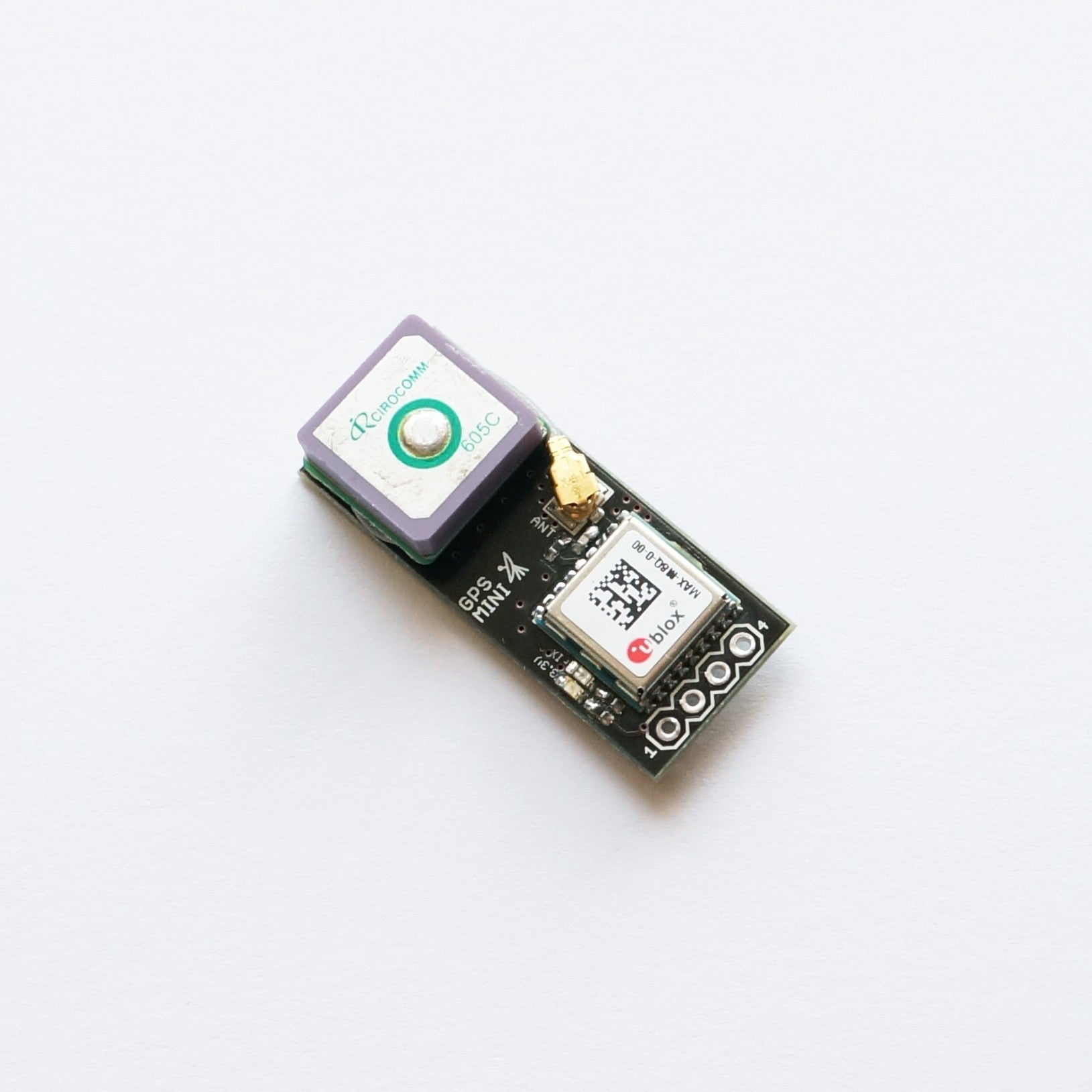

MAX-M8Q GPS/QZSS GLONASS BeiDou 18Hz receiver with Antenna - ELT0020 - 1

MAX-M8Q GPS/QZSS GLONASS BeiDou 18Hz receiver with Antenna

SKU: ELT0020
€55,99
€55,99
MAX-M10S Ultra Low Power GNSS receiver with UF.L connector - ELT0150 - 1

MAX-M10S Ultra Low Power GNSS receiver with UF.L connector

SKU: ELT0150
€49,99
€49,99

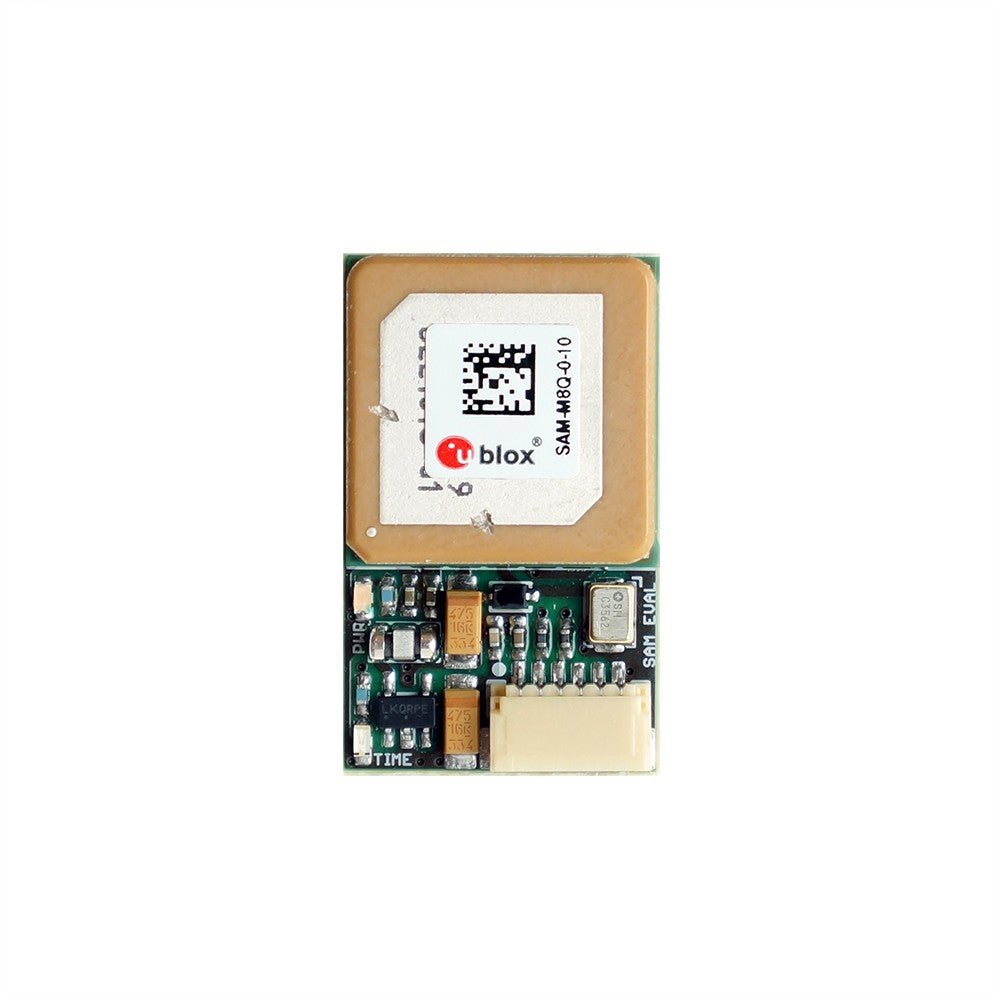

SAM-M8Q GPS, GLONASS, Galileo, QZSS and SBAS receiver - ELT0136 - 1

SAM-M8Q GPS, GLONASS, Galileo, QZSS and SBAS receiver

SKU: ELT0136
€26,99
€26,99
MAX-F10S L1/L5 dual-band GNSS receiver for sub meter-level accuracy with UF.L connector - ELT0324 - 1

MAX-F10S L1/L5 dual-band GNSS receiver for sub meter-level accuracy with UF.L connector

SKU: ELT0324
€49,99
€49,99
MAX-M8Q GPS GLONASS BeiDou 18Hz receiver with SMA connector - ELT0023 - 1

MAX-M8Q GPS GLONASS BeiDou 18Hz receiver with SMA connector

SKU: ELT0023
€44,99
€44,99
MAX-M8Q GPS GLONASS BeiDou 18Hz receiver with UF.L connector - ELT0022 - 1

MAX-M8Q GPS GLONASS BeiDou 18Hz receiver with UF.L connector

SKU: ELT0022
€49,99
€49,99

Ultra-Compact u-blox GNSS Modules: MAX & SAM Series Overview

For designs where millimeter-level board space and fractional gram weight are critical factors, the u-blox MAX and SAM series provide the ultimate positioning solution. At GNSS Store, we supply a comprehensive range of these ultra-low-power modules, transitioning from the reliable M8 architecture to the cutting-edge u-blox M10 platform and dual-band sub-meter MAX-F10S receivers.

Comparing Patch Antenna Modules vs. External Antenna Chips:

  • SAM-M10Q & SAM-M8Q: These are patch antenna modules featuring an integrated surface-mount antenna element. They are ideal for quick integration into portable asset trackers and telematics devices without requiring complex RF design or external antenna trace routing.
  • MAX-M8Q & MAX-M10S: Ultra-small standalone receivers equipped with U.FL or SMA connectors. These modules give developers the freedom to connect high-gain active external antennas, making them the preferred choice for FPV drones and customized UAV robotics where remote antenna placement is mandatory.

Next-Gen Sub-Meter Accuracy

If your project requires precision beyond standard meters but cannot justify a full RTK setup, check out the MAX-F10S dual-band L1/L5 GNSS receiver. By capturing signals across multiple bands simultaneously, it mitigates ionospheric errors, providing sub-meter accuracy in urban environments.
As an established EU-based B2B distributor, GNSS Store guarantees certified original hardware, volume wholesale pricing, and full technical documentation for automated assembly.
