MAX-M8Q GPS GLONASS BeiDou 18Hz receiver with SMA connector
MAX-M8Q GPS GLONASS BeiDou 18Hz receiver with SMA connector
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded

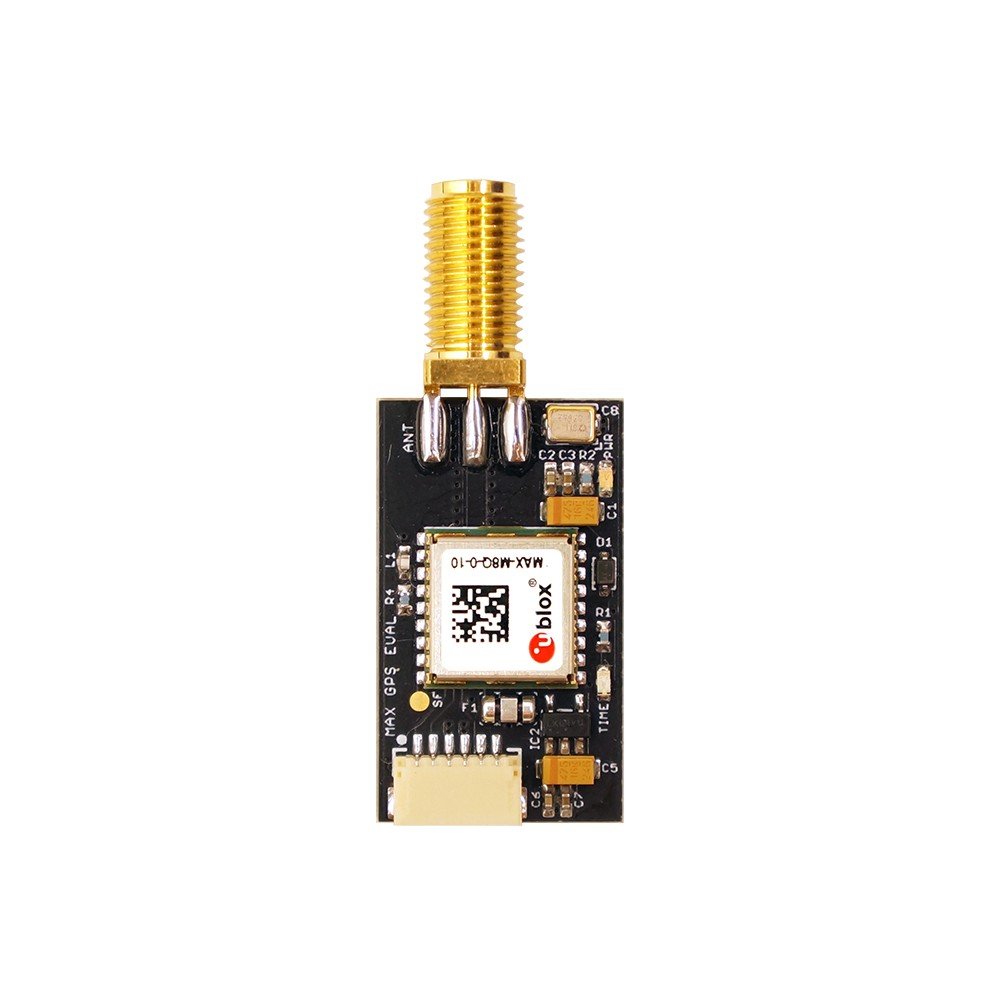

MAX-M8Q u-blox GPS/QZSS GLONASS BeiDou 18Hz receiver Reference Board with SMA antenna connector for your mini UAV systems, Robots, RC, FPV or other projects. Ultra small and light.
The MAX-M8 series of standalone concurrent GNSS modules is built on the exceptional performance of the u-blox M8 engine in the industry proven MAX form factor. With dual-frequency RF front-end, the u-blox M8 concurrent GNSS engine is able to intelligently use the highest amount of visible satellites from two GNSS (GPS, GLONASS and BeiDou) systems for more reliable positioning. The MAX-M8 series is ideal for performance driven applications. The MAX-M8 series provides high sensitivity and minimal acquisition times while maintaining low system power.
The MAX-M8Q provides best performance for passive and active antennas designs. Sophisticated RF-architecture and interference suppression ensure maximum performance even in GNSS-hostile environments. The MAX-M8 combines a high level of integration capability with flexible connectivity options in a miniature package. This makes MAX-M8 perfectly suited for industrial applications with strict size and cost requirements.
The MAX-M8Q is also halogen free (green) which makes it also a perfect solution for consumer applications. The DDC (I2C compliant) interface provides connectivity and enables synergies with most u-blox cellular modules
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
- 72-channel u-blox M8 concurrent GNSS receiver GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1, SBAS L1 C/A: WAAS, EGNOS, MSAS
- Sensitivity: Tracking -167dBm Nav –164 dBm
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- UART(Tx, Rx), and I2C interface
- SMA antenna connector
- Active GNSS antenna support
- Time pulse LED
- Supercapacitor for HOT module start

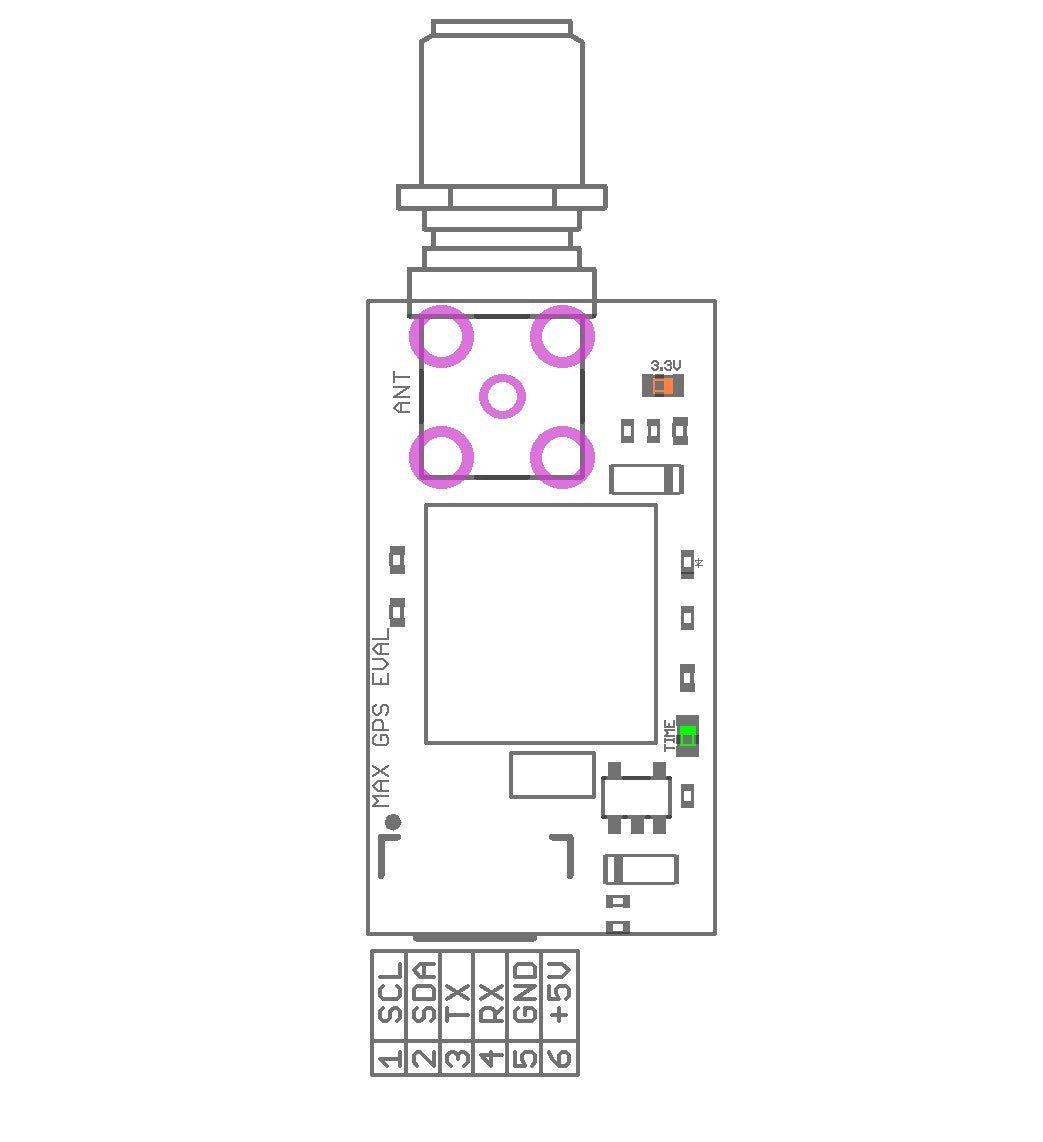

- 6 pin JST SH connectors
- Dimensions: 27x16 mm
- Weight: 7 gr.
- Fully assembled and ready to use
- u-center u-blox Evaluation Software
