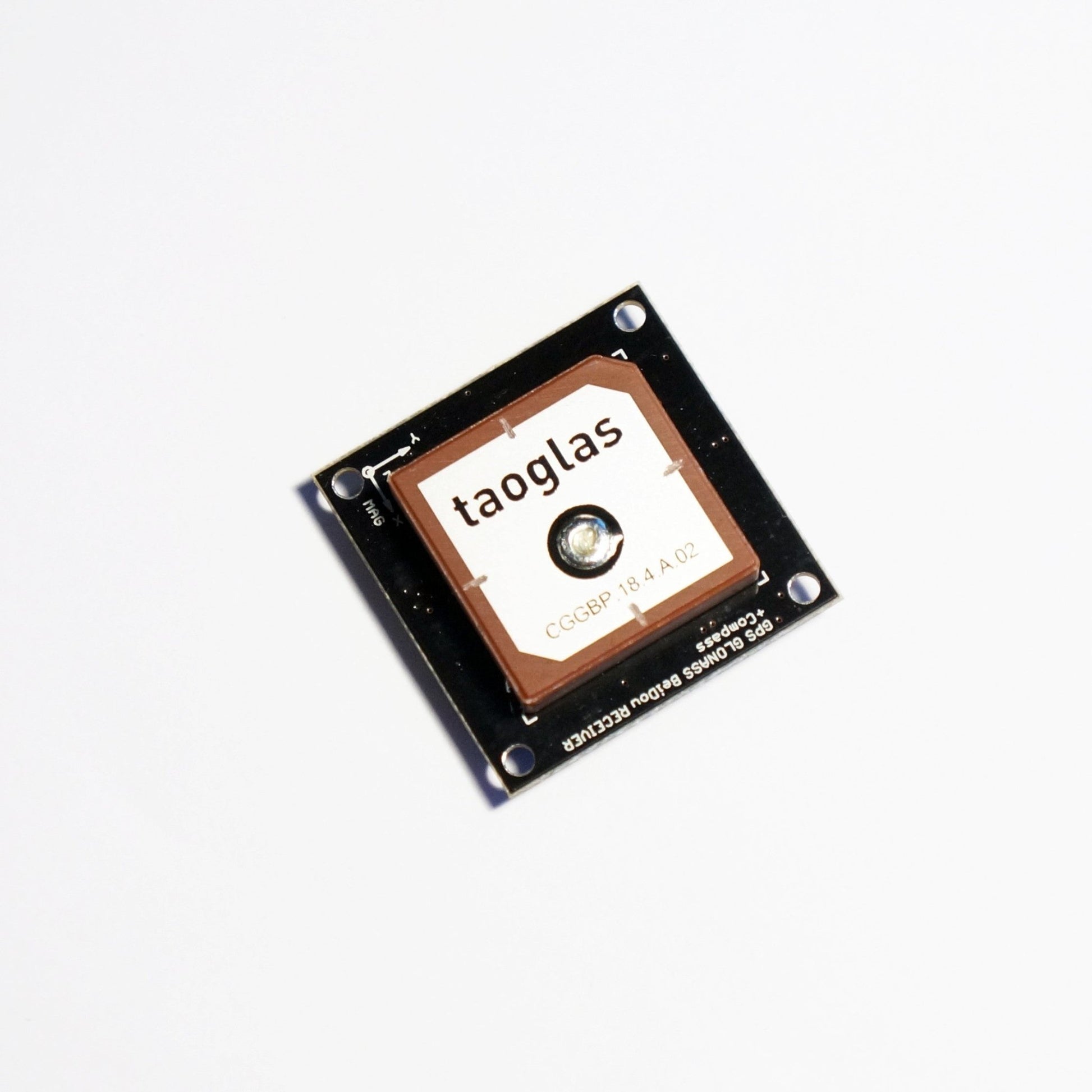

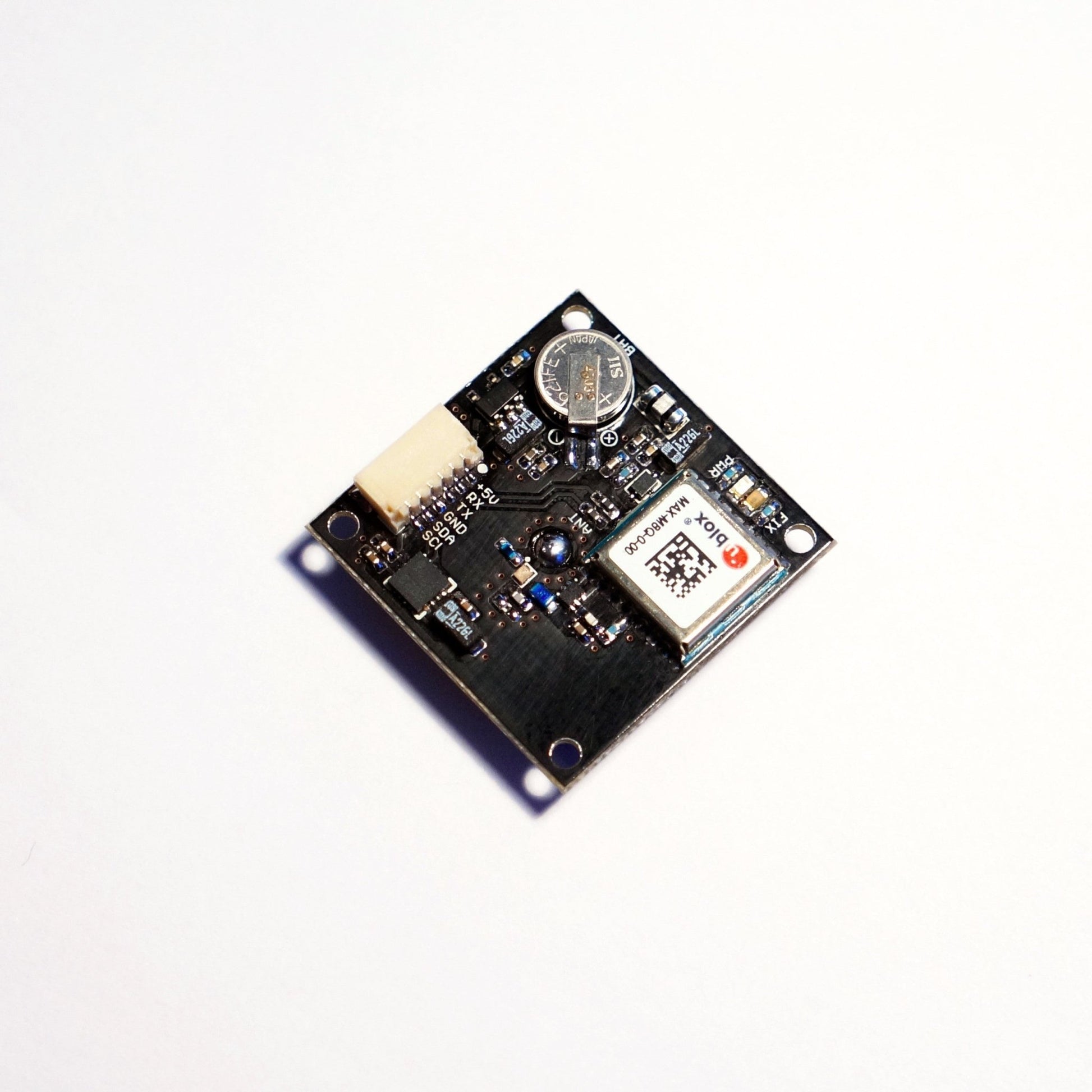

MAX-M8Q u-blox GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS receiver + LIS3MDL Compass with Triple Band antenna + Triple Band Pass filter and LNA
The MAX-M8Q Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The MAX-M8Q Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the MAX-M8Q breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the MAX-M8Q with LIS3MDL Compass
Available in stock (>10 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
- 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C (MAX-M8Q)
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
-
UART (Tx, Rx) and I2C (SDA, SCL)(for LIS3MDL)
- Triple band GPS, Glonass and BeiDou antenna
- Triple band Band Pass filter
- Triple Band LNA
- u-center ublox GPS Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- 1 TTL UART port, 1 I2C port
- Time pulse LED
- Supercapacitor for HOT module start and settings storage
- Build-in LIS3MDL Compass
- Dimensions: 25x25 mm; hole distance 22x22mm
- Weight: 16 gr.
- Fully assembled and ready to use
- Best performance for this weight and size!
