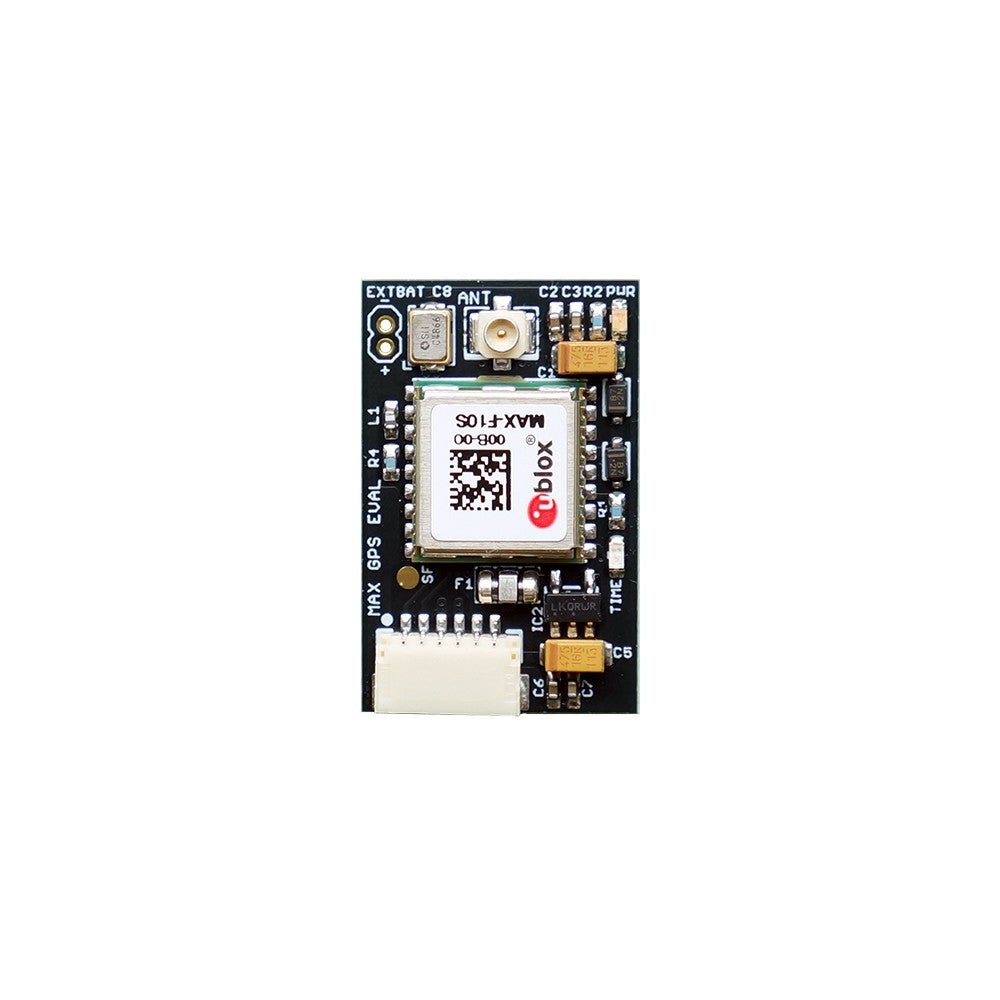

MAX-F10S L1/L5 dual-band GNSS receiver for sub meter-level accuracy with UF.L connector
MAX-F10S L1/L5 dual-band GNSS receiver for sub meter-level accuracy with UF.L connector
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
MAX-F10S L1/L5 dual-band GNSS receiver for sub meter-level accuracy in urban environments receiver Reference Board with UF.L antenna connector for your mini UAV systems, Robots, RC, FPV or other projects. Ultra small and light.
The MAX-F10S module is built on the u-blox F10 dual-band GNSS technology using L1/L5 GNSS bands, which provides solid meter-level position accuracy in urban areas. With its proprietary dual-band multipath mitigation technology, u-blox F10 uses the best signals from the L1/L5 bands to achieve a significantly better position accuracy in urban environments than with the L1 band only. Applications like vehicle tracking and micromobility benefit significantly. MAX-F10S offers a single antenna input. Two SAW filters in series with a LNA in between provide high robustness against RF interference from co-located cellular modems.
Available in stock (>100 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
- u-blox F10 engine GPS L1C/A, L5 Galileo E1B/C, E5a BeiDou B1C, B2a NavIC L5 QZSS L1C/A, L1S, L1Sb, L5 SBAS L1C/A: EGNOS, GAGAN, MSAS, WAAS
- Sensitivity: Tracking and Navignation –167 dBm
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- UART (Tx, Rx) and I2C interface
- UF.L antenna connector
- u-center u-blox Evaluation Software
- Time pulse LED
- Supercapacitor for HOT module start

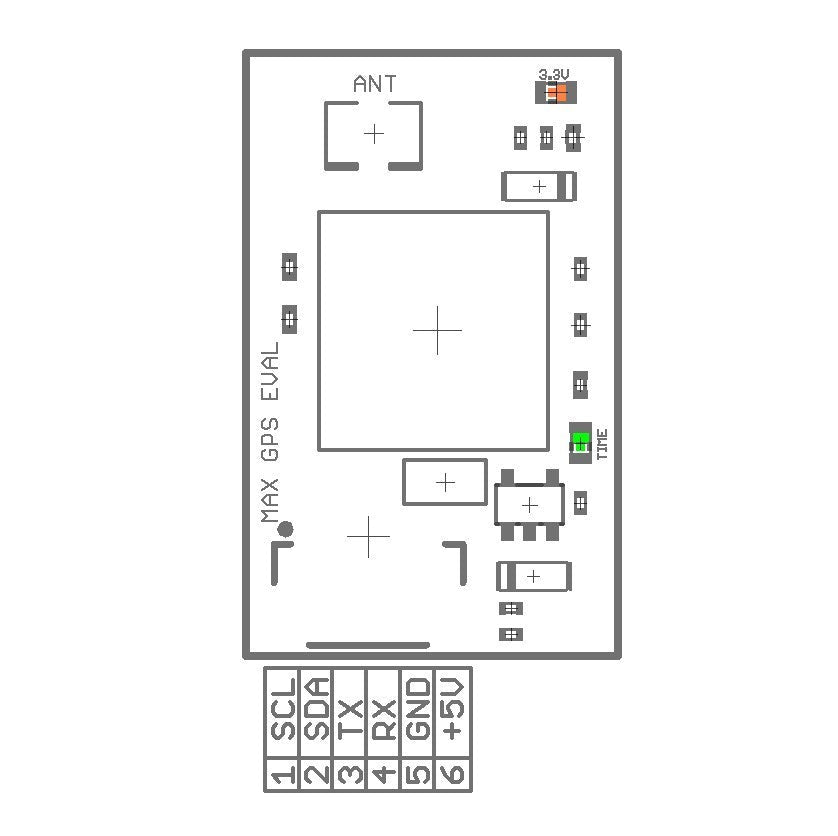

- 6 pin JST SH connectors
- Dimensions: 28x16 mm
- Weight: 7 gr.
- Fully assembled and ready to use
