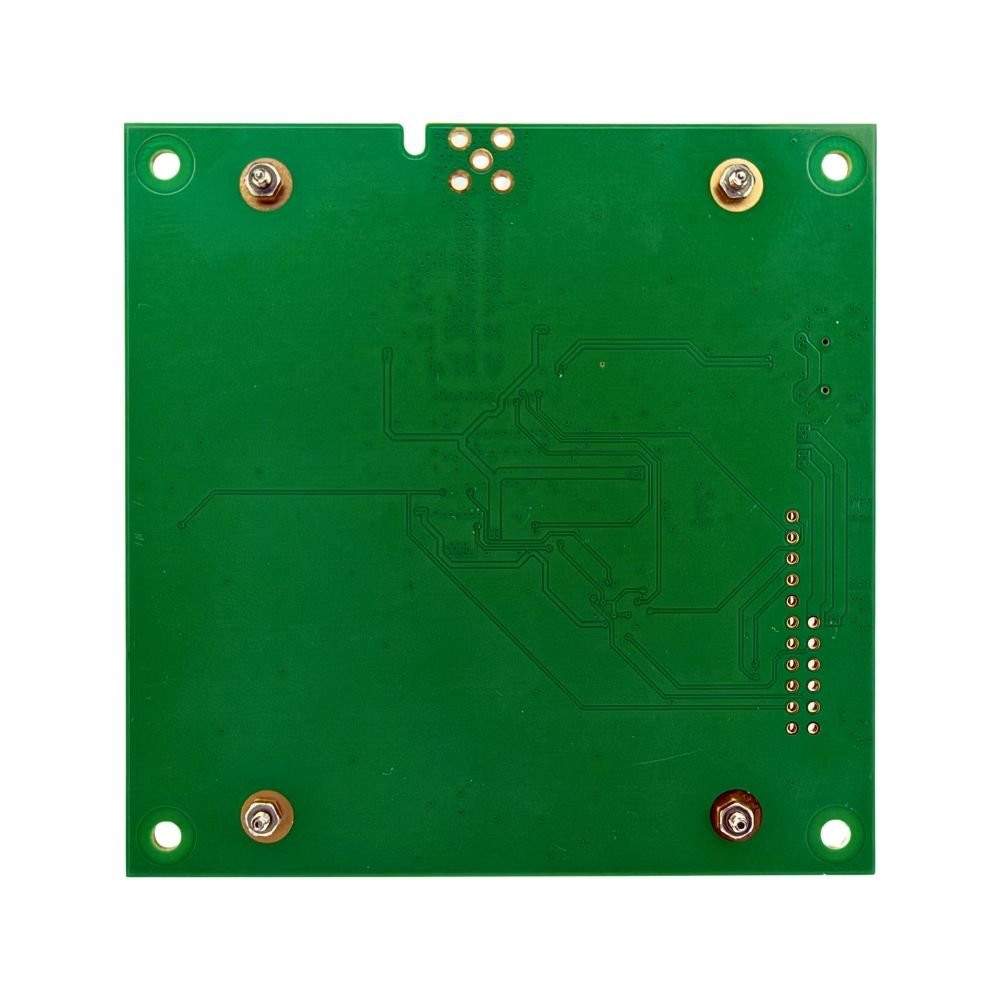

RTK GNSS receiver with 70 mm All band Antenna and RM3100
Tax excluded
mosaic-G5 P6 RTK GNSS Smart Antenna Module with USB-C, RFI Protection, 70 mm All-Band Antenna, and RM3100.
The mosaic-G5 P6 module integrates all-band GNSS with signal modernization and innovative positioning algorithms using Real-time Kinematics (RTK), PPP-RTK, and Precise Point Positioning* (PPP) technologies in a compact, energyefficient form factor. As the most reliable position sensor from the most trusted name in GNSS, mosaic-G5 P6 ensures unparalleled reliability and performance.
Available in stock (>10 pcs)
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
mosaic-G5 P6 concurrently processes signals from the GPS, Galileo, BeiDou, QZSS, and NavIC constellations accross all GNSS bands, including L-band. The highest level of integration on a single-chip receiver enables new system architectures and creates value for industrial navigation and robotics markets in products such as unmanned autonomous vehicles (UAVs), guidance systems, and auto-steering applications. With its very high update rate, the mosaic-G5 P6 module is ideal for control applications, ensuring smooth and reliable operation. For advanced users, its pristine raw data features minimal cycle slips and exceptionally low noise in carrier range and pseudo-range measurements. mosaic-G5 P6 protects system integrity with multi-layered defenses, including a Root of Trust, jamming and spoofing detection, cryptographic authentication of navigation messages through Galileo OSNMA, and more. High-value, application-specific features such as moving baseline are also available.
mosaic-G5 P6 offers support for a range of correction services natively, striking the perfect balance between performance and data usage. It supports standard RTCM corrections for Virtual Reference Stations (VRS) in a Network RTK setup or a local base station setup. SPARTN-format SSR correction service broadcasts are also supported for mass-market applications, and direct reception of PPP global services simplifies deployments.
-

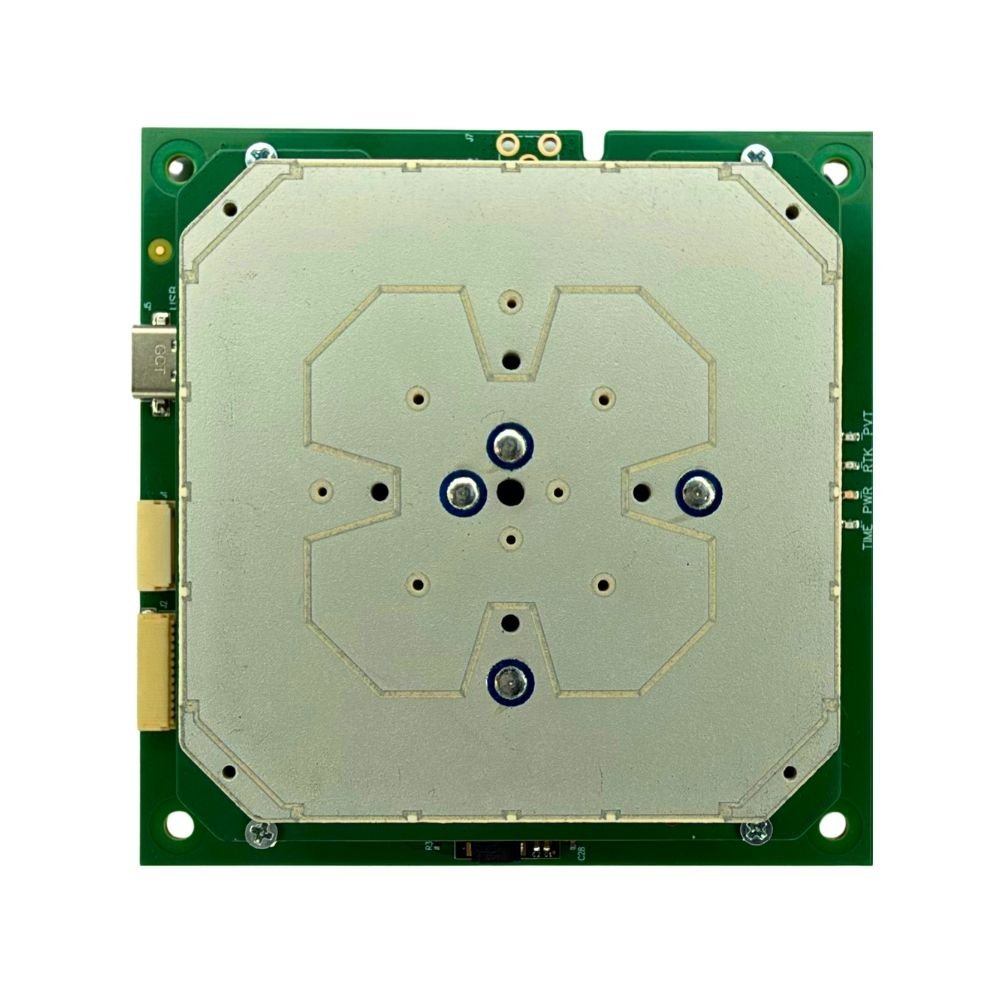

Onboard Multiband patch antenna
- USB C connector
- 2 x UART (one with hardware flow control) interface on JST connector and pins
- EVENTA external event input on JST connector and pins
- PPS output on JST connector and pin
- RM3100 on JST connector and pins
- Time pulse LED: Green; Power LED: Purple; PVT LED (GPIO2): Red; RTK LED (GPIO1): Orange
- RxTools Control and Analysis Software
- Extensive visualization and evaluation features
- Dimensions: 90×90×23.3 mm (26.7 mm including protruding screws)
- Weight: 131 g
- Operating Temperature: -20 to +60 °C
- Fully assembled and ready to use
Accessories
12 pin to 12 pin JST SH Wire Assembly 0.1 m
SKU: ELT0004
Cable 0.2 m / 0.4 m JST GH male 6 pin to 6 pin compatible with Pixhawk
SKU: ELT0480-0.2Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| mosaic-G5 P6 RTK GNSS Smart Antenna Module with USB-C, RFI Protection, 70 mm All-Band Antenna, and RM3100.The mosaic-G5 P6 module integrates all-band GNSS with signal modernization and innovative positioning algorithms using Real-time Kinematics (RTK), PPP-RTK, and Precise Point Positioning* (PPP) technologies in a compact, energyefficient form factor. As the most reliable position sensor from the most trusted name in GNSS, mosaic-G5 P6 ensures unparalleled reliability and performance. mosaic-G5 P6 concurrently processes signals from the GPS, Galileo, BeiDou, QZSS, and NavIC constellations accross all GNSS bands, including L-band. The highest level of integration on a single-chip receiver enables new system architectures and creates value for industrial navigation and robotics markets in products such as unmanned autonomous vehicles (UAVs), guidance systems, and auto-steering applications. With its very high update rate, the mosaic-G5 P6 module is ideal for control applications, ensuring smooth and reliable operation. For advanced users, its pristine raw data features minimal cycle slips and exceptionally low noise in carrier range and pseudo-range measurements. mosaic-G5 P6 protects system integrity with multi-layered defenses, including a Root of Trust, jamming and spoofing detection, cryptographic authentication of navigation messages through Galileo OSNMA, and more. High-value, application-specific features such as moving baseline are also available. mosaic-G5 P6 offers support for a range of correction services natively, striking the perfect balance between performance and data usage. It supports standard RTCM corrections for Virtual Reference Stations (VRS) in a Network RTK setup or a local base station setup. SPARTN-format SSR correction service broadcasts are also supported for mass-market applications, and direct reception of PPP global services simplifies deployments.
| Regular price
€619,99
Sale price
€619,99
Regular price
| ELTEHS |
Choose your option
RTK GNSS receiver with 70 mm All band Antenna and RM3100
Tax excluded
Available in stock (>10 pcs)
mosaic-G5 P6 RTK GNSS Smart Antenna Module with USB-C, RFI Protection, 70 mm All-Band Antenna, and RM3100.
The mosaic-G5 P6 module integrates all-band GNSS with signal modernization and innovative positioning algorithms using Real-time Kinematics (RTK), PPP-RTK, and Precise Point Positioning* (PPP) technologies in a compact, energyefficient form factor. As the most reliable position sensor from the most trusted name in GNSS, mosaic-G5 P6 ensures unparalleled reliability and performance.
mosaic-G5 P6 concurrently processes signals from the GPS, Galileo, BeiDou, QZSS, and NavIC constellations accross all GNSS bands, including L-band. The highest level of integration on a single-chip receiver enables new system architectures and creates value for industrial navigation and robotics markets in products such as unmanned autonomous vehicles (UAVs), guidance systems, and auto-steering applications. With its very high update rate, the mosaic-G5 P6 module is ideal for control applications, ensuring smooth and reliable operation. For advanced users, its pristine raw data features minimal cycle slips and exceptionally low noise in carrier range and pseudo-range measurements. mosaic-G5 P6 protects system integrity with multi-layered defenses, including a Root of Trust, jamming and spoofing detection, cryptographic authentication of navigation messages through Galileo OSNMA, and more. High-value, application-specific features such as moving baseline are also available.
mosaic-G5 P6 offers support for a range of correction services natively, striking the perfect balance between performance and data usage. It supports standard RTCM corrections for Virtual Reference Stations (VRS) in a Network RTK setup or a local base station setup. SPARTN-format SSR correction service broadcasts are also supported for mass-market applications, and direct reception of PPP global services simplifies deployments.
-
Onboard Multiband patch antenna
- USB C connector
- 2 x UART (one with hardware flow control) interface on JST connector and pins
- EVENTA external event input on JST connector and pins
- PPS output on JST connector and pin
- RM3100 on JST connector and pins
- Time pulse LED: Green; Power LED: Purple; PVT LED (GPIO2): Red; RTK LED (GPIO1): Orange
- RxTools Control and Analysis Software
- Extensive visualization and evaluation features
- Dimensions: 90×90×23.3 mm (26.7 mm including protruding screws)
- Weight: 131 g
- Operating Temperature: -20 to +60 °C
- Fully assembled and ready to use
