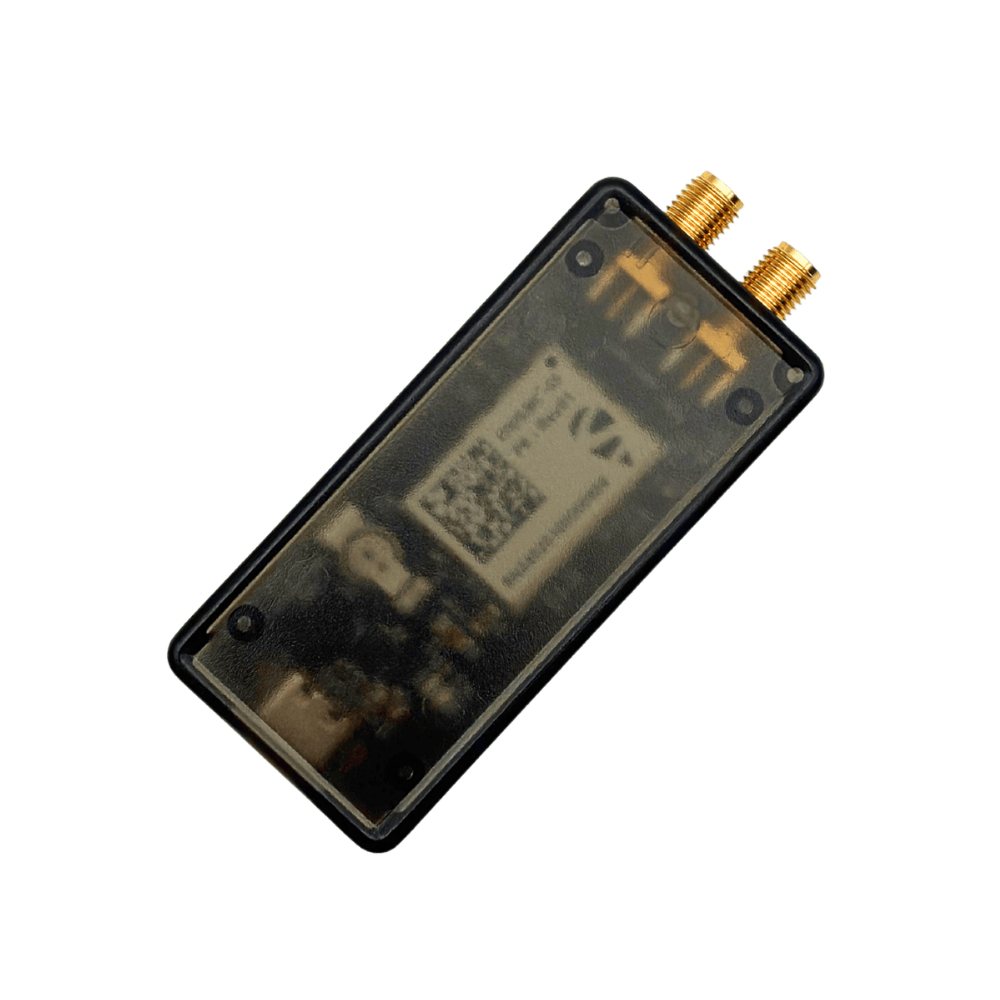

mosaic-G5 T GNSS timing dongle
mosaic-G5 T GNSS timing dongle
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
Key Features:
- PPS resolution: 1.4 ns
- Event accuracy: < 3 ns
- All-constellation, multi-frequency GNSS timing
- Advanced interference and spoofing protection (AIM+ Premium)
- High integrity and reliability under challenging conditions (RAIM+ & IONO+)
- Ultra-compact, low-power design for high-volume integration
Available in stock (>10 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
mosaic-G5T all-constellation multi-frequency top-performance high-precision timing GNSS receiver
mosaic-G5T is an ultra-compact, low-power GNSS timing receiver module engineered for resilient, high-precision time and frequency synchronization in critical infrastructure and other environments where dependable timing is essential. Built on the latest mosaic-G5 technology, mosaic-G5T delivers the performance and robustness expected from Septentrio timing solutions while optimizing size, weight, and power for high-volume applications.
- Antenna input with SMA connector
- PPS output with SMA connector
- USB A connector
- Time pulse LED: Green, Power LED: Purple, LED (GPIO1): Red, LED (GPIO2): Orange
- RxTools Control and Analysis Software
- Extensive visualization and evaluation features
- Dimensions 65x30x15.5 mm
- Weight: 20 g
- Fully assembled, tested and ready to use
mosaic-G5 T Module Specifications
mosaic-G5 T Module Specifications
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| Key Features:
mosaic-G5T all-constellation multi-frequency top-performance high-precision timing GNSS receivermosaic-G5T is an ultra-compact, low-power GNSS timing receiver module engineered for resilient, high-precision time and frequency synchronization in critical infrastructure and other environments where dependable timing is essential. Built on the latest mosaic-G5 technology, mosaic-G5T delivers the performance and robustness expected from Septentrio timing solutions while optimizing size, weight, and power for high-volume applications. With dedicated inputs for clock and frequency synchronization and support for all available GNSS constellations and frequencies, mosaic-G5T ensures maximum uptime and timing continuity even under challenging conditions such as interference or signal degradation. It supports precise timing with nanosecond-level accuracy and provides reliable PPS pulses for high-resolution synchronization. Optional AtomiChron services enable navigation message authentication (NMA) across multiple GNSS constellations, delivering superior anti-spoofing resilience and sub-nanosecond timing precision when integrated with global timing infrastructures.
AIM+ Premium (Advanced Interference Monitoring and Mitigation) offers robust protection against intentional and unintentional jamming and spoofing using an advanced system of interference detection and mitigation mechanisms. This ensures faster acquisition, continuous operation, and resilience against RF interference in dense electronic environments.
Advanced Receiver Autonomous Integrity Monitoring (RAIM+) continuously checks receiver measurements, quality control, and navigation algorithms. Faulty measurements caused by high multipath or ionospheric disturbances are identified and excluded, enhancing reliability.
IONO+ provides industry-leading protection against ionospheric disturbances, minimizing the impact of ionosphere-induced signal corruption and maintaining consistent GNSS timing performance across varied environments.
| Regular price
€339,99
Sale price
€339,99
Regular price
| GNSS Store |
Choose your option
mosaic-G5 T GNSS timing dongle
mosaic-G5 T GNSS timing dongle
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
Available in stock (>10 pcs)
Key Features:
- PPS resolution: 1.4 ns
- Event accuracy: < 3 ns
- All-constellation, multi-frequency GNSS timing
- Advanced interference and spoofing protection (AIM+ Premium)
- High integrity and reliability under challenging conditions (RAIM+ & IONO+)
- Ultra-compact, low-power design for high-volume integration
mosaic-G5T all-constellation multi-frequency top-performance high-precision timing GNSS receiver
mosaic-G5T is an ultra-compact, low-power GNSS timing receiver module engineered for resilient, high-precision time and frequency synchronization in critical infrastructure and other environments where dependable timing is essential. Built on the latest mosaic-G5 technology, mosaic-G5T delivers the performance and robustness expected from Septentrio timing solutions while optimizing size, weight, and power for high-volume applications.
- Antenna input with SMA connector
- PPS output with SMA connector
- USB A connector
- Time pulse LED: Green, Power LED: Purple, LED (GPIO1): Red, LED (GPIO2): Orange
- RxTools Control and Analysis Software
- Extensive visualization and evaluation features
- Dimensions 65x30x15.5 mm
- Weight: 20 g
- Fully assembled, tested and ready to use
