mosaic-G5 P3H Dual antenna ultraLight all-band high precision RTK module for heading
mosaic-G5 P3H Dual antenna ultraLight all-band high precision RTK module for heading
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
mosaic-G5 P3H Dual antenna ultraLight all-band high precision RTK module for heading with RM3100
Is a next-generation, ultra-lightweight RTK GNSS solution built around the powerful mosai-G5 P3H module, integrated with a high-precision RM3100 compass and a compact helical antenna. It is purpose-designed for weight-sensitive UAVs, robotics, and mobile applications where every gram matters.
Lightweight, powerful, and dependable — the mosaic-G5 P3H ultraLight GNSS Smart Antenna is the ideal choice for next-generation UAVs, autonomous systems, and precision applications that demand uncompromised performance in a compact form factor.
Available in stock (>10 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
Overview
With its advanced multi-band RF front-end, the mosaic-G5 P3H ultraLight Dual Smart Antenna is capable of simultaneously tracking all major GNSS constellations — ensuring robust positioning and centimeter-level accuracy when combined with correction data.
Engineered for flexibility, it supports concurrent reception of GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS, delivering a high-performance navigation solution even in challenging environments. Thanks to its exceptional sensitivity, fast acquisition times, and Septentrio’s AIM+ advanced anti-jamming and anti-spoofing technology, the mosaic-G5 P3H provides reliable, high-precision positioning where traditional receivers struggle.
With its dual-antenna input, the mosaic-G5 P3H can deliver compass-free yaw information to the controller (commonly referred to as GPS Heading or Moving Baseline Yaw). By using GPS as the yaw reference instead of a traditional compass, it eliminates errors caused by magnetic interference from vehicle motors, electrical systems, or external sources such as metallic structures and power lines. This ensures accurate yaw data for the controller and improves navigation reliability and performance, even in challenging environments.
Device Features:
- Built in professional RM3100 compass
- Supports RTK positioning across all major constellations
- Multi-frequency tracking for robust accuracy and fast initialization
- Built-in status indicators (RTK, TIME, PWR) for quick diagnostics
- SMA antenna connector for external GNSS antenna attachment
- Power supply: 5 VDC
- Compatible with Pixhawk
- Compact, durable enclosure with mounting base — purpose-built for UAVs and robotics
WARNING: RX input shall not be driven while input supply not present.
Physical Characteristics:
- Module Dimension (with mount): 194 x Ø27.5 mm
- Antenna Dimension (with mount): 194 x Ø27.5mm
- Weight: 75 gr + Cable SMA M to SMA F
- Water and Dust Resistance: IP55
- Operating Temperature: -10 °C ~ +60 °C

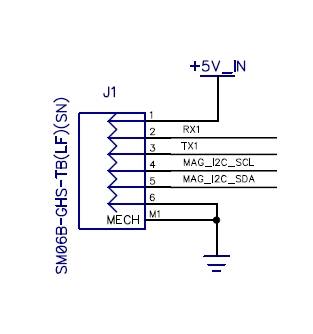

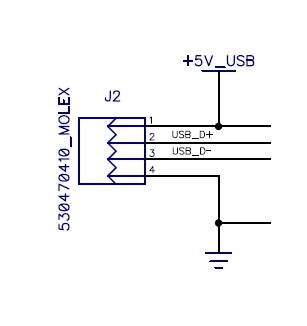

- Connector type: JST GH 6 pin, USB, 2xSMA
- Mounting Options: Screw mount
- RoHS & Reach Compliant
- Fully assembled, tested, and ready for use
Kit included:
- RTK module – 1 piece
- L1/L2/L5 Multiband RTK GNSS Active Quad Helix Antenna - 2 pieces
- Cable 1000 mm SMA M to SMA F - 1 piece (custom length)
- Cable 400mm JST GH male 6 pin to 6 pin compatible with Pixhawk – 1 piece (custom length)
- 3D printed mounting - 3 pieces
- Extender 50 and 150 mm - 1 piece (custom length)
mosaic-G5 P3H Module Specifications
mosaic-G5 P3H Module Specifications
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| mosaic-G5 P3H Dual antenna ultraLight all-band high precision RTK module for heading with RM3100Is a next-generation, ultra-lightweight RTK GNSS solution built around the powerful mosai-G5 P3H module, integrated with a high-precision RM3100 compass and a compact helical antenna. It is purpose-designed for weight-sensitive UAVs, robotics, and mobile applications where every gram matters. Lightweight, powerful, and dependable — the mosaic-G5 P3H ultraLight GNSS Smart Antenna is the ideal choice for next-generation UAVs, autonomous systems, and precision applications that demand uncompromised performance in a compact form factor. OverviewWith its advanced multi-band RF front-end, the mosaic-G5 P3H ultraLight Dual Smart Antenna is capable of simultaneously tracking all major GNSS constellations — ensuring robust positioning and centimeter-level accuracy when combined with correction data. Engineered for flexibility, it supports concurrent reception of GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS, delivering a high-performance navigation solution even in challenging environments. Thanks to its exceptional sensitivity, fast acquisition times, and Septentrio’s AIM+ advanced anti-jamming and anti-spoofing technology, the mosaic-G5 P3H provides reliable, high-precision positioning where traditional receivers struggle. With its dual-antenna input, the mosaic-G5 P3H can deliver compass-free yaw information to the controller (commonly referred to as GPS Heading or Moving Baseline Yaw). By using GPS as the yaw reference instead of a traditional compass, it eliminates errors caused by magnetic interference from vehicle motors, electrical systems, or external sources such as metallic structures and power lines. This ensures accurate yaw data for the controller and improves navigation reliability and performance, even in challenging environments. Device Features:
WARNING: RX input shall not be driven while input supply not present. Physical Characteristics:
Kit included:
