mosaic-G5 ultraLight RTK Receiver with Compass
mosaic-G5 ultraLight RTK Receiver with Compass
Tax excluded
mosaic-G5 ultraLight all-band high precision RTK module with RM3100 compass
Is a next-generation, ultra-lightweight RTK GNSS solution built around the powerful mosaic-G5 module, integrated with a high-precision RM3100 compass, and external helix antenna. It is purpose-designed for weight-sensitive UAVs, robotics, and mobile applications where every gram matters. With its advanced multi-band RF front-end, the mosaic-G5 ultraLight all-band high precision RTK module is capable of simultaneously tracking all major GNSS constellations — ensuring robust positioning and centimeter-level accuracy when combined with correction data.
No stock — available for order
Couldn't load pickup availability
Product Features
Product Features
Engineered for flexibility, it supports concurrent reception of GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS, delivering a high-performance navigation solution even in challenging environments. Thanks to its exceptional sensitivity, fast acquisition times, and Septentrio’s AIM+ advanced anti-jamming and anti-spoofing technology, the mosaic-G5 ultraLight provides reliable, high-precision positioning where traditional receivers struggle.
Lightweight, efficient, and dependable — the mosaic-G5 ultraLight all-band high precision RTK module is the ideal choice for UAVs and robotics platforms demanding uncompromised performance in a compact form factor.
Supported by: PX4 Autopilot, Ardupilot
Device Features:
- Build-in professional RM3100 magnetometer
- On-board low noise 3.3V voltage regulator
- Supports RTK positioning across all major constellations
- Multi-frequency tracking for robust accuracy and fast initialization
- Built-in status indicators (RTK, TIME, PWR) for quick diagnostics
- SMA antenna connector for external GNSS antenna attachment
- Power supply: 5 VDC
- Compact, durable enclosure with mounting base — purpose-built for UAVs and robotics
Physical Characteristics:
- Dimension: 194 x Ø27.5 mm
- Weight with antenna: 55 g
- Water and Dust Resistance: IP55
- Operating Temperature: -10 °C ~ +60 °C
- Connector type: JST GH 6 pin, SMA
- Mounting Options: Screw mount
- RoHS & Reach Compliant
- Fully assembled, tested, and ready for use

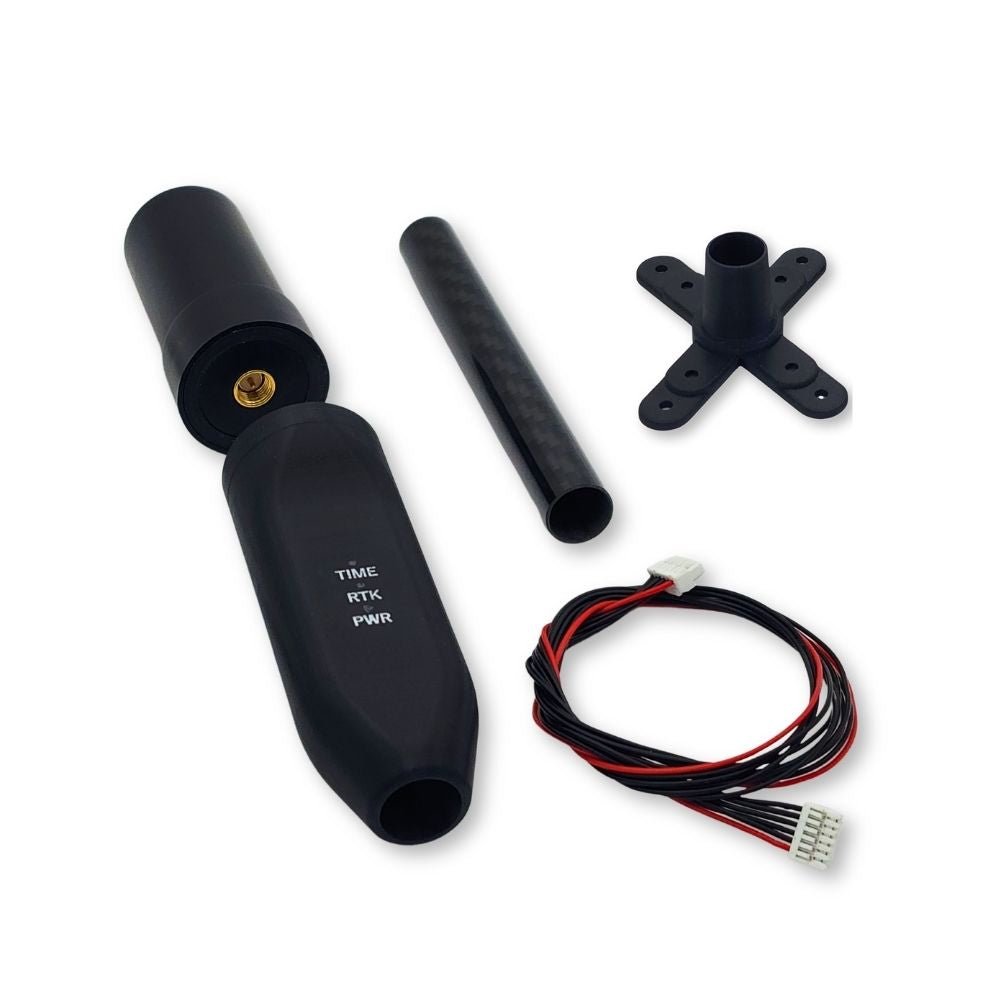

Kit included:
- RTK receiver – 1 piece
- L1/L2/L5 Multiband RTK GNSS Active Quad Helix Antenna - 1 piece
- Cable 400mm JST GH male 6 pin to 6 pin compatible with Pixhawk – 1 piece (custom length)
- 3D printed mounting - 1 piece
- Extender 50 mm - 1 piece (custom length)
