mosaic-H INDUSTRIAL Dual Channel receiver with Ethernet and PoE
mosaic-H INDUSTRIAL Dual Channel receiver with Ethernet and PoE
Tax excluded

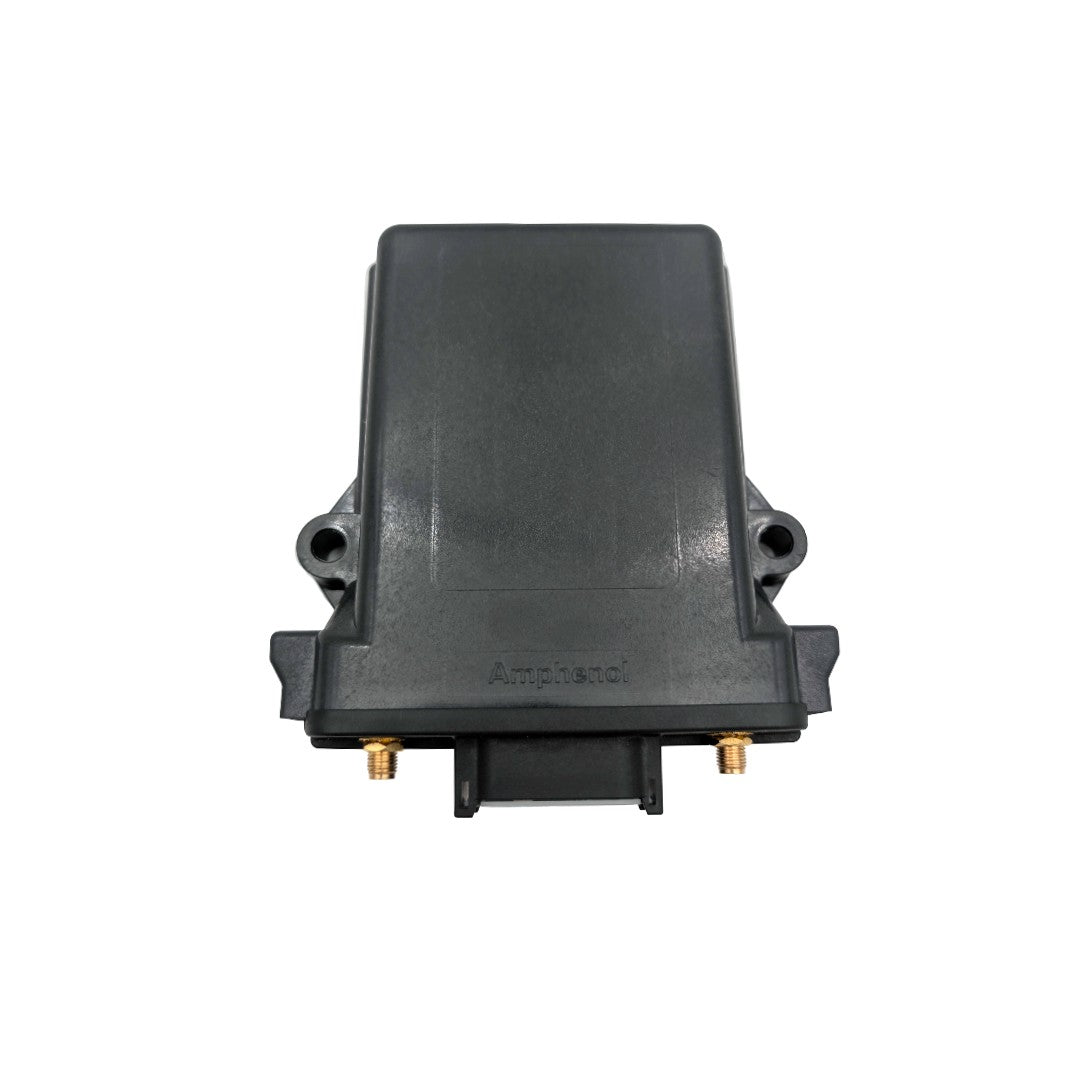

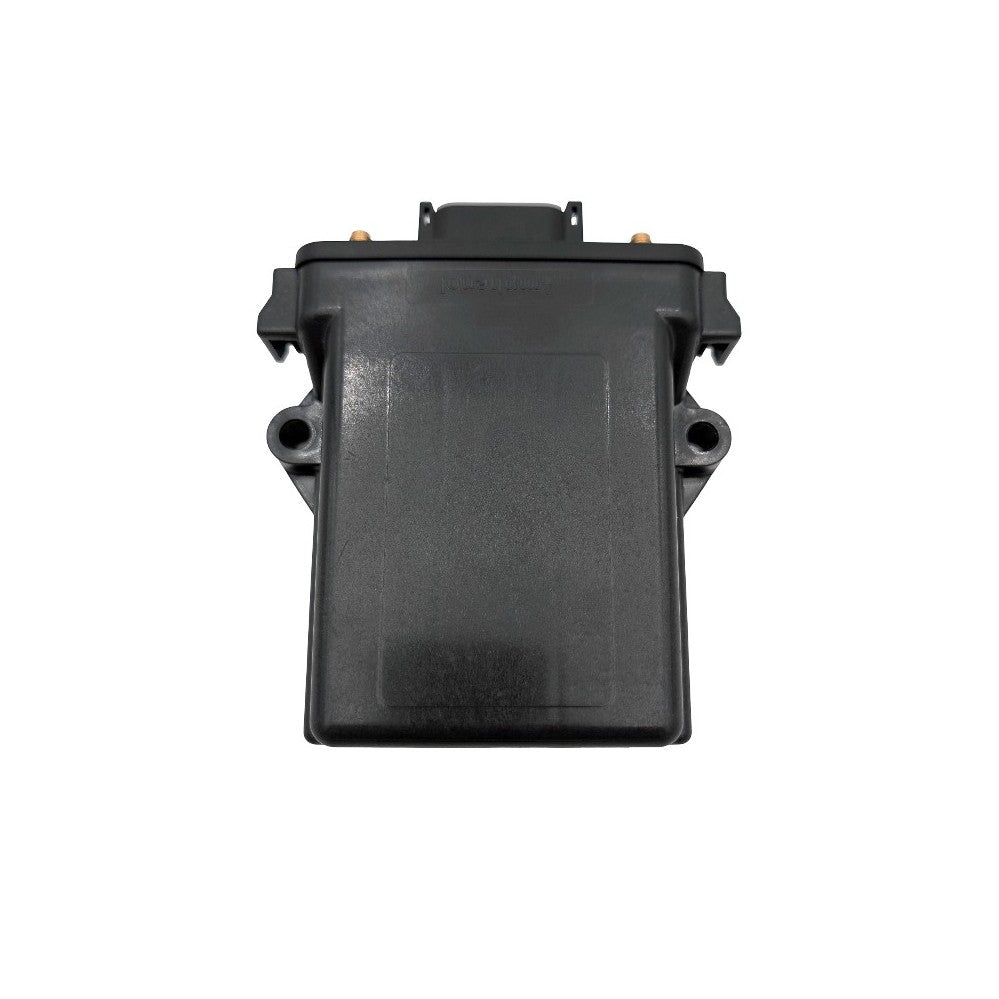

Industrial IP67 dual-channel all-constellation multi-frequency high-precision RTK GNSS receiver based on the mosaic-H engine, with Ethernet and Power over Ethernet (PoE).
Built for permanent outdoor duty. Beyond the two antenna ports, the IP67 / IP69K-rated housing has exactly one opening: a sealed 12-pin industrial connector carrying power, Ethernet, RS-232 and USB through a single mating cable — nothing to gland, nothing to seal on site, nothing to corrode. RS-232 rather than bare UART lets the receiver talk directly to industrial controllers, marine electronics and existing vehicle systems over long cable runs, with no level converter in a junction box. In the field it runs on PoE or on a wide 9–36 V input that takes 12 V and 24 V vehicle, machinery and marine supplies directly; on the bench, 5 V over the same connector's USB line powers and configures it with no external supply at all. Operating from −10 °C to +60 °C and rated for high-pressure washdown, it mounts straight onto a mast, a roof, an implement frame or a wheelhouse — at a price normally reserved for enclosure-less boards and indoor-grade units.
mosaic-H supported by PX4 Autopilot, Ardupilot, AgOpenGPS and other software, supporting GPS for Yaw aka Moving Baseline.
Available in stock (>10 pcs)
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B Consultation1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
Using dual-antenna input, the receiver delivers precise and reliable heading combined with centimeter-level RTK positioning. Heading & pitch or heading & roll information is available immediately from start-up, removing reliance on movement and aiding the initialization of INS solutions. It also provides an alternative to magnetometer-based heading sensors, which can be affected by nearby metal.
AIM+: Advanced Interference Monitoring and Mitigation, offers built-in protection against intentional and unintentional jamming and spoofing using a sophisticated system of sampling and mitigation mechanisms.
In robotic devices neighboring electronics can produce RF radiation which interferes with GNSS signals. AIM+ offers protection against such interference resulting in faster set-up time and robust continuous operation.
Advanced Receiver Autonomous Integrity Monitoring (RAIM+) comprises fault detection mechanisms of the receiver at all the levels including the generation of measurements, quality control and navigation algorithms. Detected faulty measurements, which are typically caused by high multipath or active ionosphere, are removed from the solution.
Activity in the ionosphere is a problem for GNSS signals, from loss of RTK fix to total loss of signal lock. Having honed our skills, supporting applications in the most iono-active areas on Earth, the result is IONO+: the most advanced protection against ionospheric disturbances to GNSS signals on any receiver.
- Outside Industrial PI67 device

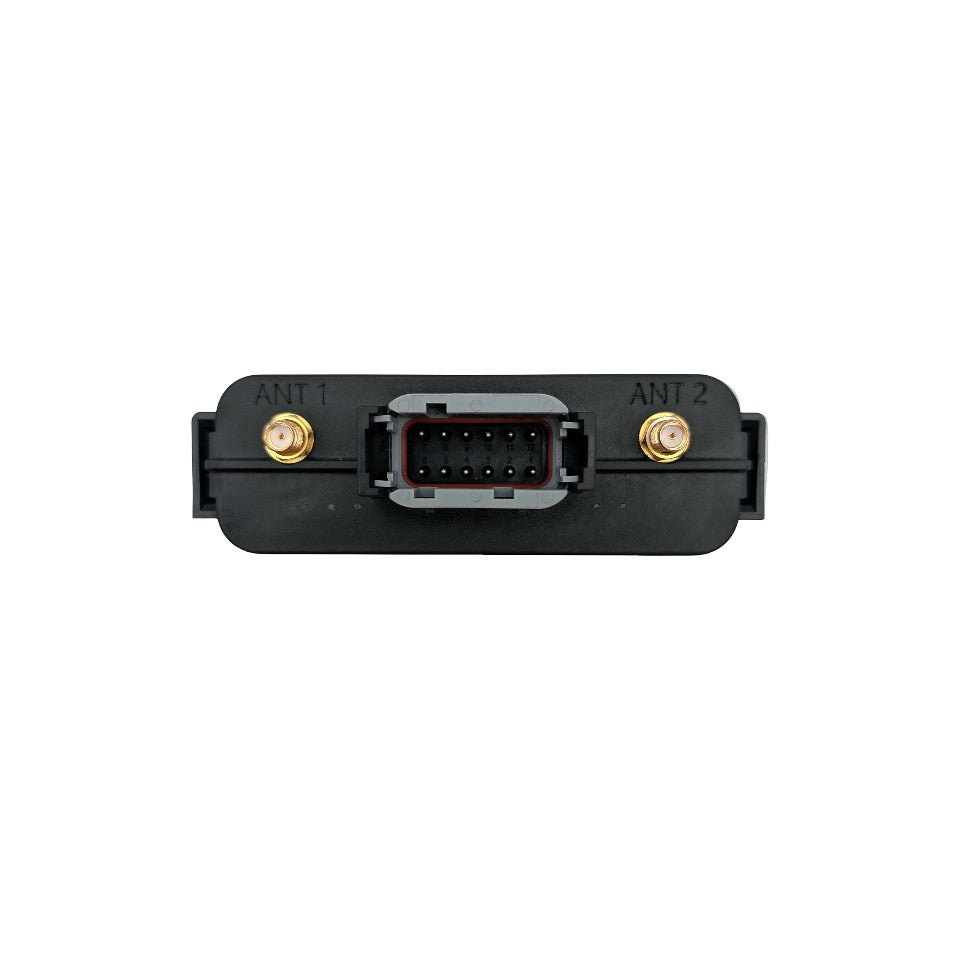

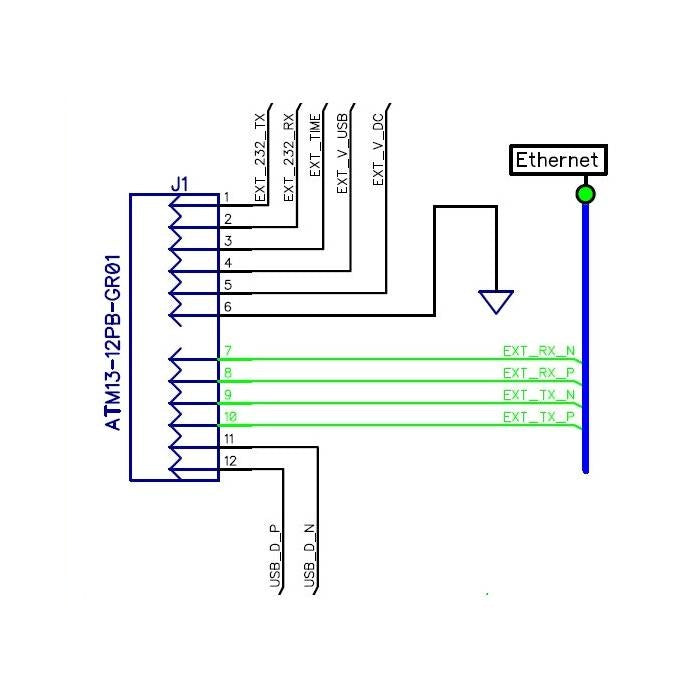

- Industrial 12 pin connector.
- 1 meter engineering or utility cable. Custom modifications are available.
- Powered by PoE, 9-36V, USB or 5V
- Passive PoE is IEEE 802.3af-2003 compatible
- Ethernet with Power over Ethernet support

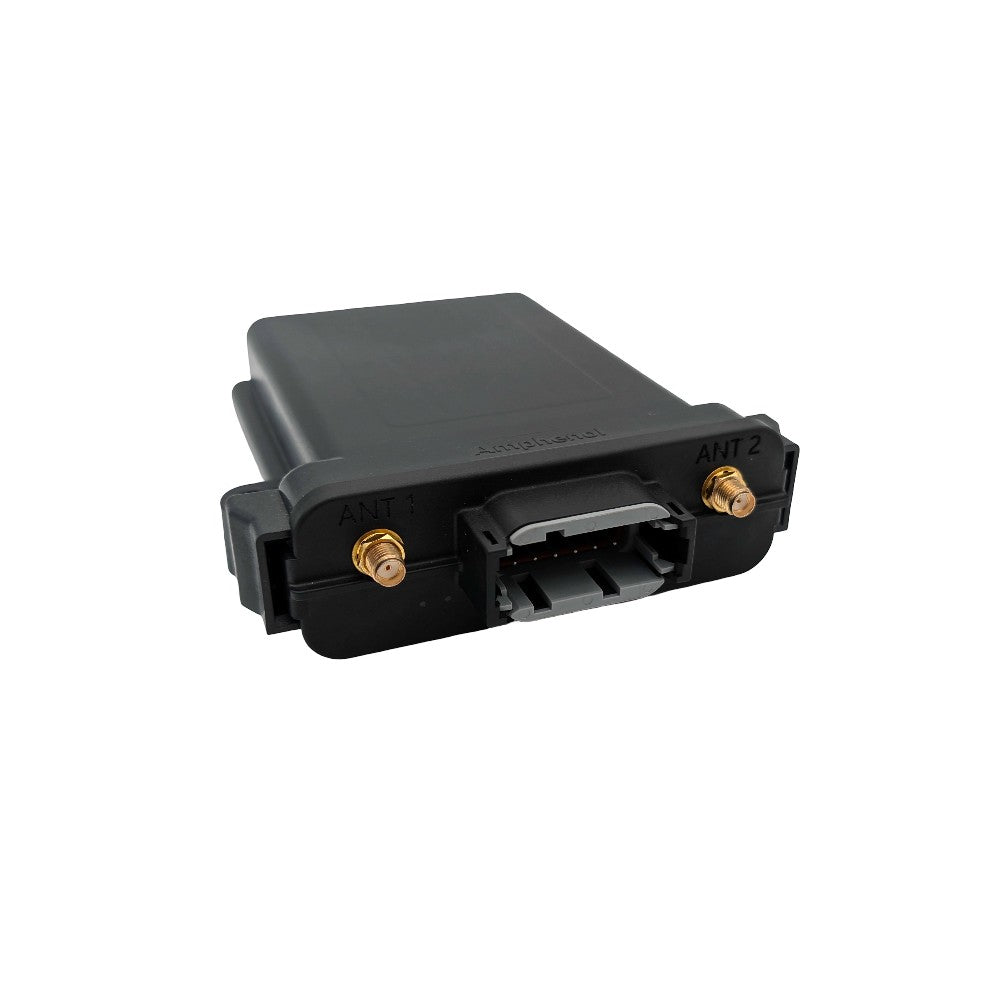

- Two antenna inputs with SMA connectors
- USB
- RS-232
- 32GB SD card inside for data logging.
- PPS output
- RJ-45, DB-9, USB-C, SMA for PPS on engineering cable
- Purple Power LED, Green Ethernet LINK, Red PVT LED (GPLED), Orange RTK LED (GPLED2). GPLED/GPLED2 functions are configured in the receiver
- RxTools Control and Analysis Software
- Extensive visualization and evaluation features

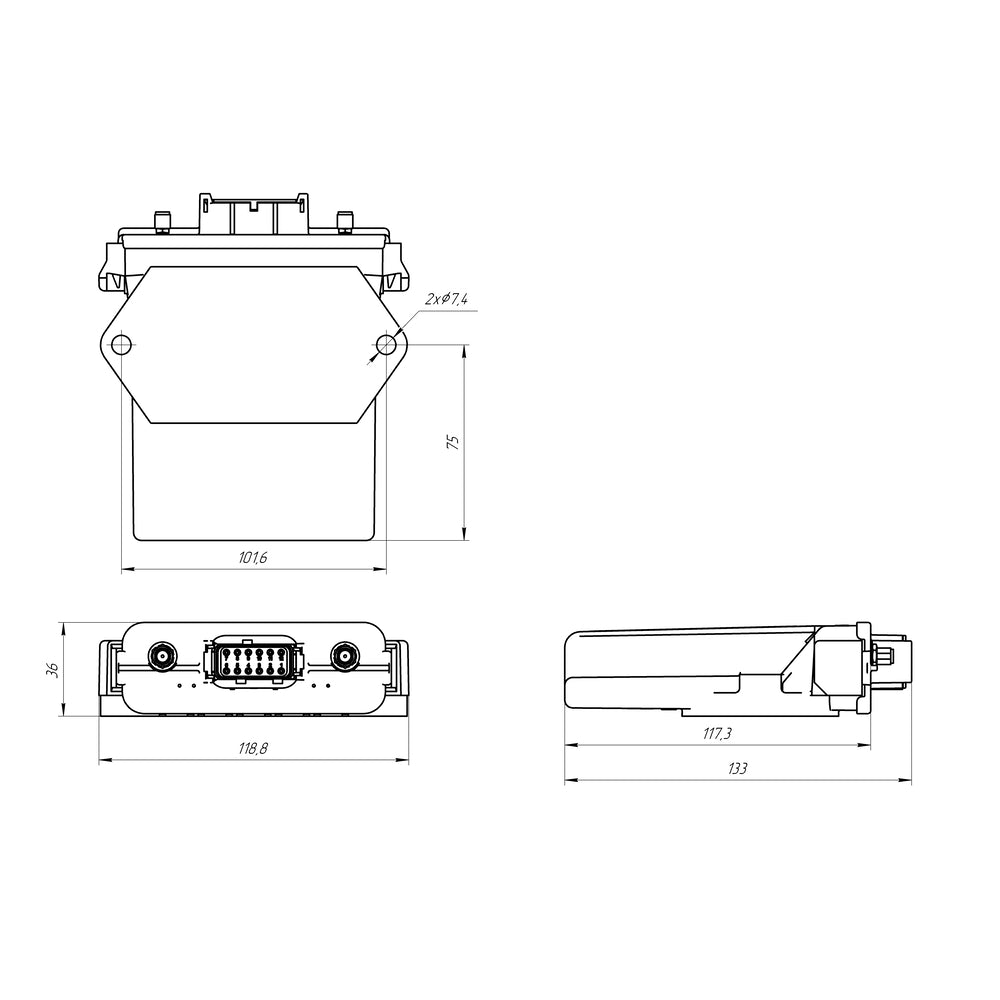

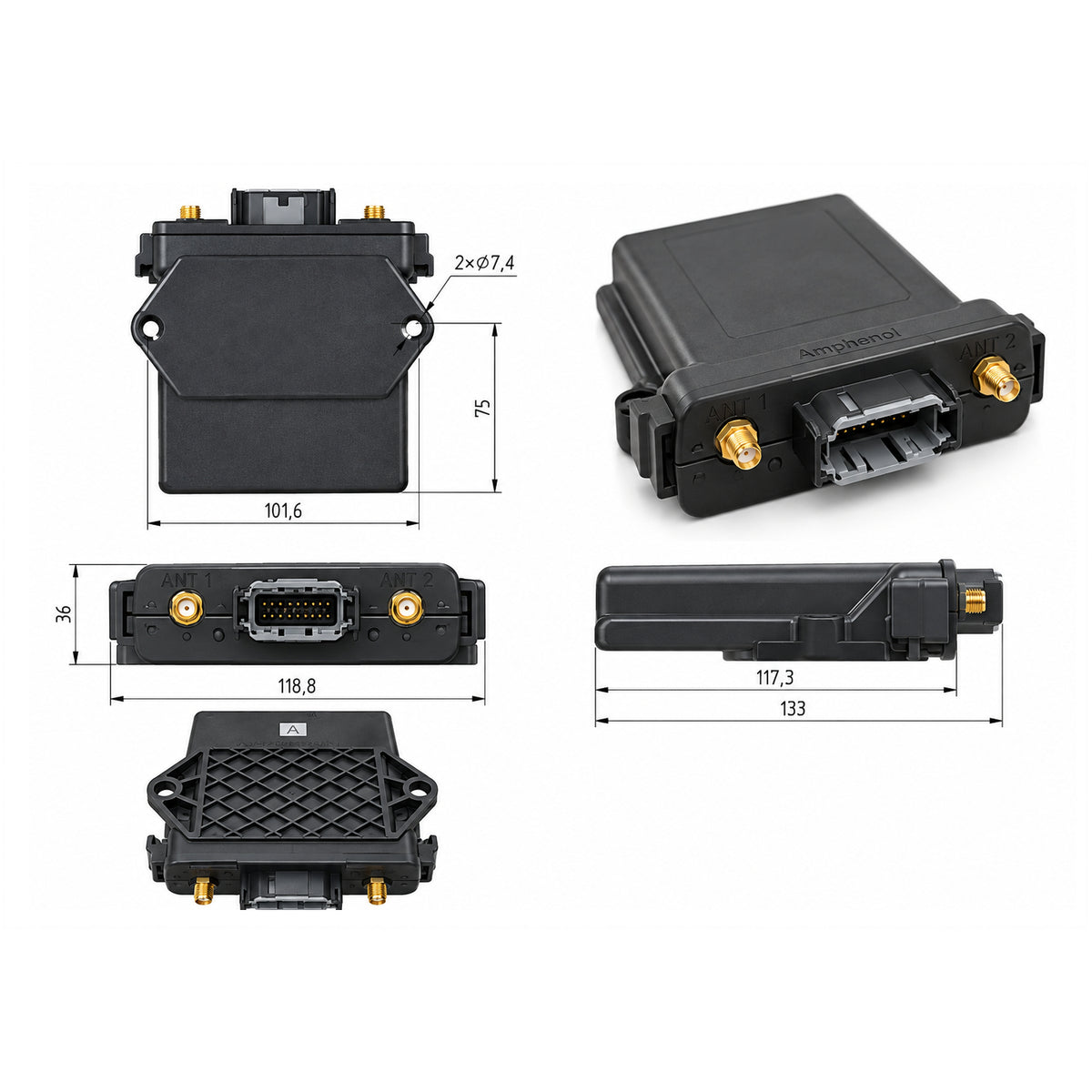

- Dimensions: 133.0 × 118.8 × 36.0 mm
- Weight: 250 g
- Work temperature: -40 °C ~ +60 °C

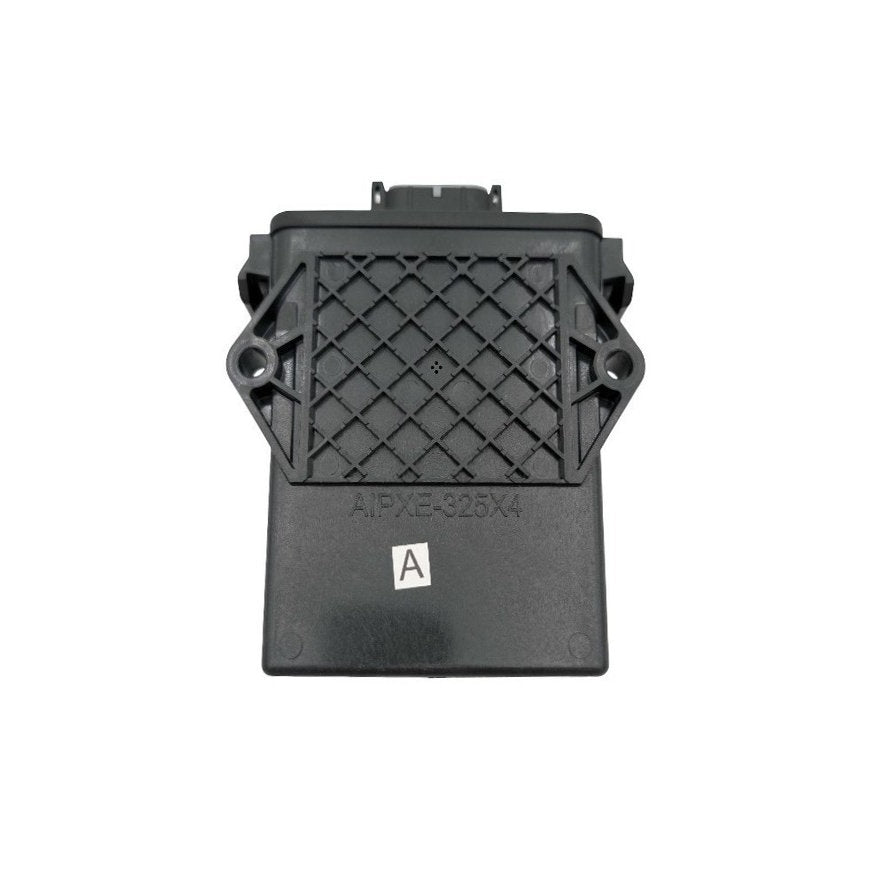

- Mounting method: screw mounting
- Fully assembled, tested and ready to use
WARNING: RX and CTS inputs shall not be driven while input supply not present.
Kit content:
- mosaic-H INDUSTRIAL dual-channel receiver
- Mating connector for self-made cable
