M21 Mic RTK with IMU GNSS receiver
M21 Mic RTK with IMU GNSS receiver
Tax excluded
Mic Form Factor features:
- Allows you to reuse expensive LGA component, if something goes wrong
- Takes care of all the RF complexity so you only need to connect antenna directly to the module
- Solder by hand M20 LGA module
- Upgrade you existing design of NEO-F10N Micro, ZED-F9P Micro, Unicore Micro or Septentrio mosaic Micro module.
M21 Deeply coupled IMU All-constellation Multi-frequency High Precision RTK GNSS receiver.
M21 is Bynav new-generation proprietary high-precision RTK positioning module based on the Alice 22nm high performance automotive SoC, designed on the basis of ISO26262 ASIL B functional safety. The module supports GPS L1C/A/L1C/L2/L5, BDS B1l/B2l/B3l/B1C/B2a/B2b, GLONASS G1/G2, Galileo E1/E5a/E5b/E6, QZSS L1/L2/L5/L6(CLAS), NavIC L5, SBAS L1C/A and L-band. The built-in anti-interference and anti-deception technologies enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as satellite signal interference and loss. Relying on the excellent performance, M21 is well suited for autonomous driving, lane-level navigation, drones and robots.
Available in stock (>10 pcs)
Couldn't load pickup availability
Product Features
Product Features

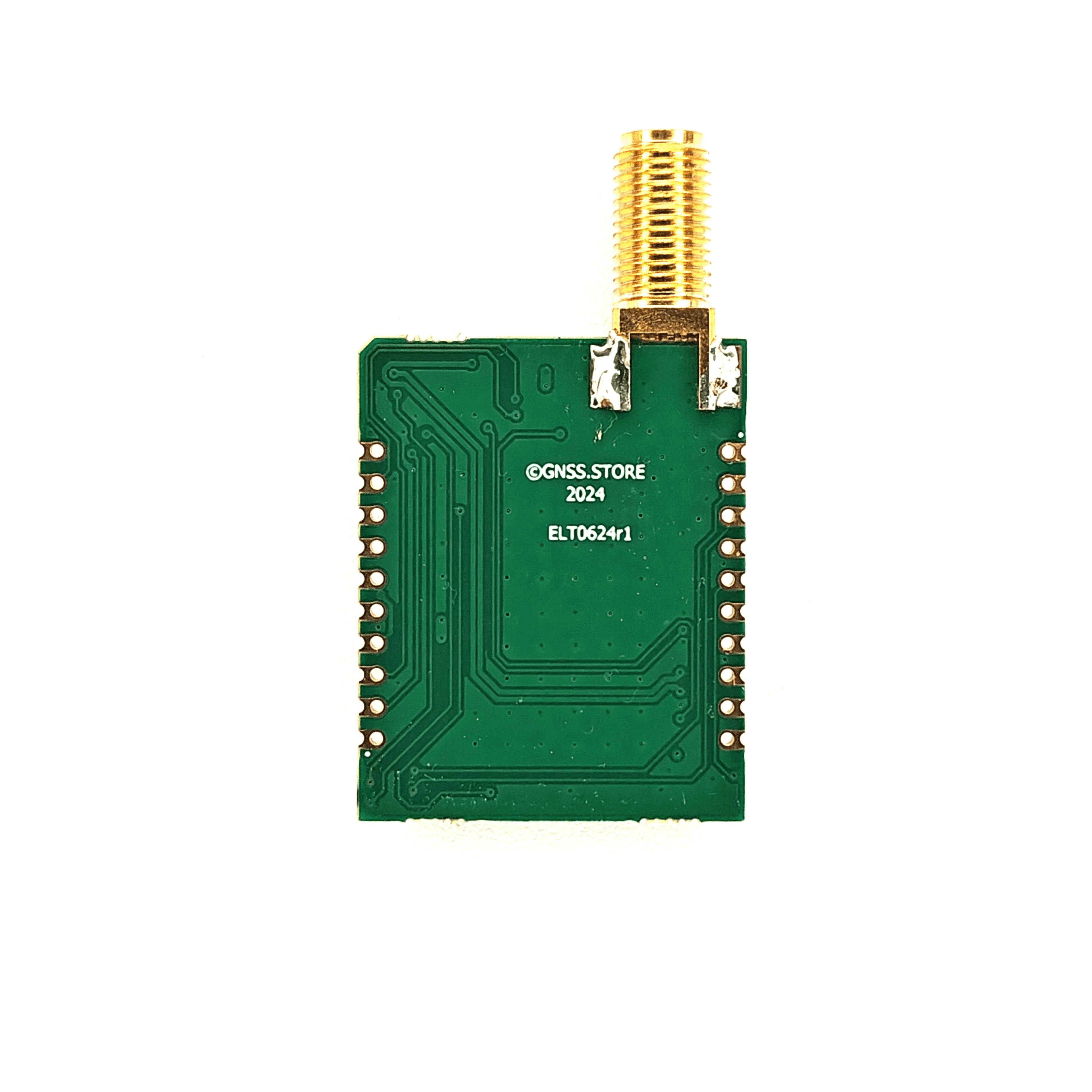

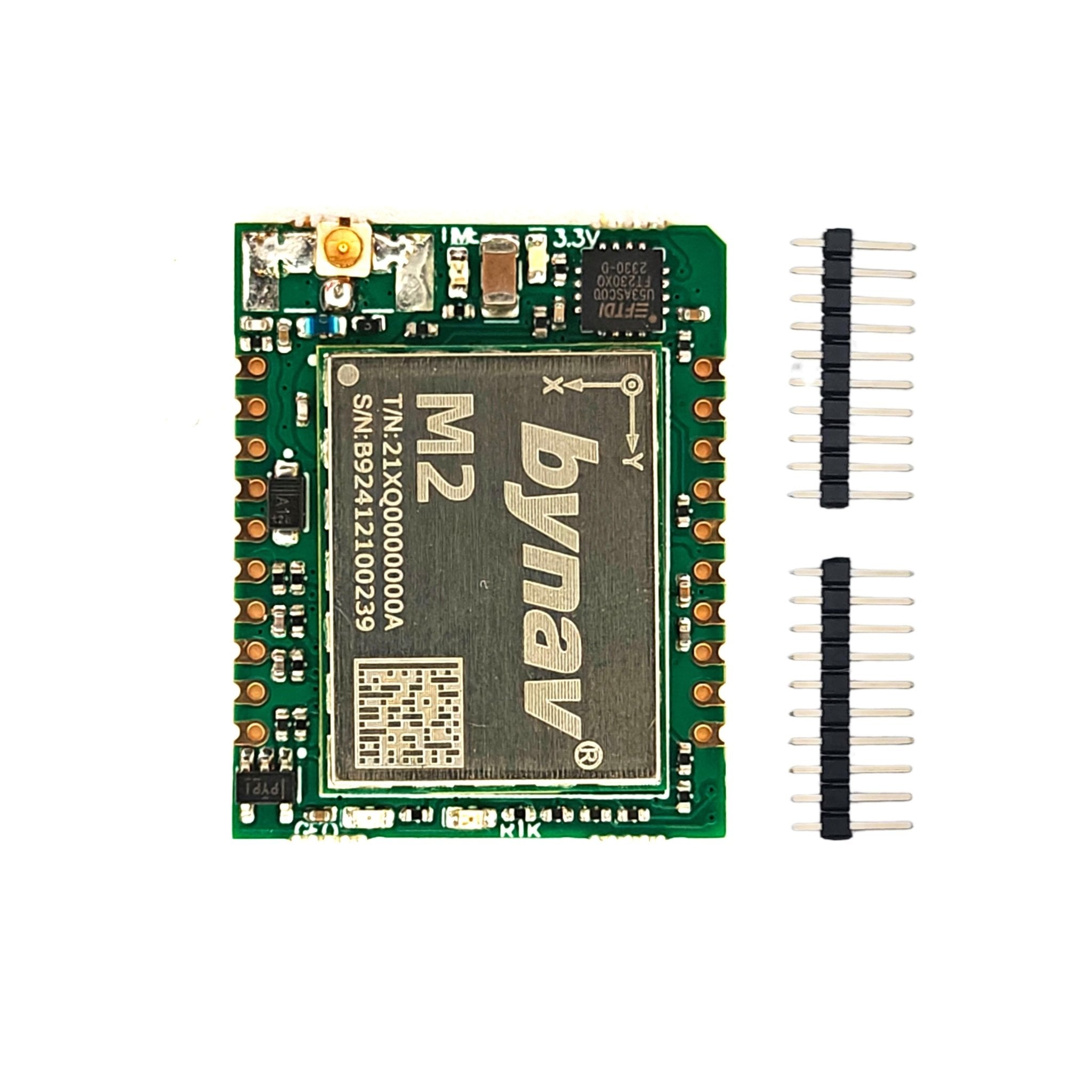

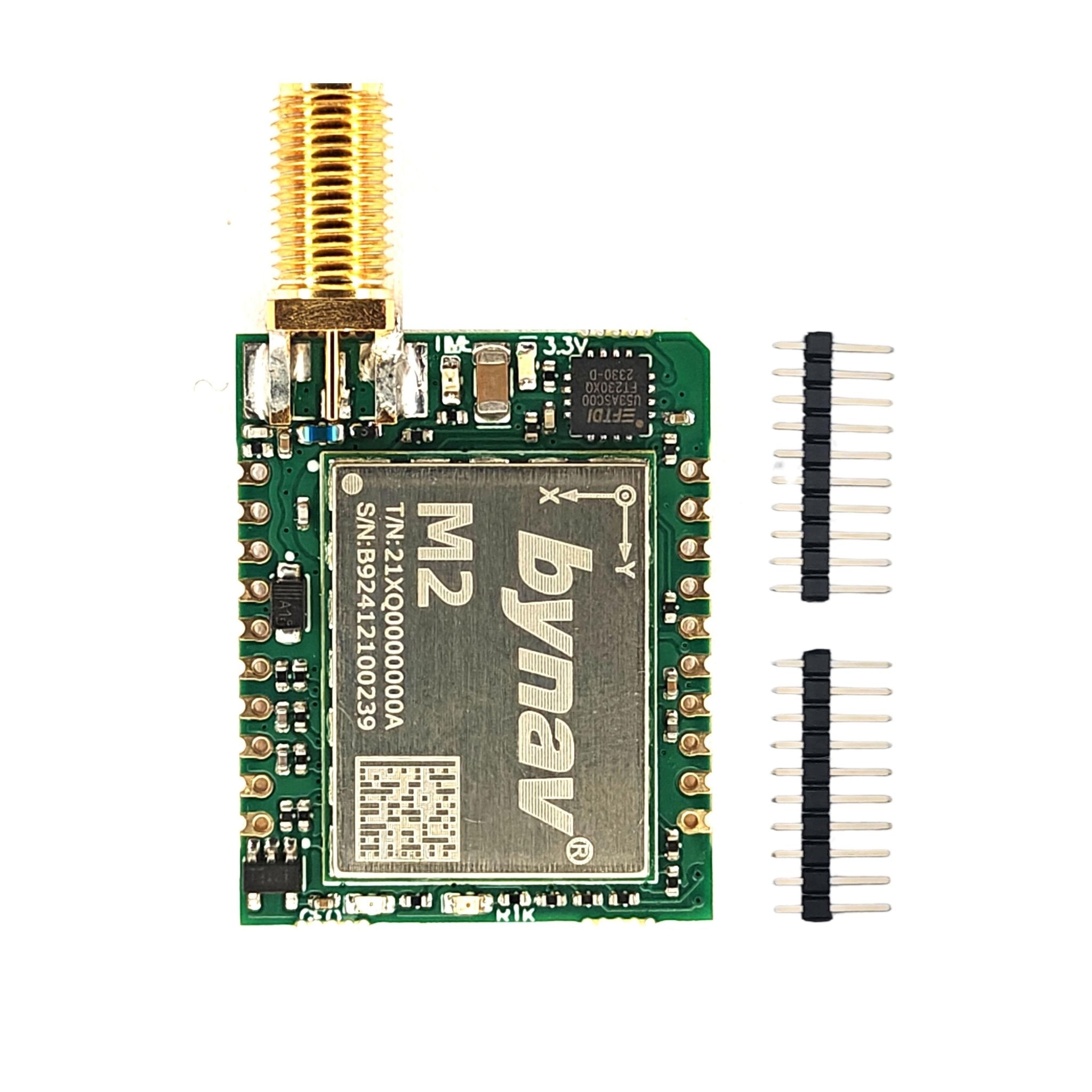

- Antenna input with SMA or IPEX connector

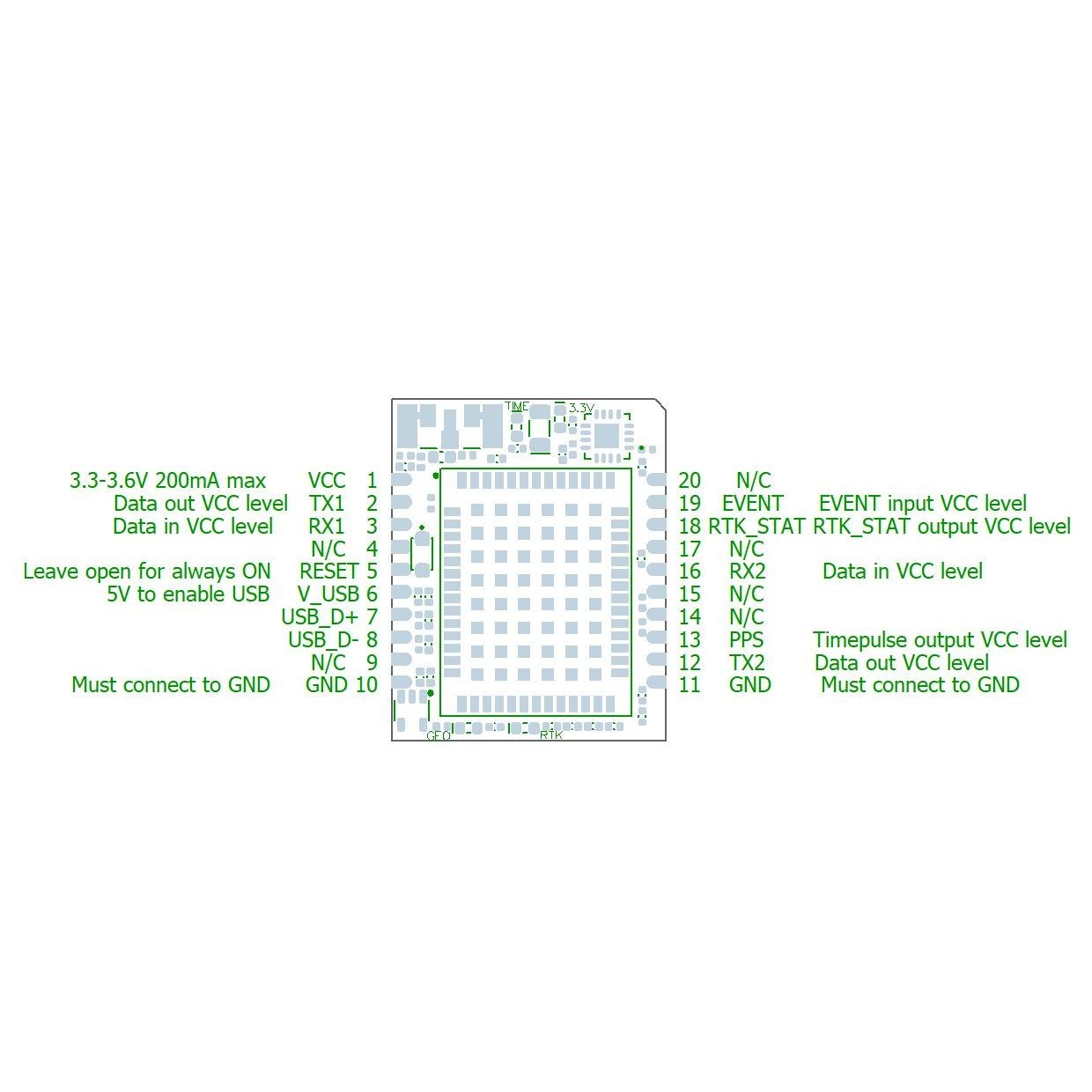

- USB and 2 UART (Tx, Rx) interface
- Time pulse LED, Power LED, RTK LED, Geofence LED
- BY_Connect Bynav Evaluation Software
- Extensive visualization and evaluation features
- Dimensions 24.5x33.5 mm
- Weight: 10 gr.
- Fully assembled and ready to use
- Compatible with AgOpenGPS TeensyModules
Board can be used for a Base or Rover operation mode!
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| Mic Form Factor features:
M21 Deeply coupled IMU All-constellation Multi-frequency High Precision RTK GNSS receiver. M21 is Bynav new-generation proprietary high-precision RTK positioning module based on the Alice 22nm high performance automotive SoC, designed on the basis of ISO26262 ASIL B functional safety. The module supports GPS L1C/A/L1C/L2/L5, BDS B1l/B2l/B3l/B1C/B2a/B2b, GLONASS G1/G2, Galileo E1/E5a/E5b/E6, QZSS L1/L2/L5/L6(CLAS), NavIC L5, SBAS L1C/A and L-band. The built-in anti-interference and anti-deception technologies enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as satellite signal interference and loss. Relying on the excellent performance, M21 is well suited for autonomous driving, lane-level navigation, drones and robots.
Board can be used for a Base or Rover operation mode! | Regular price
From €149,99
Sale price
From €149,99
Regular price
| ELTEHS |
Choose your option
M21 Mic RTK with IMU GNSS receiver
M21 Mic RTK with IMU GNSS receiver
Tax excluded
Available in stock (>10 pcs)
Mic Form Factor features:
- Allows you to reuse expensive LGA component, if something goes wrong
- Takes care of all the RF complexity so you only need to connect antenna directly to the module
- Solder by hand M20 LGA module
- Upgrade you existing design of NEO-F10N Micro, ZED-F9P Micro, Unicore Micro or Septentrio mosaic Micro module.
M21 Deeply coupled IMU All-constellation Multi-frequency High Precision RTK GNSS receiver.
M21 is Bynav new-generation proprietary high-precision RTK positioning module based on the Alice 22nm high performance automotive SoC, designed on the basis of ISO26262 ASIL B functional safety. The module supports GPS L1C/A/L1C/L2/L5, BDS B1l/B2l/B3l/B1C/B2a/B2b, GLONASS G1/G2, Galileo E1/E5a/E5b/E6, QZSS L1/L2/L5/L6(CLAS), NavIC L5, SBAS L1C/A and L-band. The built-in anti-interference and anti-deception technologies enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as satellite signal interference and loss. Relying on the excellent performance, M21 is well suited for autonomous driving, lane-level navigation, drones and robots.
- Antenna input with SMA or IPEX connector
- USB and 2 UART (Tx, Rx) interface
- Time pulse LED, Power LED, RTK LED, Geofence LED
- BY_Connect Bynav Evaluation Software
- Extensive visualization and evaluation features
- Dimensions 24.5x33.5 mm
- Weight: 10 gr.
- Fully assembled and ready to use
- Compatible with AgOpenGPS TeensyModules
Board can be used for a Base or Rover operation mode!
