UltraLight GNSS Smart Antenna for precision and RTK positioning
ZED-X20P ultraLight RTK GNSS Smart Antenna is a next-generation, ultra-lightweight RTK GNSS solution built around the powerful u-blox ZED-X20P module, integrated with a high-precision RM3100 compass and a compact helical antenna. It is purpose-designed for weight-sensitive UAVs, robotics, and mobile applications where every gram matters. Lightweight, powerful, and dependable — the ZED-X20P ultraLight RTK GNSS Smart Antenna is the ideal choice for next-generation UAVs, autonomous systems, and precision applications that demand uncompromised performance in a compact form factor.
Available in stock (>100 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
Overview
Device Features:
- Based on u-blox ZED-X20P GNSS module with integrated multi-band RF front-end and high-precision positioning engine
- Supports on-chip RTK and PPP positioning across all major constellations and multiple frequencies
- Advanced all-system multi-frequency RTK/PPP engine for robust centimeter-level accuracy
- Low Noise Amplifier (LNA) integrated with the compact helical antenna
- High Gain: 28 dB typ. from antenna
- Axial ratio: 3 dB max.
- Tight Phase Center Variation (PCV)
- Power supply: 5 VDC
- One optional UART
- Integrated 3-axis digital compass sensor RM3100 for accurate heading and orientation
Physical Characteristics:

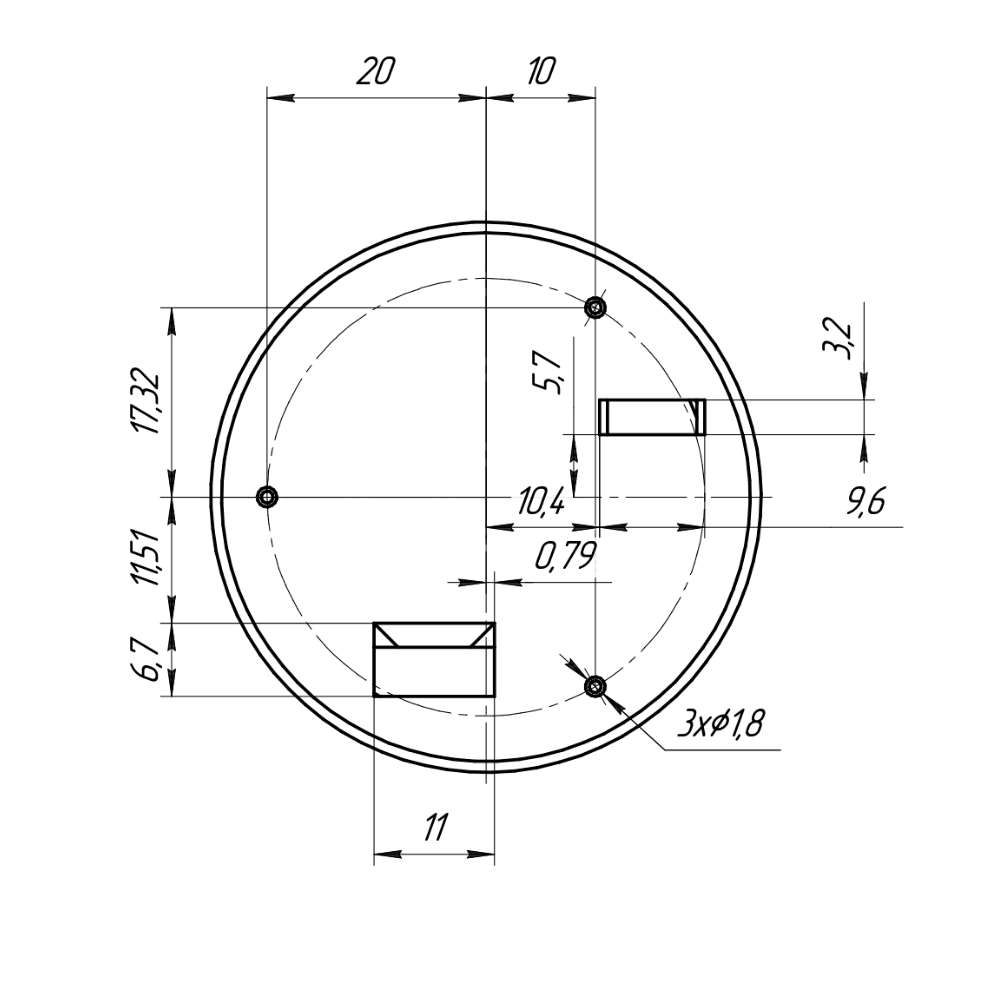

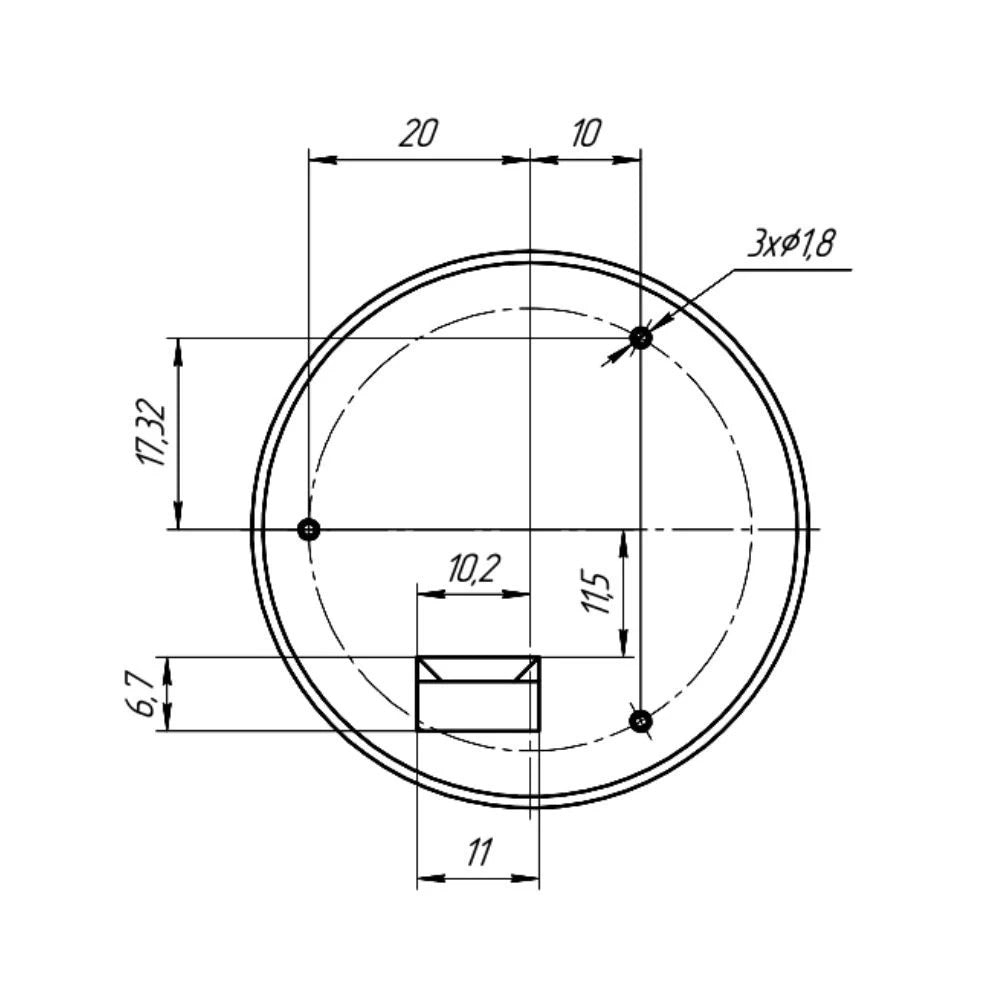

- Dimension: Ø50x41 mm
- Weight: 34 gr.
- IP Rating: IP55
- Operating Temperature: -10 °C ~ +60 °C

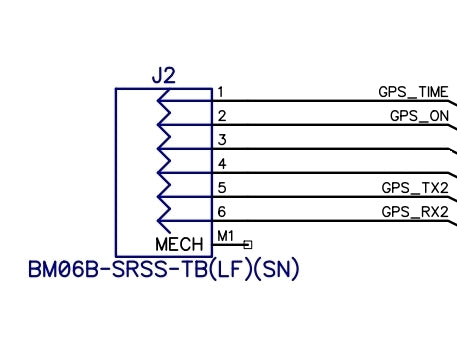

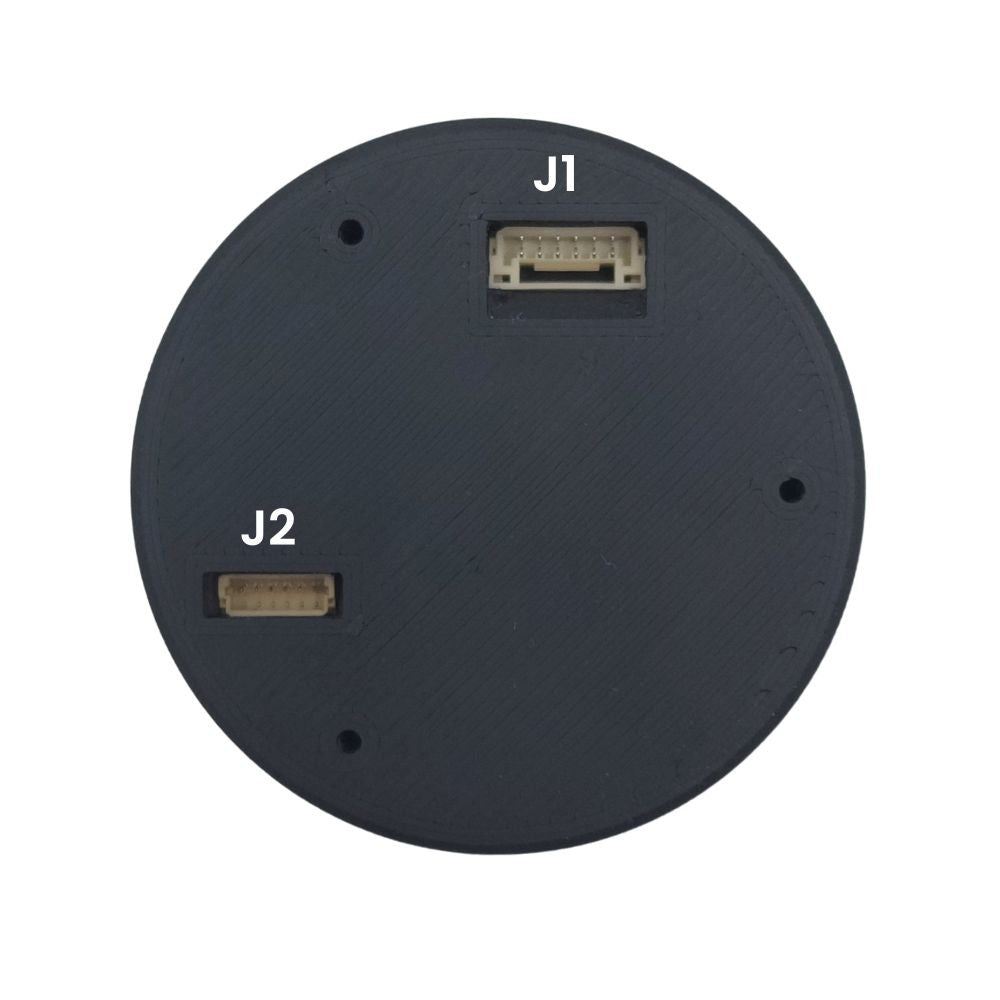

- Connector type: JST SH 6 pin, JST GH 6 pin
- Mounting Options: Waterproof 3M double-sided tape, Screw mount
- Kit: Smart antenna, Waterproof 3M double-sided tape, 3 screw
- RoHS & Reach Compliant
- Fully assembled, tested, sealed, and ready for use
Kit included:
- Smart antenna – 1 piece
- Cable JST GH 1.25 6 pin to 6 pin 200mm – 1 piece
- Cable JST SH 1.0 6 pin to 6 pin 100 mm – 1 piece
- Waterproof 3M double-sided tape – 1 piece
- Screws 2.5x6 – 3 pieces
