Product Features

72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C
SuperSense Indoor GPS, -167dBm
On-board low noise 3.3V voltage regulator and RF filter for noise blocking
USB, I2C, SPI and UART (Tx, Rx) RAW data out available
Support active antenna
u-center Evaluation Software
Extensive visualization and evaluation features
Supports AssistNow Online and AssistNow Offline A-GPS services
Time pulse LED 1
Time pulse LED 2
Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
Supercapacitor for HOT module start
Wire Pad for external backup battery
Dimensions 32x19 mm
Weight: 2.5 gr.
Fully assembled and ready to use
Can be easy mounted in your case by double sided tape

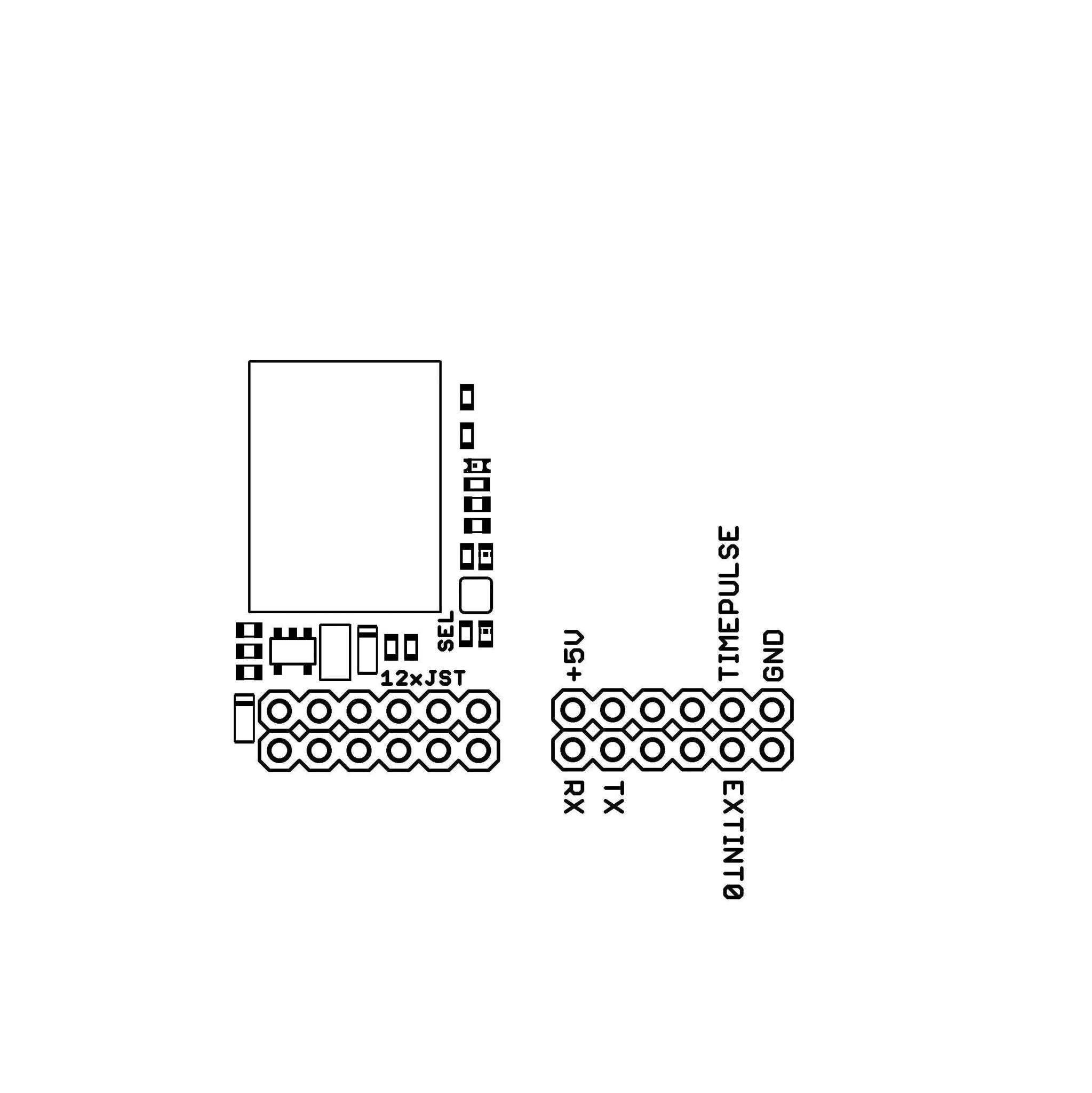

Pin holes for easy soldering 2.54mm pitch
Output avail for use Time Pulse 1, Time Pulse 2, Interupt 0, Interuprt 1, all pins for SPI, UART, USB, I2C interfaces

NEO-M8N Module Specifications

General Description:

72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C (NEO-M8N)
Position accuracy 2.0 m CEP
Acquisition
- Cold starts: 26 s
- Aided starts: 2 s
- Reacquisition: 1.5 s
Sensitivity
- Tracking & Nav: –167 dBm
- Cold starts: –148 dBm
- Hot starts: –156 dBm
Assistance AssistNow GNSS Online
AssistNow GNSS Offline (up to 35 days)
AssistNow Autonomous (up to 6 days)
OMA SUPL & 3GPP compliant
Oscillator TCXO
RTC crystal Built-In
Anti jamming Active CW detection and removal
Extra onboard SAW band pass filter
Memory Flash
Supported antennas Active and passive
Odometer Travelled distance
Data-logger For position, velocity, and time

Downloads

NDAA statement

Please log in to download the NDAA statement.

NEO-M8N InCase PIN series GPS GNSS receiver board for UAV, Robots UF.L antenna connector

Name: NEO-M8N InCase PIN series GPS GNSS receiver board for UAV, Robots UF.L antenna connector
Brand: U-blox
Price: 68.99 EUR
Availability: InStock

SKU: ELT0397

EAN: 4751046553970

Brand: U-blox

OEM Customization Available

B2B Wholesale pricing available

Get B2B Consultation

€68,99

Tax excluded

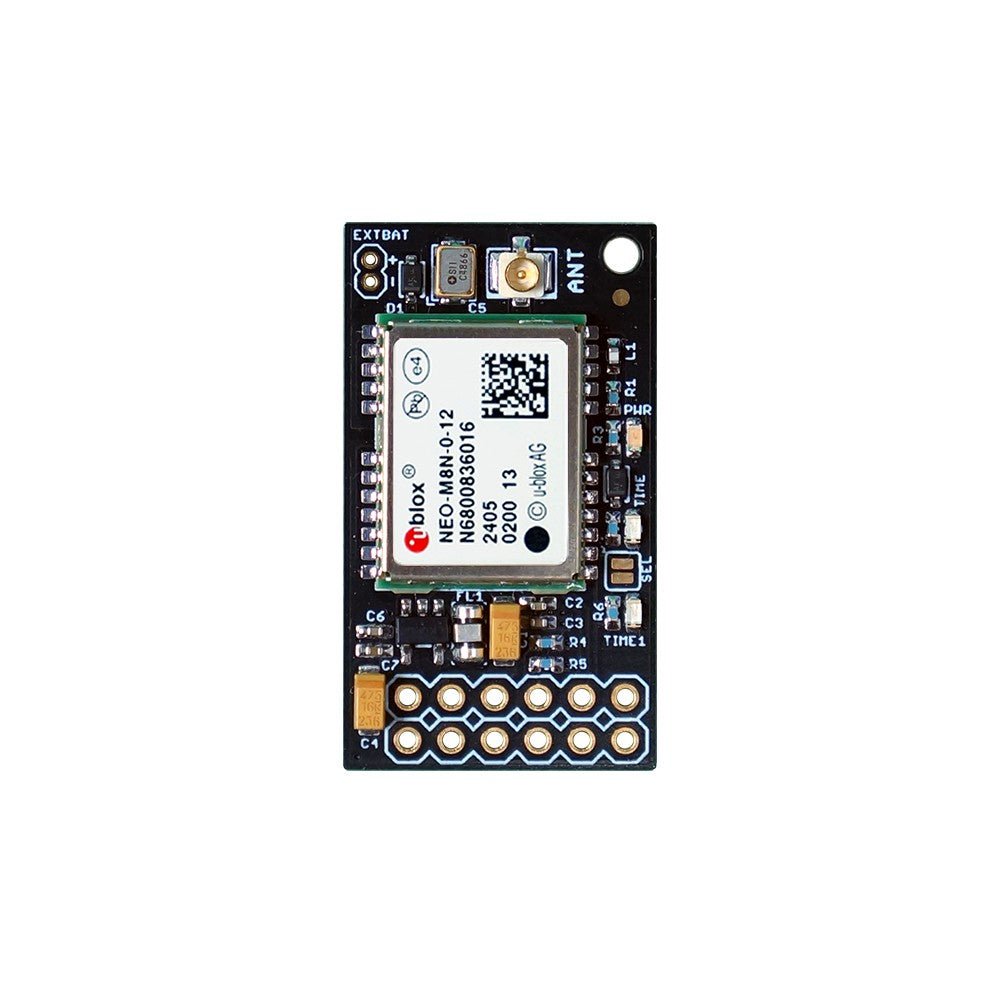

InCase series NEO-M8N Reference Board with UF.L antenna connectors for your UAV systems, Robots, RC, FPV or other projects. Designed for easy integration in your system.

The NEO-M8N Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M8N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M8N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M8N with SMA antenna connectors.

WARNING: When powering the device via an AC adapter, connect grounded antennas ONLY when the device is powered off.
