L1 IPEX (U.FL) 25mm Two Stage 33dB GPS/Glonass Active Patch Antenna Module
L1 IPEX (U.FL) 25mm Two Stage 33dB GPS/Glonass Active Patch Antenna Module
Regular price
€15,99
Sale price
€15,99
Regular price
Tax excluded

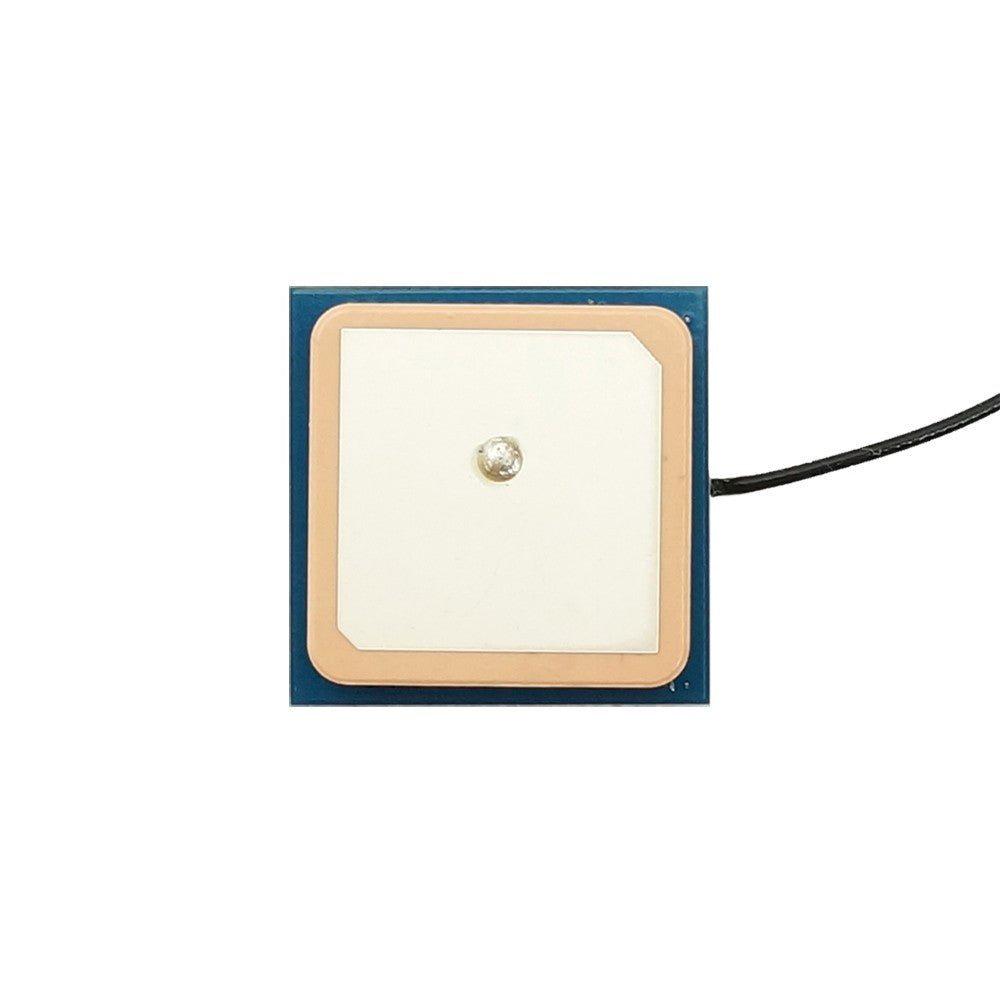

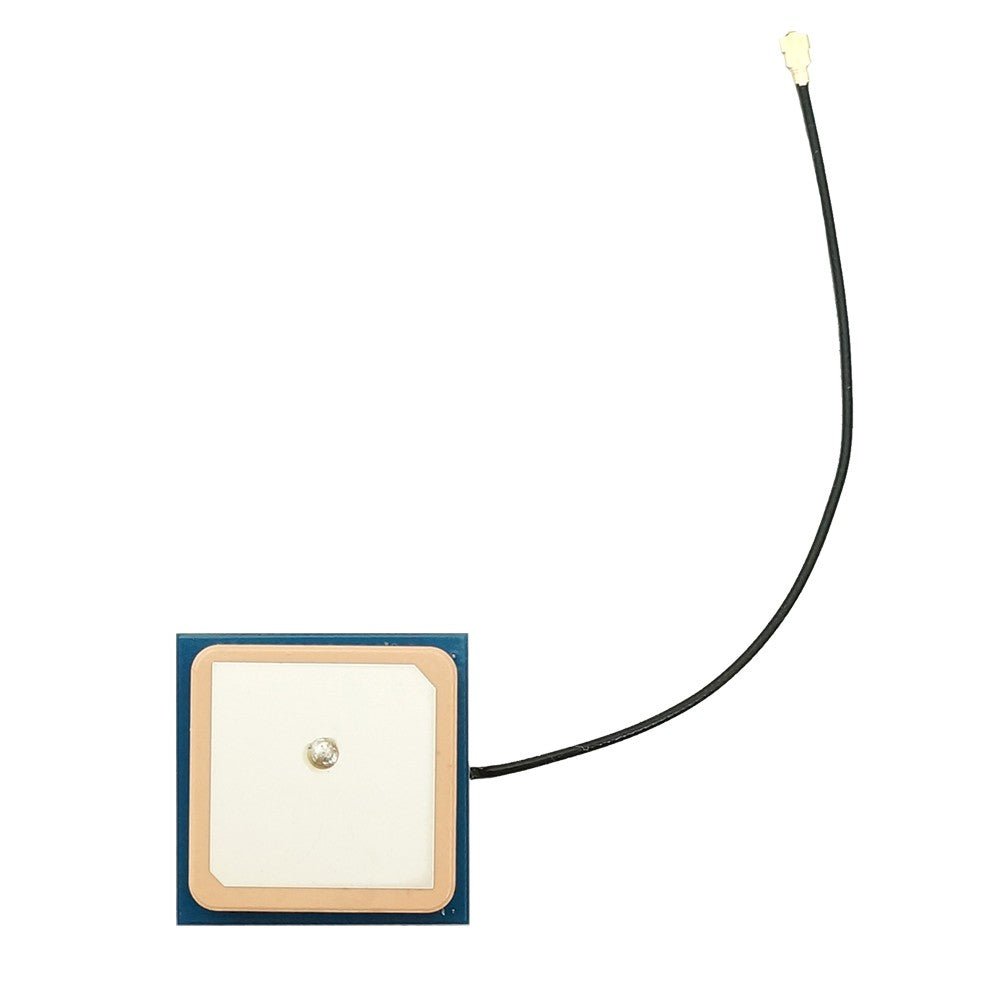

L1. IPEX (U.FL) 25mm Two Stage 33dB GPS/Galileo/Glonass/Beidou/SBAS/QZSS Active Patch Antenna Module.
The 25mm active patch antenna module has been designed specifically for embedded (inside device) integration with GPS/Glonass receiver modules. The antenna combines a 25x25mm advanced low profile ceramic patch antenna with a two stage LNA and a front-end SAW filter with ultra thin coaxial cable.
Please log in to download the datasheet.
Available in stock (>100 pcs)
🛡️
Warranty
1 Year Limited Warranty
↩️
Returns
14-day hassle-free returns
⚙️
Support
Lifetime technical support
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Related categories
Couldn't load pickup availability
Product Features
Product Features
Patch antenna characteristics:
- Frequency: L1/B1/E1 1575.42MHZ G1 1602MHz
- Gain: 2dBi
- VSWR: <1.5
- Impendance: 50 Ohm
- Polarizacion: RHCP
- Axis Ratio: <3dB
- Horizontal angle: 360deg
Signal Received:
- GPS L1
- GLONASS G1
- GALILEO E1
- BDS B1I/B1C
- SBAS L1
- QZSS L1
LNA Specifications:
- LNA Gain: 33dB
- Noise Figure: <2dB
- Output Impendance: 50 Ohm
- Supply Voltage: 2.8-5V
- Supply current: <20mA
Mechanical Data:
- Dimensions: 28x28x7mm (Ground Plane)
- Weight: 14 gr.
- Connector: IPEX (U.FL)
- Cable length: 50mm Ø1.13 cable
- Mounting: double sided 3M tape
