UM982 Dual Channel RTK InCase PIN GNSS receiver board
UM982 Dual Channel RTK InCase PIN GNSS receiver board
Tax excluded
UM982 dual channel all-constellation multi-frequency high precision RTK GNSS receiver.
UM982 is Unicore’s new-generation proprietary high-precision RTK positioning and heading module based on the Nebulas IV SoC which integrates RF, baseband and high-precision algorithm. Its main and secondary antenna inputs can simultaneously track multiple frequencies of all GNSS systems, and the module can perform on-chip RTK positioning and dual-antenna heading calculations. The built-in multi-frequency anti-jamming technology enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as city blocks and tree shades. Featuring the extraordinary positioning performance and reliability, UM982 is a perfect choice for high-precision navigation and positioning applications, such as UAV, autonomous machine and precision agriculture. Board can be used for a Base, Rover or Heading operation mode.
UM982 supported by PX4 Autopilot, Ardupilot, AgOpenGPS and other software, supporting GPS for Yaw aka Moving Baseline.
Available in stock (>10 pcs)
Couldn't load pickup availability
Product Features
Product Features

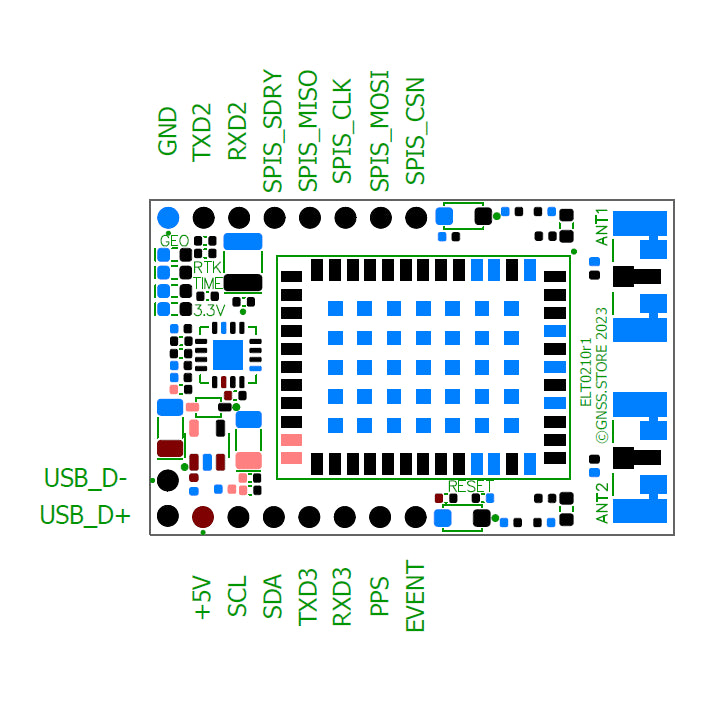

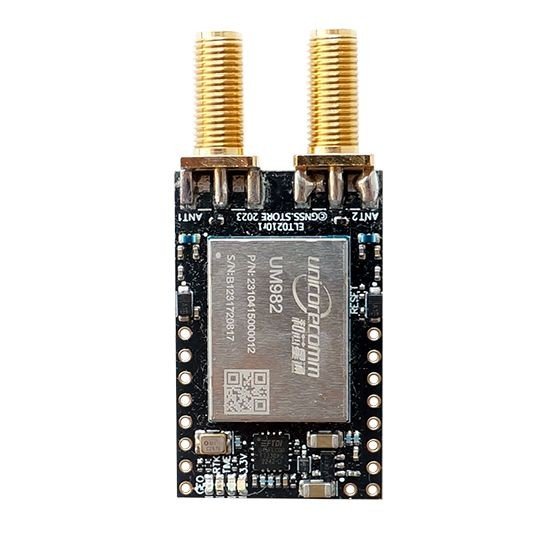

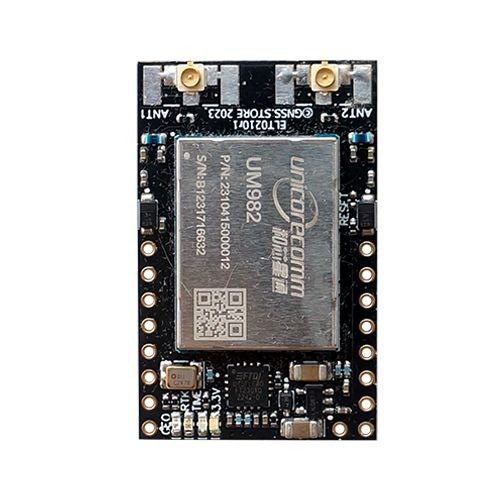

- Two antenna inputs with SMA or IPEX connectors
- On board low noise 3.3 V voltage regulator
- USB, SPI*, I2C* and 2 UART (Tx, Rx) interface
- Purple Power LED, green Time pulse LED, red PVT LED, orange RTK LED
- Extensive visualization and evaluation features
- Backup supercapacitor
- Dimensions 24x38 mm
- Weight: 10 gr.
- Fully assembled and ready to use
UM982 Module Specifications
UM982 Module Specifications
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| UM982 dual channel all-constellation multi-frequency high precision RTK GNSS receiver. UM982 is Unicore’s new-generation proprietary high-precision RTK positioning and heading module based on the Nebulas IV SoC which integrates RF, baseband and high-precision algorithm. Its main and secondary antenna inputs can simultaneously track multiple frequencies of all GNSS systems, and the module can perform on-chip RTK positioning and dual-antenna heading calculations. The built-in multi-frequency anti-jamming technology enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as city blocks and tree shades. Featuring the extraordinary positioning performance and reliability, UM982 is a perfect choice for high-precision navigation and positioning applications, such as UAV, autonomous machine and precision agriculture. Board can be used for a Base, Rover or Heading operation mode. UM982 supported by PX4 Autopilot, Ardupilot, AgOpenGPS and other software, supporting GPS for Yaw aka Moving Baseline.
| Regular price
€159,99
Sale price
€159,99
Regular price
| ELTEHS |
Choose your option
UM982 Dual Channel RTK InCase PIN GNSS receiver board
UM982 Dual Channel RTK InCase PIN GNSS receiver board
Tax excluded
Available in stock (>10 pcs)
UM982 dual channel all-constellation multi-frequency high precision RTK GNSS receiver.
UM982 is Unicore’s new-generation proprietary high-precision RTK positioning and heading module based on the Nebulas IV SoC which integrates RF, baseband and high-precision algorithm. Its main and secondary antenna inputs can simultaneously track multiple frequencies of all GNSS systems, and the module can perform on-chip RTK positioning and dual-antenna heading calculations. The built-in multi-frequency anti-jamming technology enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as city blocks and tree shades. Featuring the extraordinary positioning performance and reliability, UM982 is a perfect choice for high-precision navigation and positioning applications, such as UAV, autonomous machine and precision agriculture. Board can be used for a Base, Rover or Heading operation mode.
UM982 supported by PX4 Autopilot, Ardupilot, AgOpenGPS and other software, supporting GPS for Yaw aka Moving Baseline.
- Two antenna inputs with SMA or IPEX connectors
- On board low noise 3.3 V voltage regulator
- USB, SPI*, I2C* and 2 UART (Tx, Rx) interface
- Purple Power LED, green Time pulse LED, red PVT LED, orange RTK LED
- Extensive visualization and evaluation features
- Backup supercapacitor
- Dimensions 24x38 mm
- Weight: 10 gr.
- Fully assembled and ready to use
