NEO-F9P-15B Multi-band L1,L5 RTK GNSS with LIS3MDL magnetometer and Helix antenna, for your UDR systems, UAV systems, Robots, RC, FPV or other projects.
NEO-F9P High Precision GNSS breakout PCB with LIS3MDL magnetometer, IPEX antenna connector, UPEX to SMA cable and L1,L5 Helix antenna. Multi-band receiver delivers centimeter-level accuracy in seconds. The NEO-F9P positioning module features the new u-blox receiver platform, which provides multi-band GNSS to high volume industrial applications in a compact form factor. NEO-F9P is a multi-band GNSS module with integrated u-blox multi-band RTK technology for centimeter-level accuracy. The module enables precise navigation and automation of moving industrial machinery by means of a small, surface mounted module. NEO-F9P module use L1,L5 GNSS bands, see L2 OR L5? article for more details.
The NEO-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. NEO-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies.
NEO-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need.
Available in stock (>100 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features

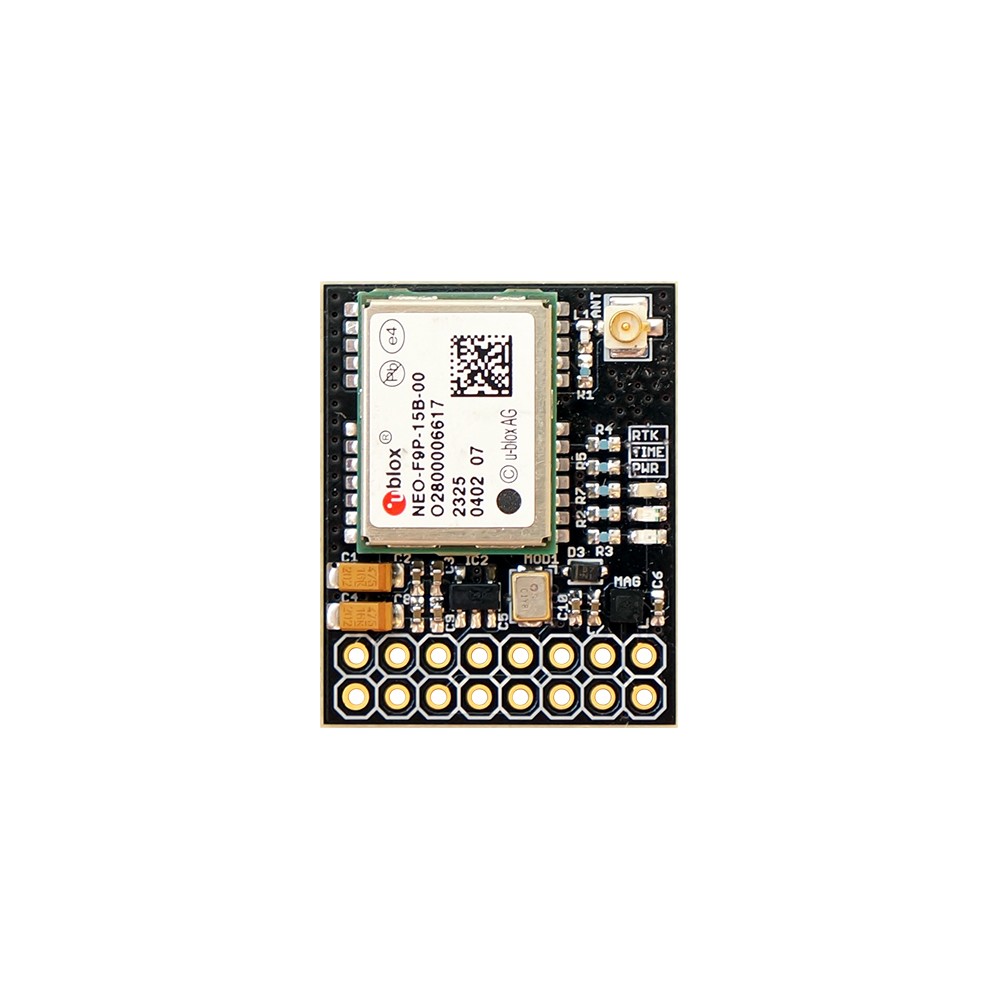

NEO-F9P breakout PCB features:
- 184-channel u-blox F9 engine GPS L1C/A L5, GLO L1OF, GAL E1B/C E5a, BDS B1I B2a, QZSS L1C/A L1S L5, SBAS L1C/A NavIC L5
- On-board low noise 3.3V voltage regulator

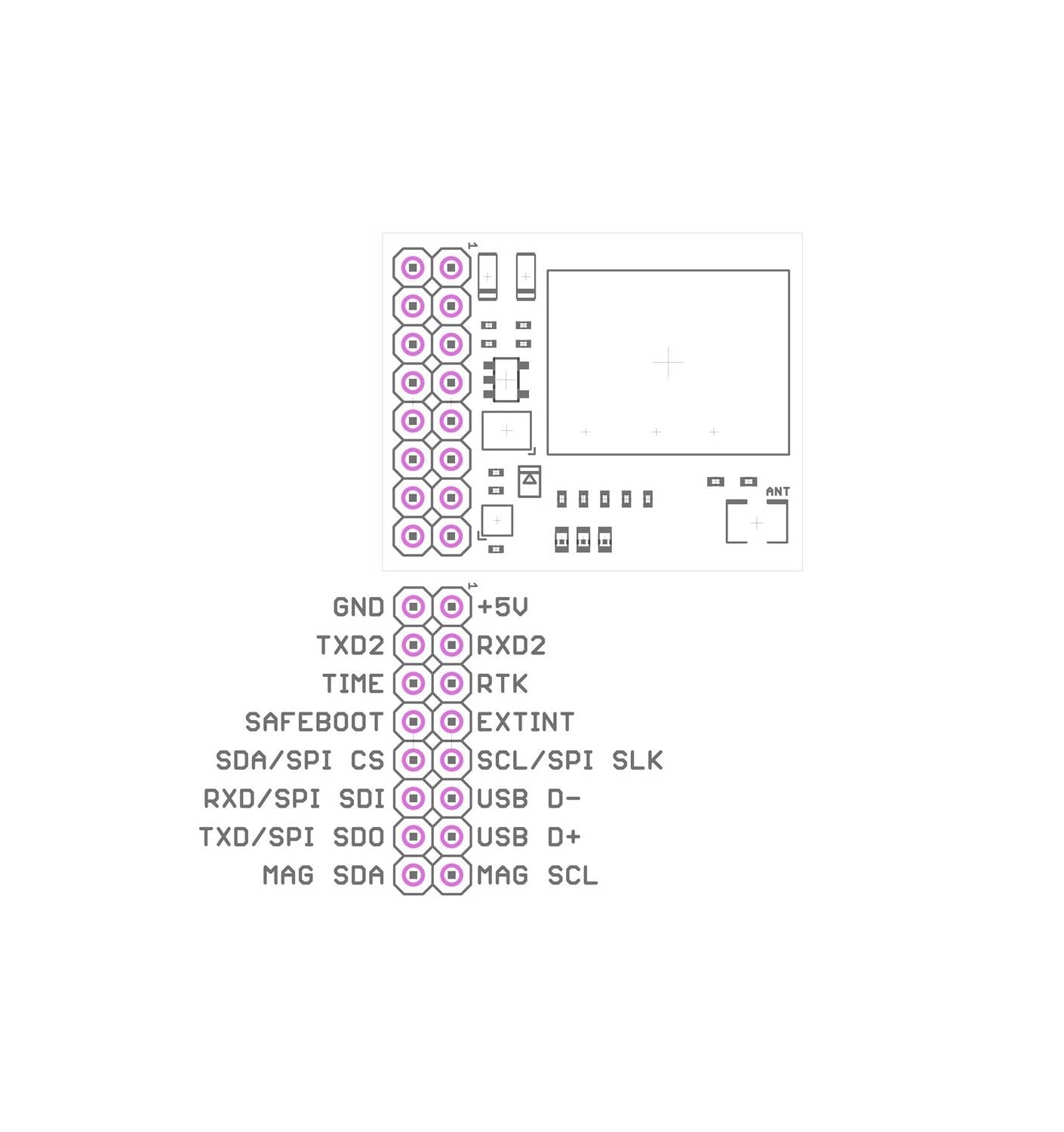

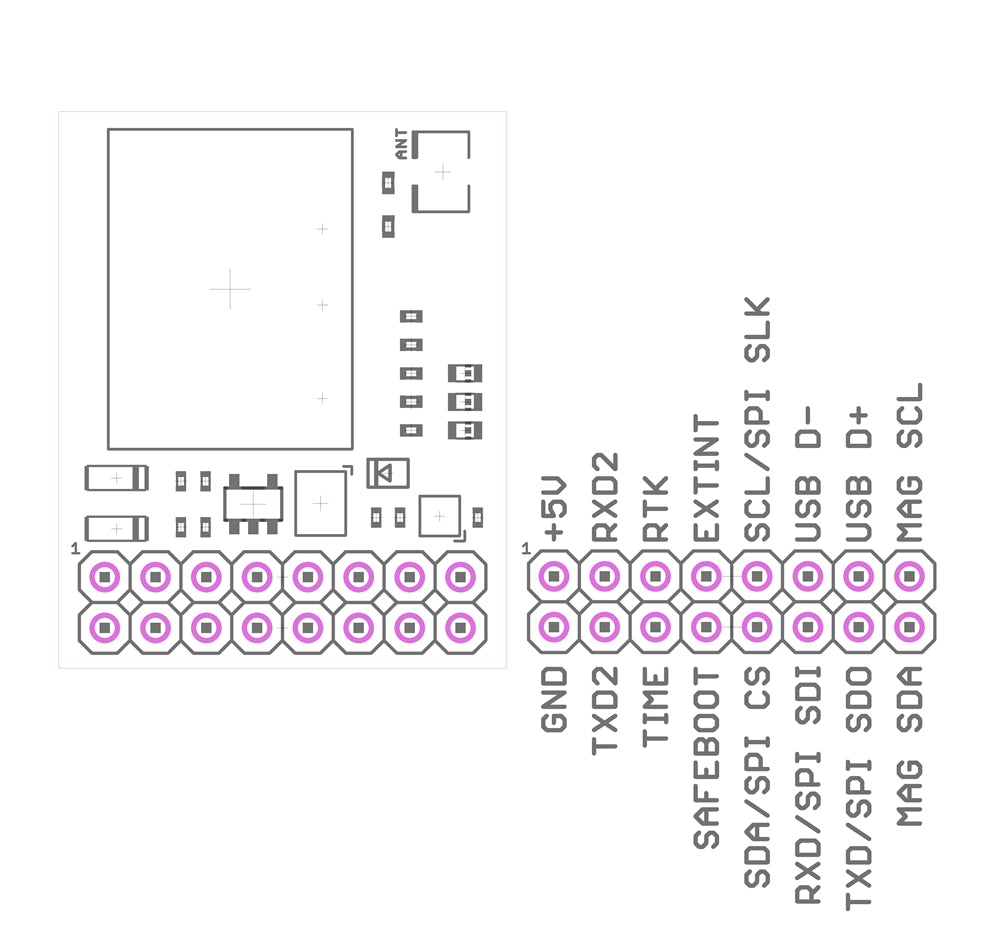

- 16 holes for easy connections to board with pitch 2.54mm
- USB, I2C (SDA, SCL), SPI and 2 UART (Tx, Rx) interface I2C compass interface
- Time pulse LED, Power LED, RTK LED
- U.FL antenna connector
- Support active antenna
- u-center ublox Evaluation Software
- Extensive visualization and evaluation features
- Backup supercapacitor
- Dimensions 28x23 mm
- Weight: 2,9 gr.
- Fully assembled and ready to use
- Pin to pin compatible with ELT0092 and ELT0128 boards
- Build in LIS3MDL magnetometer

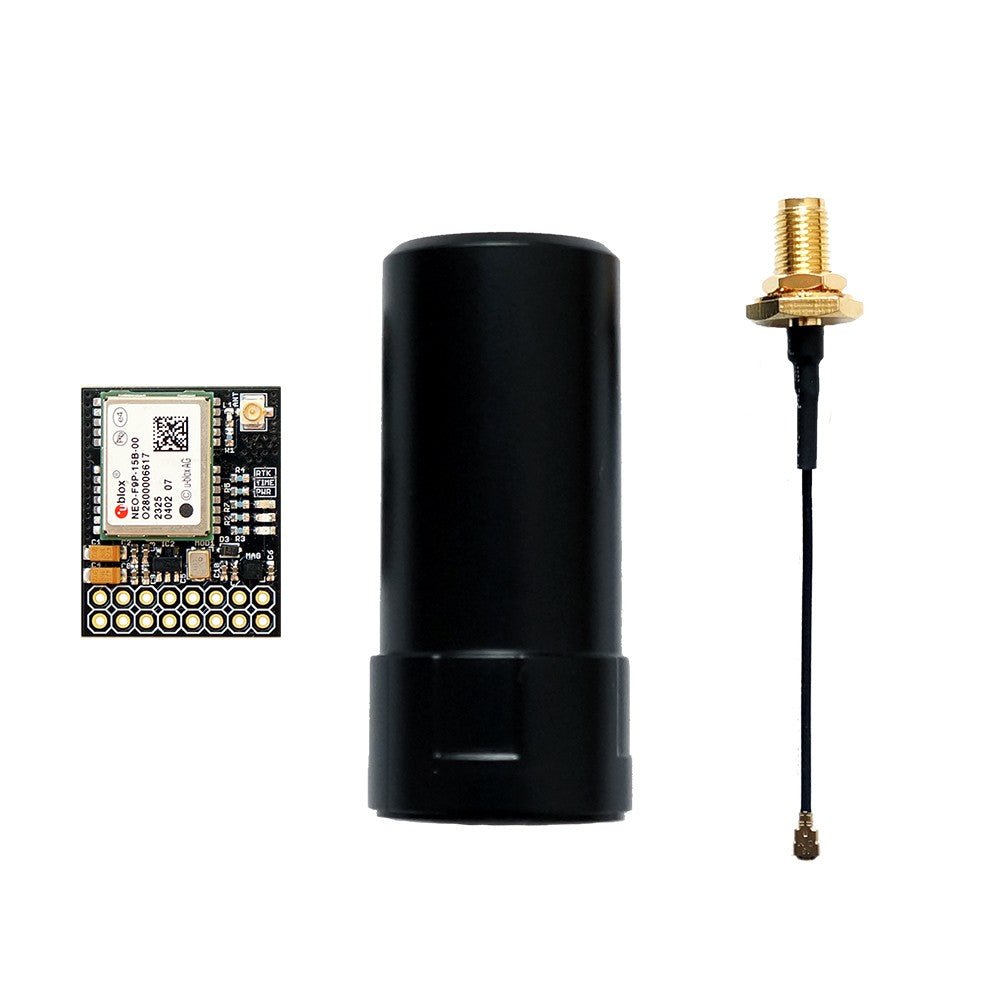

ELT0195 kit include:
- ELT0187 NEO-F9P-15B GNSS module with build in LIS3MDL magnetometer
- ELT0014 Helix antenna
- ELT0179 IPEX (U.FL) to SMA cable
ELT0187 board can be used for a Base or Rover operation mode!
